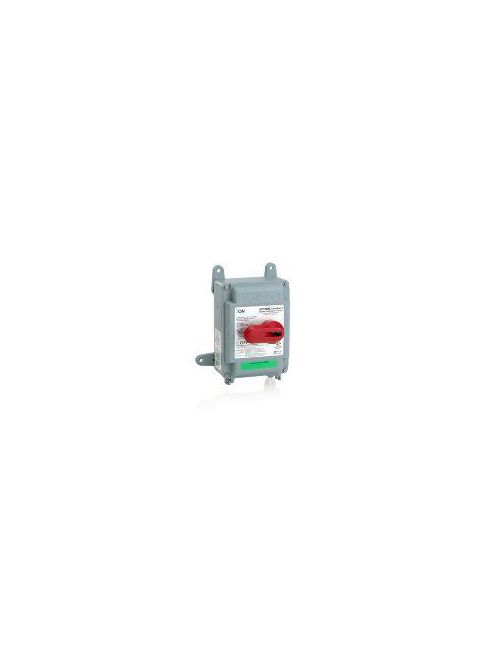

LEV MS4X-302 30A 2POLE MSS IN 4X
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$223.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # MS4X-302
North Coast Part # 680882

Specifications

Material Specifications

  • Terminal Screws: Nickel-Plated Brass 10-32
  • Enclosure: Thermoplastic Polyester
  • Contacts: Silver-Cadmium .031 Thick

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: NOM-ANCE
  • cUL per CSA C22.2 No. 111: File #E63969
  • NEMA: WD-1 & WD-6
  • NSF: 14159-1 Meat & Poultry Processing Equipment
  • ANSI: C-73
  • UL 60947-4-1: supersedes UL 508

Electrical Specifications

  • Amperage: 30 A
  • Flammability: Rated V-0 per UL 94
  • Dielectric Voltage: Withstands 2200V for 1 min.
  • Temperature Rise: 50ºC Max at full rated current
  • Endurance: 6,000 cycles inductive motor type load
  • Pole: 2
  • Operating Temperature: -40°C to 60°C
  • Voltage: 600 VAC
  • Grounding: Non-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Device Type: Enclosed Switch
  • Country Of Origin: Mexico

Mechanical Specifications

  • Impact: 1.2 lb ball dropped from 5 ft
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: #10-#8 AWG
  • Crush Test: 100 lbs
  • xxx: Remains in place with 20lb push
  • Torque Range: 20 inch pounds
  • Mold Stress Relief: 70ºC for 7 hours
  • Termination: Switch Mechanism Back & Side
  • Terminal ID: T1, T2, L1, L2 marked on back of switch mechanism

AC Horsepower Ratings

  • HP Rating: 2HP-120V 5HP-240V 10HP-480V 15HP-600V

Environmental Specifications

  • Dust: Type 12K per UL 50
  • Enclosure Rating: Type 4X
  • Rain: Type 3R per UL 50
  • Hosedown: Type 4X per UL 50

Overview

UPC 07847748032
GTiN 00078477480328
Warranty Length 2 yr
Size 7.28 H x 5.28 W x 4.76 D IN
Operating Temperature -40 C
Voltage 600 Volt
Type Enclosure With Double-Pole AC Motor Starter Switch
Applications Commercial
Country of Origin Mexico
Standard ANSI C-73
Torque 20 lb-in
Horsepower 10 hp
Family Brand Name Leviton
NEMA WD-1,WD-6
Enclosure Type Thermoplastic Polyester
Dielectric 2200 V
Flamability Class Rated V-0 Per UL 94
Grounding Non-Grounding
Contact Material Silver-Cadmium
Actuator Toggle
Amperage 30 Amp
Environmental Conditions Flammability (Rated V-0 per UL94)
Number of Poles 2 Pole
Temperature Rise 50 C
Device Type Enclosed Switch
Action DPST
Sub Brand Powerswitch
