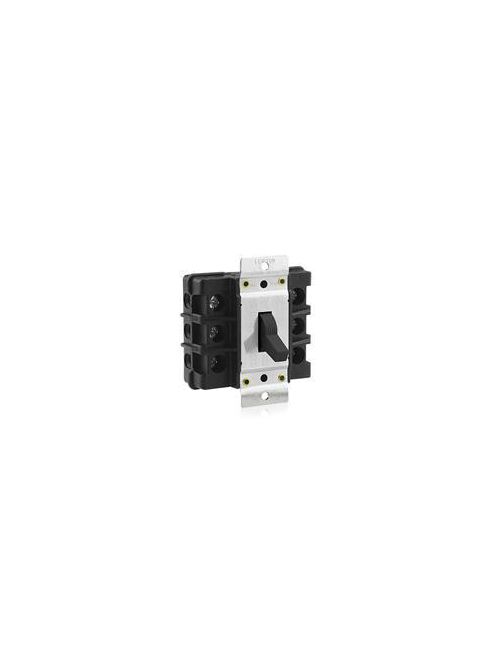

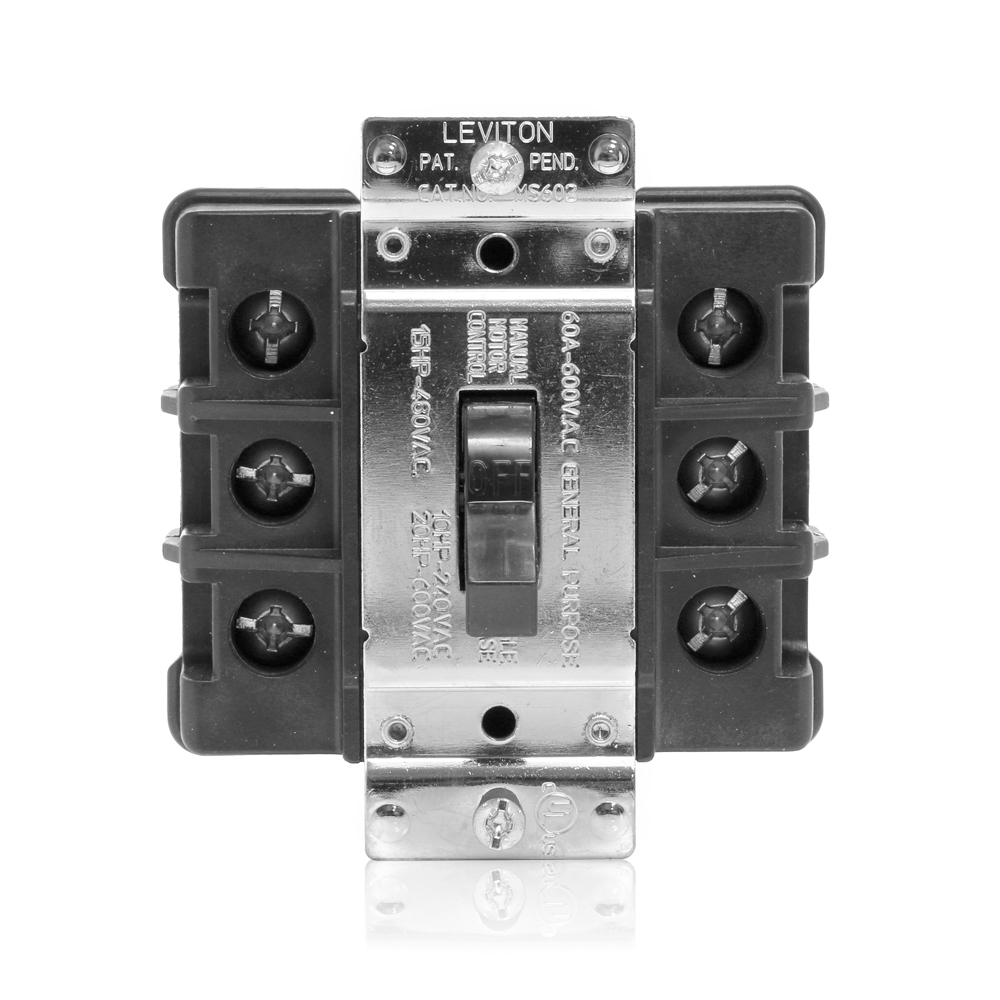

LEV MS603-FW 60A 3P FW MSS
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$204.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # MS603-FW
North Coast Part # 756254

Specifications

Material Specifications

  • Face Material: Thermoplastic Polyester
  • Contacts: .046" Thick Silver-Cadmium Oxide
  • Color: Black
  • Strap Material: Nickel-Plated Brass
  • Base Material: Thermoplastic Polyester
  • Terminal Screws: Zinc-Plated Steel, Triple Combination
  • Toggle: Thermoplastic Polyester
  • Yoke: Nickel-Plated Brass

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: NOM-ANCE
  • cUL per CSA C22.2 No. 111: File #E63969
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL 60947-4-1: supersedes UL 508

Electrical Specifications

  • Amperage: 60 A
  • Dielectric Voltage: Withstands 2200V for 1 min.
  • Temperature Rise: 50ºC Max at full rated current
  • Endurance: 6,000 cycles inductive motor type load
  • Pole: 3
  • Voltage: 600 VAC
  • Grounding: Non-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Warranty: 10-Year Limited
  • Color: Black
  • Standards and Certifications: UL/CSA
  • Strap Material: Nickel-Plated Brass
  • Country Of Origin: Mexico
  • Device Type: Toggle Switch
  • Body Material: Rynite
  • Actuator Material: Valox

Mechanical Specifications

  • Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
  • Product ID: Ratings are permenantly marked on device
  • Terminal Accom.: 10-4 AWG
  • Torque Range: 25 inch pounds maximum
  • Termination: Front

AC Horsepower Ratings

  • HP Rating: 10HP-240V 25HP-480V 30HP-600V

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847709362
Item Long Description 60 Amp, 600 Volt, Toggle Three-Pole AC Motor Starter, Suitable as Motor Disconnect, Industrial Grade, Non-Grounding, Front Wired, Black
GTiN 00078477093627
Warranty Length 10 yr
Size 3.75 H x 3.43 W x 1.70 D IN
Color Black
Operating Temperature -40 C
Voltage 600 Volt
Type Non-Reversing
Applications For Commercial use
Country of Origin Mexico
Standard ANSI C-73,CSA,UL
Connection Type Front Wired
Torque 25 lb-in
Horsepower 10 hp
Base Material Thermoplastic Polyester
Face Material Polyester
Body Material Rynite
Coil Voltage 600 VAC
Toggle Material Thermoplastic Polyester
Temperature Rating -40 to 65 C
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 2200 V
Flamability Class Rated V-0 Per UL 94
Grounding Non-Grounding
Contact Material Silver-Cadmium Oxide
TC Connection Front Wired
Actuator Toggle
Contact Configuration TPST
Amperage 60 Amp
Blade Dimensions 3.43 in W x 1.7 in D x 3-3/4 in H
Environmental Conditions Flammability (Rated V-2 per UL94)
Number of Poles 3 Pole
Temperature Rise 50 C
Device Type Toggle Switch
Action TPST
