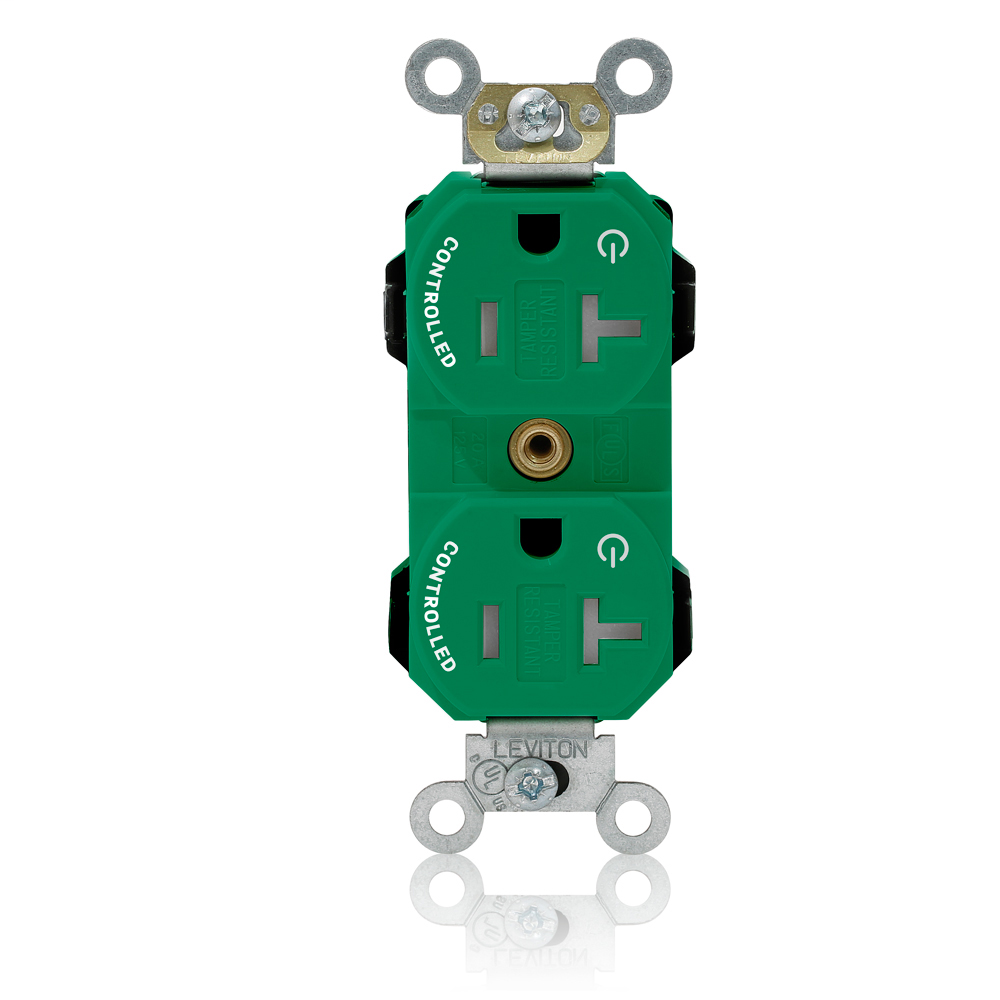

LEV MT563-2SN 20A LLOK TR CONTROL R
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # MT563-2SN
North Coast Part # 1680190

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.040” Thick Solid Brass
  • Locking Pins: Solid Brass
  • Mounting Strap: Galvanized Steel
  • Shutter Mechanism: Acetal
  • Cover Material: Nylon
  • Bushing: Solid Brass
  • Base Material: Nylon
  • Mounting Screws: Triple Combination Head, Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-20R
  • Color: Green
  • Brand: Lev-Lok
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Industrial Specification Grade
  • Feature: Two Outlets Marked Controlled, Tamper-Resistant, Smooth Face
  • Device Type: Duplex Receptacle Outlet
  • Controlled Outlets: 2

Mechanical Specifications

  • Termination: Modular
  • Product ID: Ratings are permanently marked on device

AC Horsepower Ratings

  • Horsepower Rating: 1 HP

Environmental Specifications

  • Operating Temperature: -40°C to 60°C

Overview

GTiN 00078477892145
Warranty Length 10 yr
Color Green
Operating Temperature -40 C
Grade Heavy-Duty Industrial Specification
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1 hp
Base Material Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Dielectric 2000 V
Grounding Self-Grounding
Amperage 20 Amp
Number of Poles 2 Pole
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Cover Material Nylon
Product UPC 07847789214
