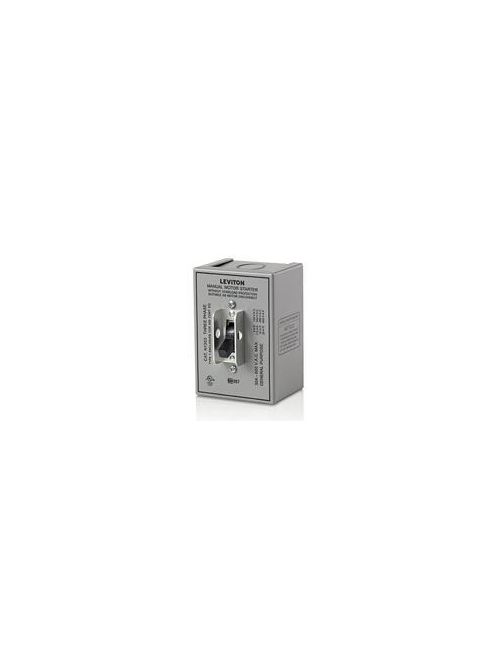

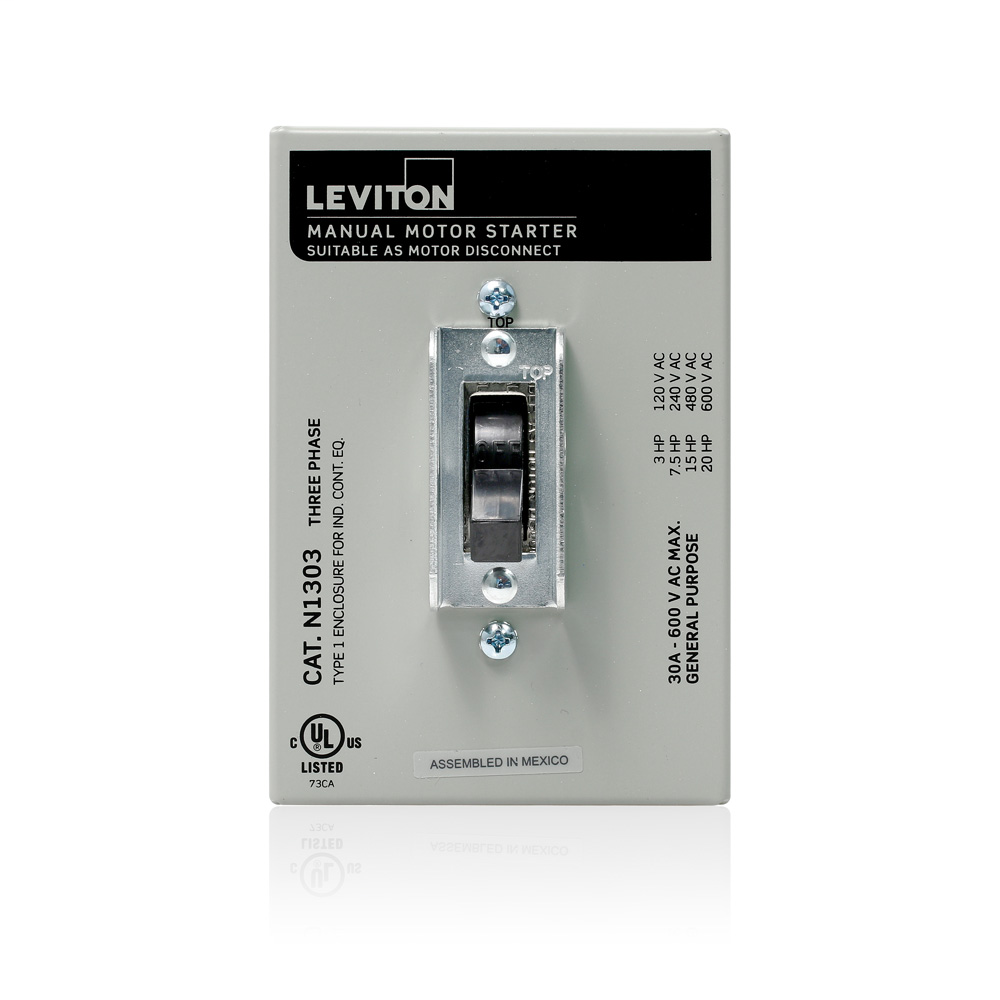

LEV N1303-DS 30A 600V TYPE 1 ENCL 3
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$159.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # N1303-DS
North Coast Part # 600484

Specifications

Material Specifications

  • Enclosure Cover Material: Steel
  • Face Material: Thermoplastic Polyester
  • Contacts: Silver-Cadmium .031 Thick
  • Terminal Screws: Nickel-Plated Brass 10-32
  • Strap Material: Nickel Plated Brass
  • Base Material: Thermoplastic Polyester
  • Toggle: Thermoplastic Polyester
  • Yoke: Nickel-Plated Brass

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: NOM-ANCE
  • cUL per CSA C22.2 No. 111: File #E63969
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL 60947-4-1: supersedes UL 508

Product Features

  • Color: Gray
  • Device Type: Enclosed Switch
  • Country Of Origin: Mexico

Mechanical Specifications

  • Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
  • Product ID: Ratings are permenantly marked on device
  • Terminal Accom.: #10-#8 AWG
  • Torque Range: 25 inch pounds maximum
  • Termination: Back & Side

Electrical Specifications

  • Amperage: 30 A
  • Dielectric Voltage: Withstands 2200V for 1 min.
  • Temperature Rise: 50ºC Max at full rated current
  • Endurance: 6,000 cycles inductive motor type load
  • Pole: 3
  • Voltage: 600 VAC
  • Grounding: Grounded To Enclosure
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C
  • Enclosure Rating: Type 1

Overview

UPC 07847737429
Item Long Description 30 Amp, 600 Volt, Toggle Three-Pole AC Motor Starter, Suitable as Motor Disconnect, In Type 1 Metal Enclosure, Industrial Grade, Grounded, Gray
GTiN 00078477374290
Warranty Length 10 yr
Size 4.75 H x 3.25 W x 3.16 D IN
Color Gray
Operating Temperature -40 C
Voltage 600 Volt
Type Enclosure With Three-Pole AC Motor Starter Switch
Material Metal
Applications Commercial
Mounting Type Surface
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 25 lb-in
Base Material Thermoplastic Polyester
Face Material Polyester
Control Voltage 600 VAC
Toggle Material Thermoplastic Polyester
Temperature Rating -40 to 60 C
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 2200 V
Flamability Class Rated V-0 Per UL 94
Grounding Grounded To Enclosure
Contact Material Silver-Cadmium
TC Connection Back Wired;Side Wired
Actuator Toggle
Contact Configuration TPST
Amperage 30 Amp
Blade Dimensions 3-1/4 in W x 3.16 in D x 4-3/4 in H
Environmental Conditions Flammability (Rated V-0 per UL94)
Number of Poles 3 Pole
Temperature Rise 50 C
Device Type Enclosed Switch
Action TPST
Sub Brand Powerswitch
