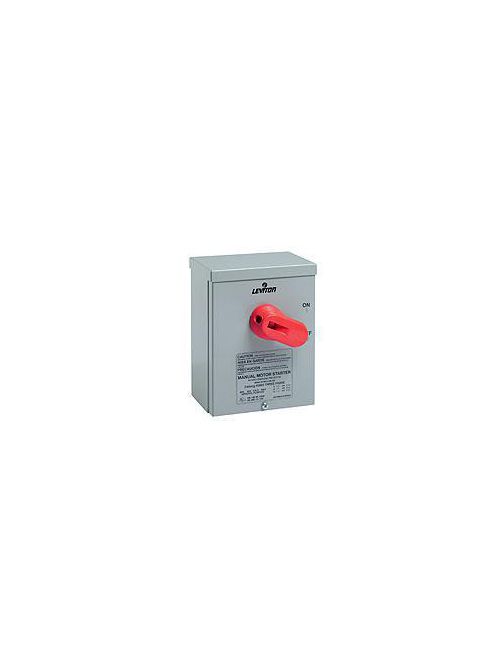

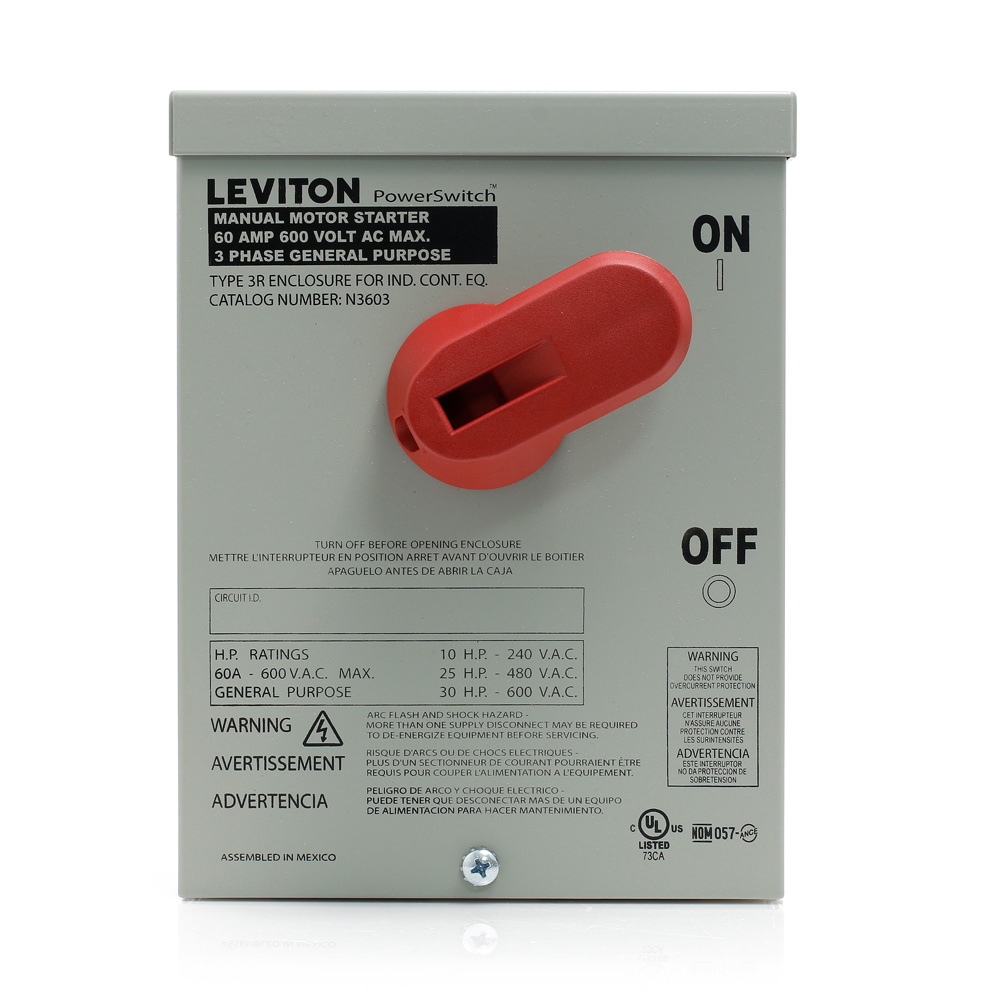

LEV N3603 60A 600V 3P 3R MTR STRT S
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$296.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # N3603
North Coast Part # 551113

Specifications

Material Specifications

  • Face Material: Thermoplastic Polyester
  • Contacts: .046" Thick Silver-Cadmium Oxide
  • Color: Grey
  • Strap Material: Nickel Plated Brass
  • Toggle: Thermoplastic Polyester
  • Base Material: Thermoplastic Polyester
  • Terminal Screws: Zinc-Plated Steel, Triple Combination
  • Handle Material: Valox 357 PBT
  • Yoke: Nickel-Plated Brass
  • Enclosure Material: Powder-Coated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: NOM-ANCE
  • cUL per CSA C22.2 No. 111: File #E63969
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL 60947-4-1: supersedes UL 508

Electrical Specifications

  • Amperage: 60 A
  • Dielectric Voltage: Withstands 2200V for 1 min.
  • Temperature Rise: 50ºC Max at full rated current
  • Endurance: 6,000 cycles inductive motor type load
  • Pole: 3
  • Voltage: 600 VAC
  • Grounding: Non-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Color: Grey
  • Device Type: Enclosed Switch
  • Country Of Origin: Mexico

Mechanical Specifications

  • Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
  • Product ID: Ratings are permenantly marked on device
  • Terminal Accom.: 10-4 AWG
  • Torque Range: 25 inch pounds maximum
  • Termination: Front

AC Horsepower Ratings

  • HP Rating: 10HP-240V 25HP-480V 30HP-600V

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C
  • Enclosure Rating: Type 3R

Overview

UPC 07847710186
Item Long Description 60 Amp, 600 Volt, Toggle In Type 3R Enclosure, Three-Pole, AC Motor Starting Switch, Suitable as Motor Disconnect, Industrial Grade, Black
GTiN 00078477101865
Warranty Length 10 yr
Size 8.1 H x 6.3 W x 4.3 D IN
Color Gray
Operating Temperature -40 C
Voltage 600 Volt
Type Enclosure With Three-Pole AC Motor Starter Switch
Material Powder Coated Steel
Applications Commercial
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 25 lb-in
Horsepower 10 hp
Base Material Thermoplastic Polyester
Face Material Polyester
Control Voltage 600 VAC
Toggle Material Thermoplastic Polyester
Temperature Rating -40 to 60 C
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 2200 V
Flamability Class Rated V-0 Per UL 94
Grounding Non-Grounding
Contact Material Silver-Cadmium Oxide
TC Connection Back Wired;Side Wired
Actuator Toggle
Amperage 60 Amp
Blade Dimensions 6.3 in W x 4.3 in D x 8.1 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 3 Pole
Temperature Rise 50 C
Device Type Enclosed Switch
Enclosure Powder-Coated Steel
Action TP
Sub Brand Powerswitch
