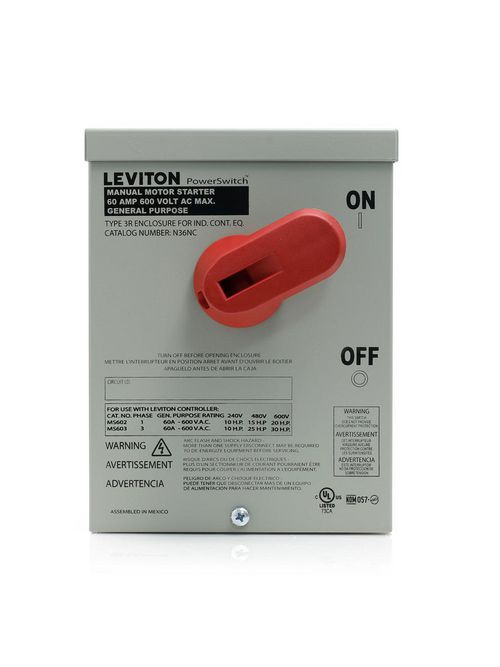

LEV N36NC GY 3R METAL ENC FOR MS602
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$102.96/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # N36NC
North Coast Part # 670268

Specifications

Material Specifications

  • Enclosure Cover Material: Steel
  • Enclosure Material: Steel

Warranty

  • Warranty: 10-Year Limited

Standards and Certifications

  • Standards and Certifications: cULus
  • UL 60947-4-1: supersedes UL 508
  • NEMA Rating: Type 3R

Product Features

  • Color: Gray
  • Device Type: Enclosure
  • Country Of Origin: United States
  • Enclosure Cover Material: Steel

Mechanical Specifications

  • Amperage: 60 A
  • Item: Enclosure Only
  • Knockouts: 2-KO 1 1/2 to 1-1/4 and 1 1/2 to 3/4 Bottom

Environmental Specifications

  • Enclosure Rating: Type 3R

Overview

UPC 07847710133
GTiN 00078477101339
Finish Powder Coated
Warranty Length 10 yr
Width 6.3 in
Size 8.1 H x 6.3 W x 4.3 D IN
Color Gray
Operating Temperature -40 To 65 C
Type Enclosure
Material Steel
Applications For Commercial use
Depth 4.3 in
Height 8.1 in
Country of Origin USA
Standard ANSI (C-73),CUL Per CSA C22.2 No. 111 (File E63969),NEMA (WD-1 & WD-6),NOM Certified (057),UL508 (File E63969)
Connection Type Back Wired,Side Wired
Family Brand Name Leviton
NEMA 3R
Certifications CULus
TC Connection Back Wired;Side Wired
Actuator Toggle
Amperage 60 Amp
Environmental Conditions Flammability (Rated V-2 Per UL94)
Device Type Enclosure
Enclosure Powder-Coated Steel
Used With MS602-FW/MS603-FW Motor Controller Switch
