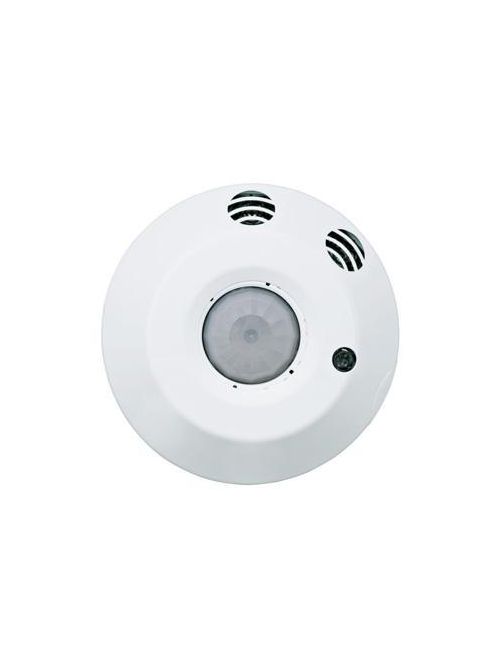

Manufacturer Leviton
Mfg Catalog # O2C05-MDW
North Coast Part # 1280249


  • Utilizes sensors which emit non-audible sound waves and sense movement. Any movement within the sensor’s field-of-view causes a shift in the original emitted frequency. The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
  • Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Vacancy Sensing Time Outs: (Delayed OFF Timer, Exclusive Walk-through Feature, Time delay and saved settings are protected during power outages and will return to the last known state)
  • Output short circuit protection
  • Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
  • Presentation Mode allows user to turn lights OFF and keep them OFF while the room is occupied
  • Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
  • Test Mode for simplified commissioning
  • Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
  • Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
  • Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
  • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
  • Field of View: Units from 500 to 2000 square feet available
  • Visual LED indicators for all states: (Green - Blinks during U/S detection and is solid during auto-calibration, Yellow - Blinks during test mode; solid with emergency/BMS input, Blue - Blinks when knob settings are changed and during photocell override


Mechanical Specifications

  • Relay Type: Dual Relay
  • Neutral Wire Connection: Required

Standards and Certifications

  • Title 24 Compliant: Yes

Electrical Specifications

  • Frequency: 50/60Hz
  • Voltage: 120-277 VAC

Product Features

  • Coverage (Sq.Ft.): 500
  • Sensor Type: Ceiling Mount
  • Color: White
  • Country Of Origin: China
  • Product Line: Provolt
  • Technology: Multi-Technology PIR/Ultrasonic



GTiN 00078477642665
Color White
Type Line Voltage, Dual Relay
Applications For Commercial
Mounting Type Ceiling
Country of Origin China
Standard UL 924 Listed
Frequency 50/60 Hz
Family Brand Name Leviton
Sensor Type Multi-Technology PIR/Ultrasonic
Coverage 500 sq-ft
Product UPC 07847764266
Temperature Rating 32 - 104 F
Response Time 30 sec, 5 min, 10 min, 20 min, 30 min
Blade Dimensions 4.80 in dia x 2.39 in H
Sub Brand Provolt
