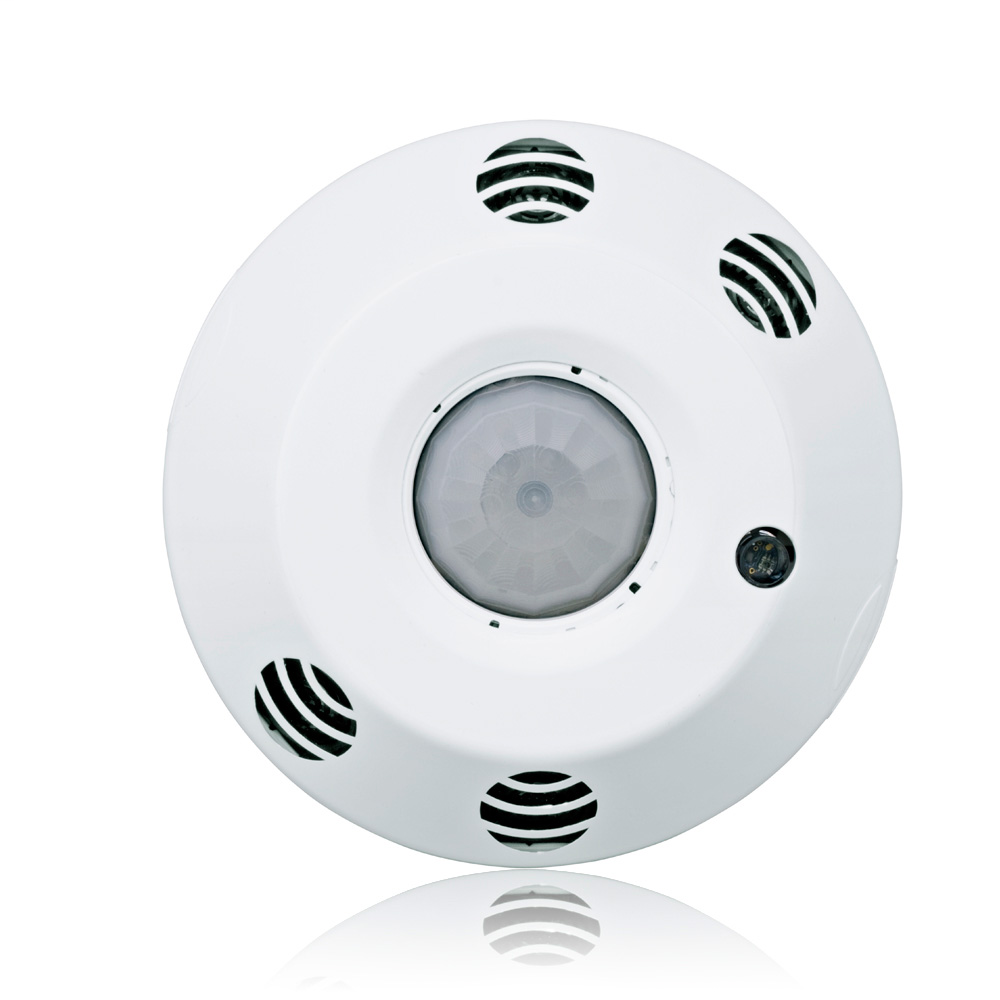

LEV O2C10-MDW OCC SEN CEILING 1000

Features

• Utilizes sensors which emit non-audible sound waves and sense movement. Any movement within the sensor’s field-of-view causes a shift in the original emitted frequency. The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
• Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
• Vacancy Sensing Time Outs: (Delayed OFF Timer, Exclusive Walk-through Feature, Time delay and saved settings are protected during power outages and will return to the last known state)
• Output short circuit protection
• Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
• Presentation Mode allows user to turn lights OFF and keep them OFF while the room is occupied
• Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
• Test Mode for simplified commissioning
• Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
• Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
• Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
• Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
• Field of View: Units from 500 to 2000 square feet available
• Visual LED indicators for all states: (Green - Blinks during U/S detection and is solid during auto-calibration, Yellow - Blinks during test mode; solid with emergency/BMS input, Blue - Blinks when knob settings are changed and during photocell override

Specifications

Mechanical Specifications

• Relay Type: Dual Relay
• Neutral Wire Connection: Required

Standards and Certifications

• Title 24 Compliant: Yes

Electrical Specifications

• Frequency: 50/60Hz
• Voltage: 120-277 VAC

Product Features

• Coverage (Sq.Ft.): 1000
• Sensor Type: Ceiling Mount
• Color: White
• Country Of Origin: China
• Product Line: Provolt
• Technology: Multi-Technology PIR/Ultrasonic
