Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # O5C20-MDW
North Coast Part # 1345517


  • Simplified daylight harvesting with 1- and 2-zone control for full range 0-10V dimming
  • Set demand response dimming capabilities and auto-ON, auto-OFF, partial-ON and partial-OFF with the Provolt Bluetooth Mobile App
  • Code-compliant features— -Auto-ON/Auto-OFF -Partial-ON (lights automatically turn ON to 50% when a space is occupied, manual-ON control for above 50%) -Partial-OFF (lights will dim to 30% when is a space is unoccupied
  • Basic controls include ON, OFF, dim up and dim down using a 4-button keypads
  • Closed loop photocell detects total measurement of both natural and artificial light in the space
  • 450 and 2,000 square feet field-of-view units available
  • The PRC comes with 180° and 360° photocells for closed loop dimming applications
  • Uses ultrasonic (Doppler shift) motion detection giving maximum sensitivity and PIR motion detection and preventing false triggers
  • Works in conjunction with 1-, 2- and 4-button keypads (PLVSW) for individual manual zone control
  • Ladderless Commissioning™ and programming through Bluetooth-enabled smart devices for install-and-forget convenience
  • AutoCal feature—automatic photocell target level calibration
  • Meets energy code requirements including daylight harvesting and demand response


Electrical Specifications

  • Voltage Type: 0-10 VAC

Product Features

  • Product Line: Provolt PRC
  • Product Type: Room Controller
  • Country Of Origin: China



UPC 07847775002

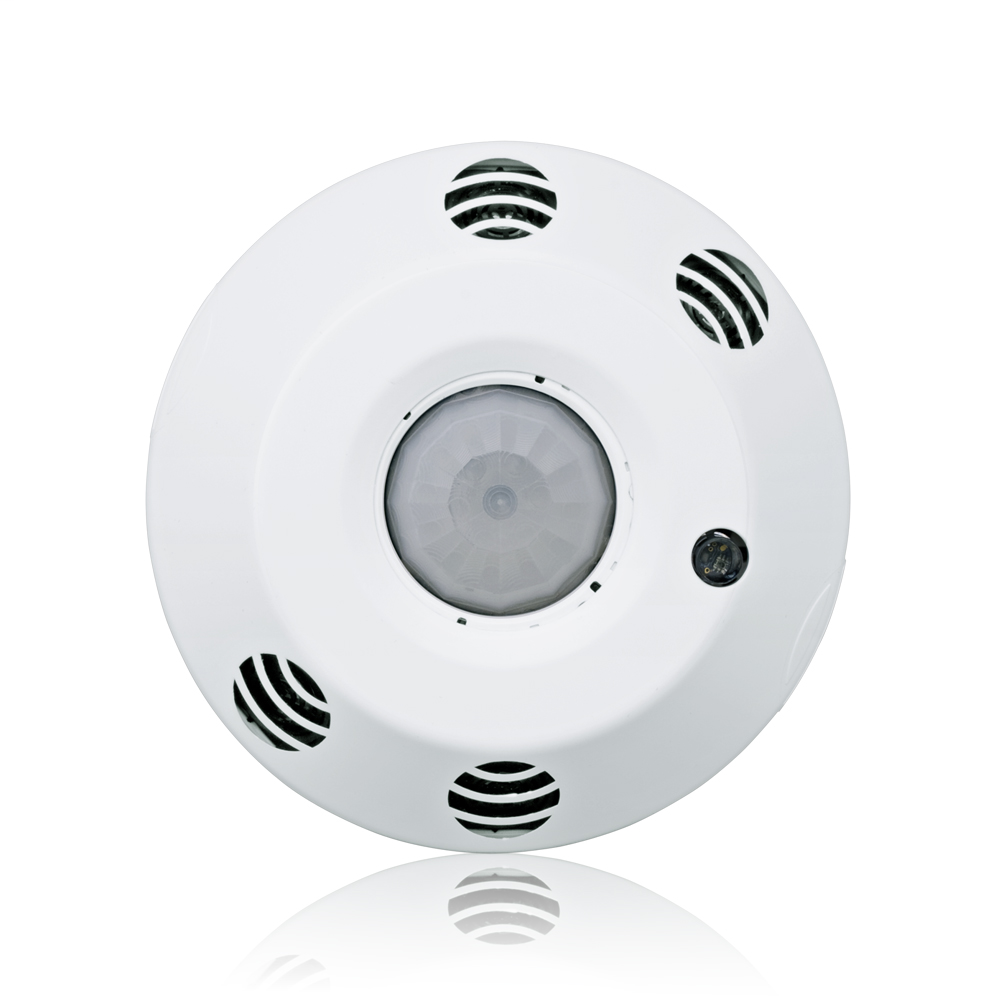

Item Long Description Indoor, Line Voltage, Low Profile, 1 Zone, Ceiling Mount, M/T, 2000 sq ft, Room Controller with multi-tech occupancy sensor, (1) 0-10V DC Sinking Control Signal for dimming ballast or LED Driver. 1 Relay, 120-277V AC.
GTiN 00078477750025
Voltage 120/277 Volt
Type 1-Zone, 1-Relay, Line Voltage, Low Profile
Product Type Room Controller
Applications For Residential/Commercial, Single Area Control, Indoor use
Country of Origin China
Switch Type 4-Button Keypad
Temperature Rating 32 - 104 F Operating
Family Brand Name Leviton
Lamp Type LED
Power Rating 800 W and 1/4 hp at 120 V, 1200 W and 1/3 hp at 277 V
Control Type 0 - 10 VDC Sinking
Blade Dimensions 4.81 in dia x 1.09 in D
Sub Brand Provolt
