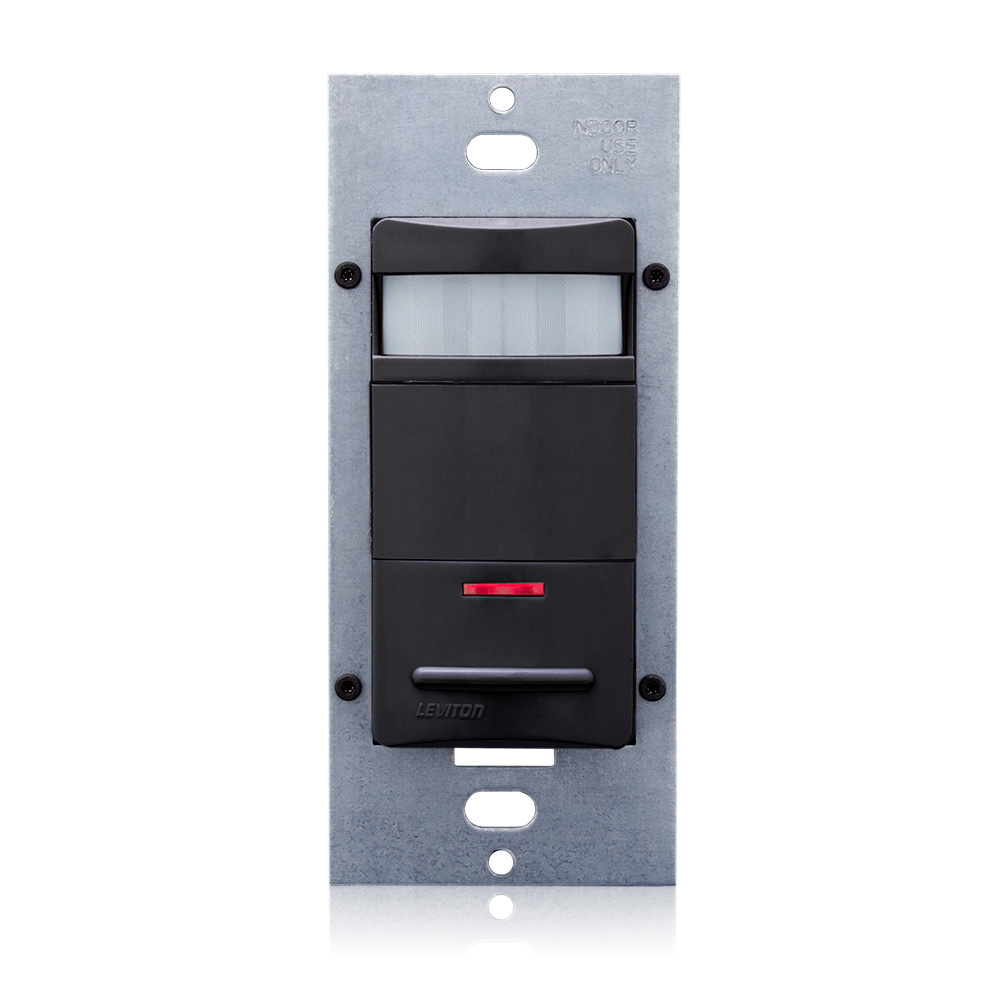

LEV ODS10-IDE EB PIR OCC SENS WALL
$62.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # ODS10-IDE
North Coast Part # 1167963

Features

  • Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units.
  • Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora styling complements any interior; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
  • 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, classrooms, lounges and a variety of commercial areas.
  • Convenient pushbutton provides manual-ON/OFF light switching at any time.
  • Two dual element PIR sensors used to widen detection range.
  • Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
  • Vandal resistant PIR lens.
  • Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
  • Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
  • To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active.
  • Time Delay adjustment for delayed-OFF time set-tings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
  • Light Sensor Adjustable Ambient Light Override ranges from approximately 2 foot-candles (20 lux) to 500+ foot-candles (5000+ lux) to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings.
  • Light sensor enables the load hold-OFF feature once level has been set.
  • Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON.
  • False detection circuitry.
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
  • One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts.
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
  • Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
  • No neutral design is optional for retrofit applications.

Specifications

Mechanical Specifications

  • Switch Type: Single-Pole
  • Neutral Wire Connection: Not Required

Standards and Certifications

  • California Title 24: Yes

Electrical Specifications

  • Frequency: 50/60Hz
  • Voltage: 120/277 VAC

Product Features

  • Coverage (Sq.Ft.): 2100
  • Sensor Type: Wall Switch
  • Color: Black
  • Country Of Origin: China
  • Neutral Wire Connection: Not Required
  • Voltage: 120/277 VAC
  • Product Line: ODS10
  • Technology: Passive Infrared
  • Switch Type: Single-Pole

Overview

UPC 07847737002
GTiN 00078477370025
Size 46 H x 1.75 W x 1.83 D IN
Color Ebony, Black
Voltage 120/277 Volt
Type OCCUPANCY SENSOR
Applications For Commercial use
Mounting Type Wall
Country of Origin China
Standard CUL,UL
Frequency 50/60 Hz
Switch Type Single-Pole
Temperature Rating 0 - 50 C
Family Brand Name Leviton
Power Consumption 100/250 W
Response Time 30 sec - 30 min
Blade Dimensions 44.4 mm W x 47.2 mm D x 103.2 mm H
Environmental Conditions 0 to 50 C
Sensor Type Passive Infrared
Number of Poles 1 Pole
Coverage 2100 sq-ft
Sub Brand Decora
