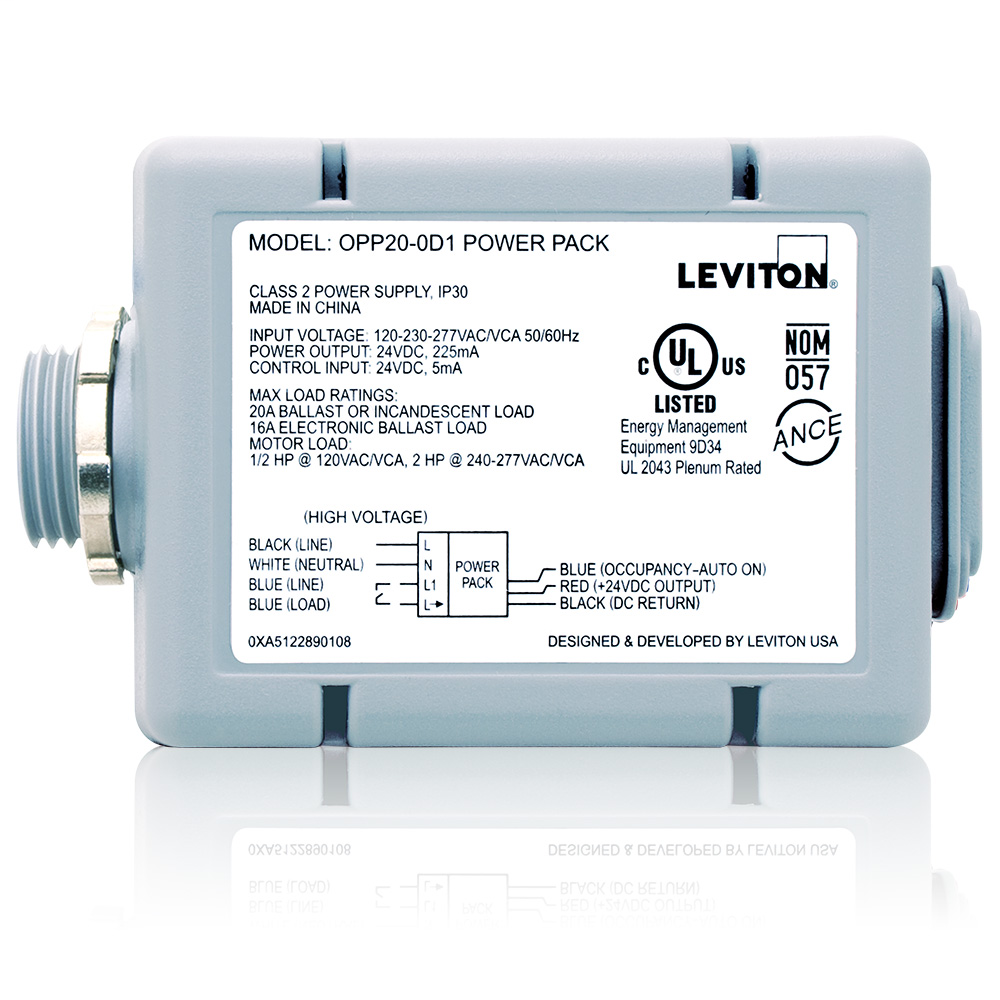

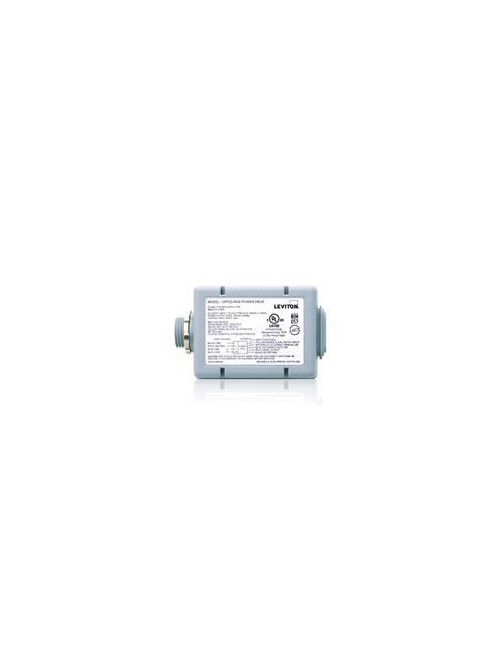

Leviton OPP20-D1 120/208/220/230/240/277 VAC 20 Amp Gray Standard Occupancy Sensor Power Pack
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # OPP20-D1
North Coast Part # 931165


  • First true industry-exclusive “fail safe” design assures lights ON meeting life safety requirements of NFPA 101
  • Robust power pack meets intense plug load control requirements of CA Title 24/ASHRAE 90.1
  • Industry exclusive Switched Daylighting Power Pack models for use with Wall Switches, Occupancy Sensors and Photocells
  • Robust and reliable mechanical latching relays specifically designed to operate LED’s and high inrush electronic ballast loads
  • Surpasses industry standards for short circuit protection (NEMA 410 16 Amp ballast overload testing)
  • Tested to exceed 1.5 million switching cycles under standard load
  • Built in manual ON switching control to meet CA Title 24 standards
  • Models support a wide range of applications including switched daylighting, occupancy sensing control, bi-level switching, and metering/mechanical applications


Mechanical Specifications

  • Relay Type: Latching
  • Neutral Wire Connection: Required

Standards and Certifications

  • Title 24 Compliant: Yes

Electrical Specifications

  • Frequency: 50/60Hz
  • Voltage: 120/230/277 VAC

Product Features

  • Configurable Local Switch: Yes
  • NOM Certified: Yes
  • NEMA 410 Tested: Electronic Ballast Current
  • Plenum Rated: UL2043
  • Sensor Type: Power Pack
  • Output Short Circuit Protection: Yes
  • Country Of Origin: China
  • Manual On OCC Input: Yes
  • 20A: Yes
  • Meets CA Title 24 Requirements: Yes
  • Tested Relay Cycles: 1.5M loaded cycles
  • Auto On OCC Input: Yes
  • Regulated 24VDC Current Output: 225mA
  • Zero Cross Technologies: Yes
  • Meets ASHRAE 90.1: Yes
  • Momentary/Maintained Switch: Exclusive Self-detect
  • Fail-Safe Circuit: Yes
  • Plug Load Control Requirements: Yes
  • Warranty: 5 Year
  • 120-230-277VAC, 50/60 Hz: Yes
  • Color: Grey
  • Manual Switch Input: Yes
  • Latching Relay: Yes
  • Auto-ON/Auto-OFF: Yes
  • UL/cUL Listed: 916; 2043
  • Power On Restore: Yes
  • Product Line: OPP20
  • Switched Daylighting Input: Yes


GTiN 00078477634042
Length 1.432 Inch
Warranty Length 5 yr
Width 3.811 in
Color Gray
Voltage 24 Volt
Type Standard
Material Plastic
Applications For Industrial use
Depth 1.432 in
Height 2.4 Inch
Country of Origin China
Cable Size 18-14 AWG
Standard CUL\UL Listed,NOM Certified (057),ROHS Complaint
Frequency 50/60 Hz
Wattage 5.4 Watt
Family Brand Name Leviton
Power Rating 5.4 W
Amperage 225 Amp
Blade Dimensions 3.811 in W x 1.432 in D x 2.4 in H
Environmental Conditions Relative Humidity (0% To 90%, Non-Condensing)
Sensor Type Power Pack
Product UPC 07847763404
