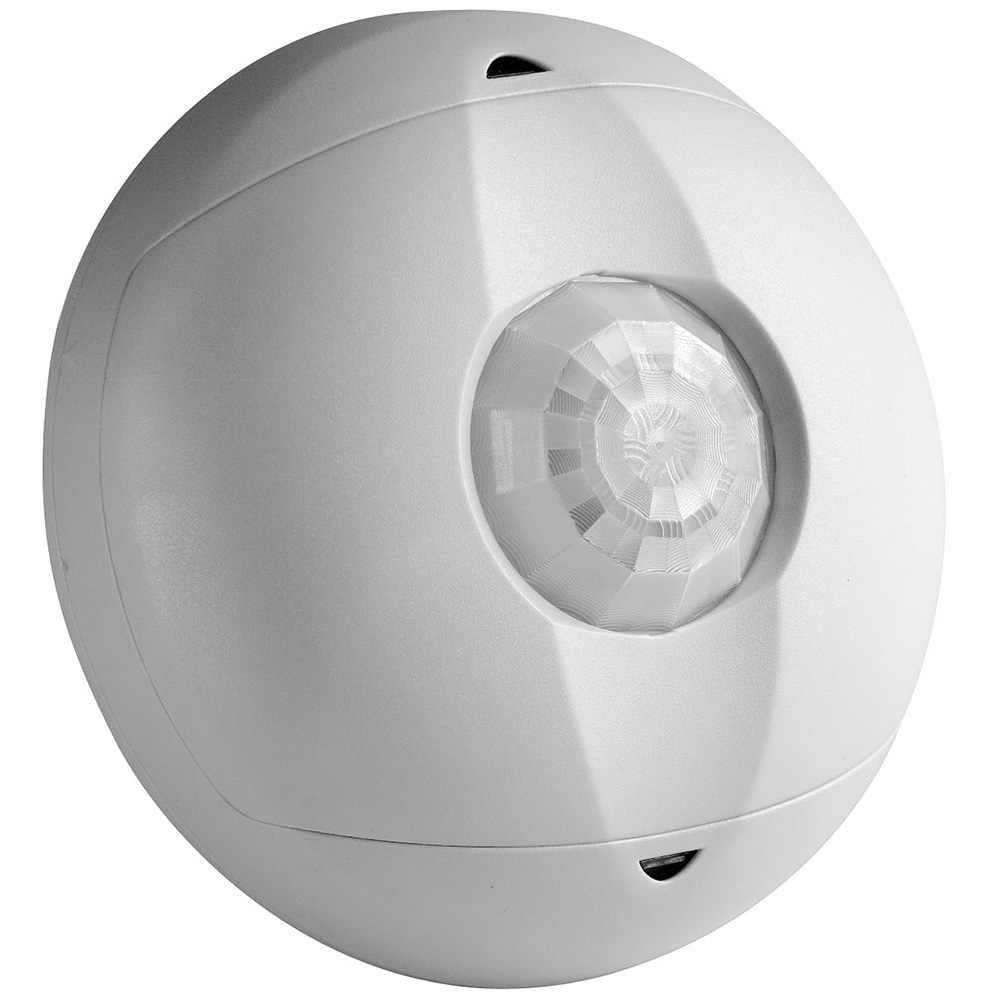

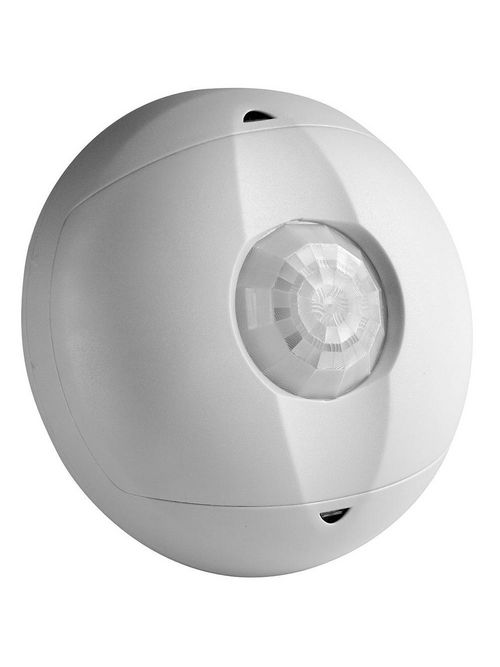

LEV OSC04-I0W WH INFRA CEIL OCC SEN
$112.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # OSC04-I0W
North Coast Part # 329505

Features

  • Small Size: Installed sensor appears almost invisible.
  • Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
  • Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
  • Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
  • Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
  • Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
  • Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
  • Excellent Warranty: 5-Year Limited warranty.
  • Typical Applications: Closet, Copy Room, Small Office, Storage Room, Lounge, Non-Partitioned Restroom or Vending Room

Specifications

Material Specifications

  • PIR Lens Type: High Density
  • Color: White
  • Sensor Weight: 5oz/142g
  • Housing Material: High-Impact, Injection Moulded Plastic
  • Wire Leads: Color Coded 6 Inch
  • LED Indicator: Red Infrared Motion

Mechanical Specifications

  • Pattern Degrees: 360
  • Coverage (Sq.Ft.): 450
  • Sensor Technology: Passive Infrared
  • Major Motion Area: 24 Foot Diameter
  • Photo Cell: Ambient Override ON
  • Minor Motion Area: 10 Foot Diameter

Standards and Certifications

  • NOM: 057
  • Code Compliance: California Title 24
  • Title 24 Compliant: Yes
  • ANCE: Compliant
  • ASHRAE: Standard 90.1 Compliant
  • Operating Humidity: 0 Pct to 95 Pct Relative, Non-Condensing
  • FCC: Compliant
  • CUL/US: Listed 9034
  • Operating Temperature: 32F to 104F 0C to 40C

Electrical Specifications

  • LED Disable: LEDS Enable/LEDS Disable
  • Manual Time Adjustment: 30s-30m, 6s Test Mode
  • Timer Factory Preset: 10 Minutes
  • Photocell Factory Preset: 3000 Lux (disable photocell)
  • Photo Cell Adjustment: 20 to 3000 Lux
  • Voltage: 24 VDC
  • Sensitivity Factory Preset: Infrared 75 Pct
  • Sensitivity Adjustment: 0 to 100 Pct
  • Adjustment: Self-Adjusting

Product Features

  • Manual Time Adjustment: 30s-30m, 6s Test Mode
  • Load Rating: Uses Power Pack
  • Pattern Degrees: 360
  • Code Compliance: California Title 24
  • Coverage (Sq.Ft.): 450
  • Sensor Type: Ceiling Mount
  • Color: White
  • Sensor Technology: Passive Infrared
  • Standards and Certifications: CUL/US Cert
  • Country Of Origin: Please Contact Customer Service.
  • Housing Material: High-Impact, Injection Moulded Plastic
  • Warranty: 5-Year Limited
  • Input Voltage: 24VDC
  • Output Voltage: 24VDC w/Short Circuit Protection
  • Product Line: OSC04
  • Photo Cell: Ambient Override ON
  • Adjustment: Self-Adjusting
  • Technology: Passive Infrared
  • Current Consumption: 10mA

Overview

UPC 07847718053
GTiN 00078477180532
Warranty Length 5 yr
Size 4.20 (Dia) x 1.55 D IN
Color White
Operating Temperature 104 degrees F
Voltage 24 Volt
Type Passive Infrared
Material Plastic
Applications For Commercial use
Mounting Type Ceiling
Standard FCC Compliant,NOM (057),ASHRAE (Standard 90.1 Compliant),Code Compliance (California Title 24),ANCE Compliant,CUL\US (Listed 9034)
Input Voltage 24 V
Temperature Rating 0 - 40 C
Family Brand Name Leviton
Certifications CUL/US Cert
Response Time 30 min
Blade Dimensions 4.2 in dia x 1.55 in D
Environmental Conditions Operating Humidity (0 To 95) %
Sensor Type Passive Infrared
Coverage 450 sq-ft
