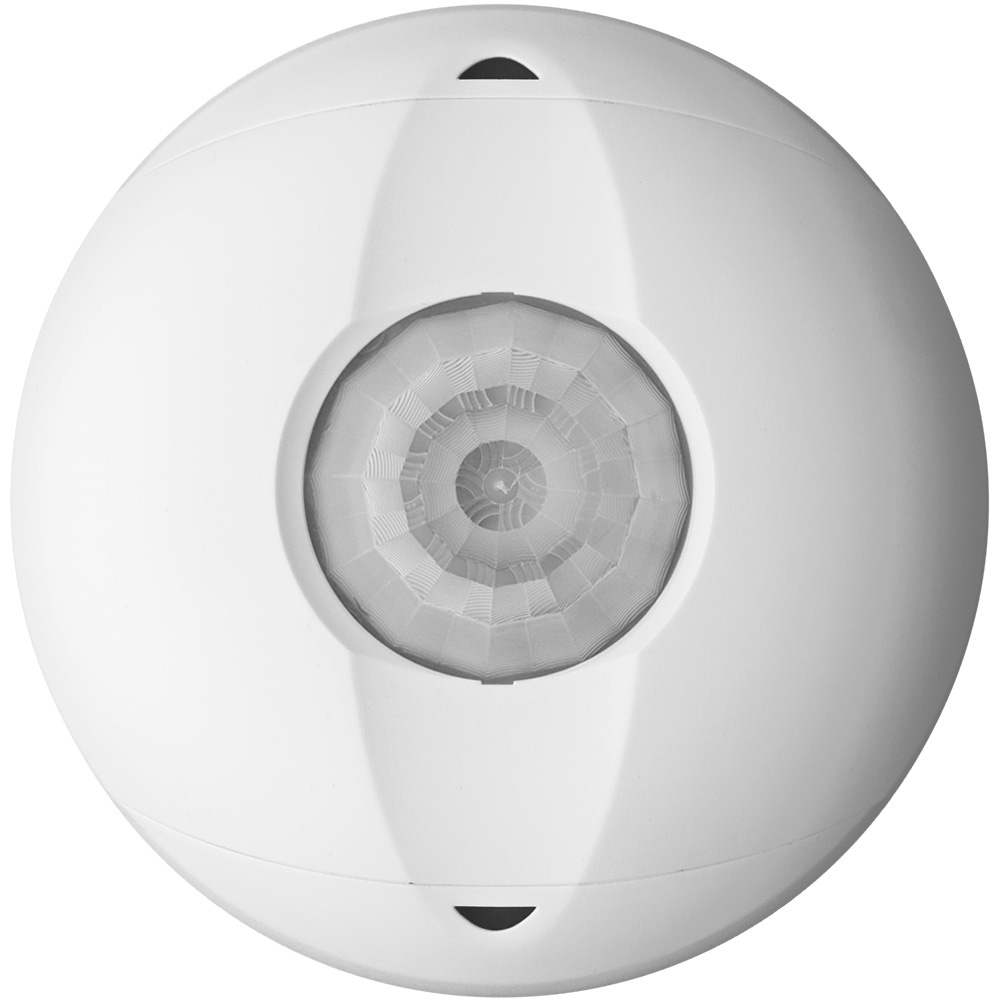

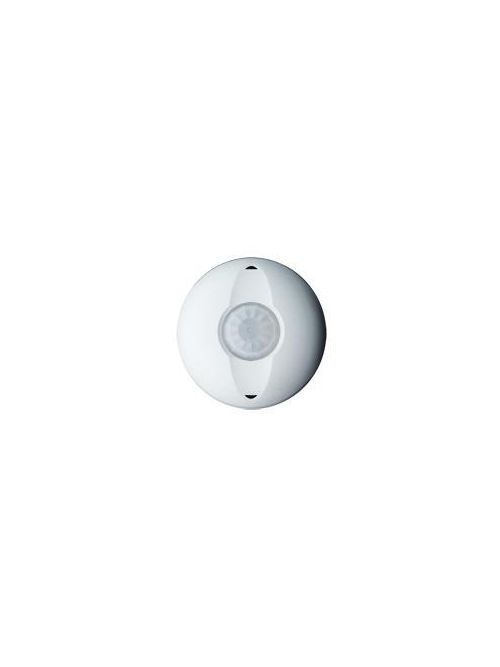

LEV OSC04-RIW LV CEILING W/ISLTED R

Features

• Small Size: Installed sensor appears almost invisible.
• Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
• Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
• Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
• Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
• Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
• Excellent Warranty: 5-Year Limited warranty.
• Typical Applications: Closet, Copy Room, Small Office, Storage Room, Lounge, Non-Partitioned Restroom or Vending Room

Specifications

Mechanical Specifications

• Pattern Degrees: 360
• Coverage (Sq.Ft.): 450
• Relay Type: Isolated Relay
• Operating Temperature: 32F to 104F 0C to 40C
• Operating Humidity: 0 Pct to 95 Pct Relative, Non-Condensing
• Major Motion Area: 24 Foot Diameter
• Minor Motion Area: 10 Foot Diameter
• Technology: Passive Infrared

Standards and Certifications

• NOM: 057
• Code Compliance: California Title 24
• Title 24 Compliant: Yes
• ANCE: Compliant
• ASHRAE: Standard 90.1 Compliant
• Input Voltage: 24VDC
• Load Rating: Uses Power Pack
• FCC: Compliant
• CUL/US: Listed 9034
• Output Voltage: 24VDC w/Short Circuit Protection
• Current Consumption: 15mA

Electrical Specifications

• PIR Lens Type: High Density
• Color: True White
• Sensor Weight: 5oz/142g
• Housing Material: High-Impact, Injection Moulded Plastic
• Wire Leads: Color Coded 6 Inch
• Voltage: 24 VDC
• LED Indicator: Red Infrared Motion

Product Features

• Code Compliance: California Title 24
• Housing Material: High-Impact, Injection Moulded Plastic
• Sensitivity Factory Preset: Infrared 75 Pct
• Pattern Degrees: 360
• Coverage (Sq.Ft.): 450
• Sensor Type: Ceiling Mount
• Standards and Certifications: CUL/US Cert
• Country Of Origin: Mexico
• Isolated Relay: Yes
• Input Voltage: 24VDC
• True White: Yes
• Manual Time Adjustment: 30s-30m, 6s Test Mode
• Warranty: 5-Year Limited
• Sensitivity Adjustment: 0 to 100 Pct
• Current Consumption: 15mA
• LED Disable: LEDS Enable/LEDS Disable
• Timer Factory Preset: 10 Minutes
• Color: True White
• Load Rating: Uses Power Pack
• Product Line: OSC04
• Adjustment: Self-Adjusting
• Technology: Passive Infrared
