Manufacturer Leviton
Mfg Catalog # OSC05-MAW
North Coast Part # 1166459


  • Small Size: Installed sensor appears almost invisible.
  • Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
  • Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
  • Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
  • Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
  • Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
  • Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
  • Excellent Warranty: 5-Year Limited warranty.
  • Typical Applications: Breakroom, Computer Room, Conference Rooms, Office Private, Office Executive, Zoned Office Area w/Cubicles, Zoned Office Open, File Room, Classroom, Lounge, All Restroom types, or Executive Workout Facility


Material Specifications

  • PIR Lens Type: High Density
  • Color: White
  • Qty of Transducer Pairs: 1
  • Sensor Weight: 5oz/142g
  • Housing Material: High-Impact, Injection Moulded Plastic
  • Wire Leads: Color Coded 6 Inch
  • Transducer Size: 16 mm Diameter
  • LED Indicator: Red Infrared Motion & Green Ultrasonic Motion

Mechanical Specifications

  • Pattern Degrees: 180
  • Coverage (Sq.Ft.): 500
  • Sensor Technology: PIR/Ultrasonic 40kHz
  • Major Motion Area: 23X23 Feet
  • Photo Cell: Ambient Override ON
  • Minor Motion Area: 17X17 Feet

Standards and Certifications

  • LED Disable: LEDS Enable/LEDS Disable
  • Manual Time Adjustment: 30s-30m, 6s Test Mode
  • Single/Multi-Tech Mode: Switchable ON/OFF PIR/ULTRA
  • Code Compliance: California Title 24
  • Timer Factory Preset: 10 Minutes
  • NAFTA Compliant: Yes
  • NOM: 057
  • Photocell Factory Preset: 3000 Lux (disable photocell)
  • ANCE: Compliant
  • ASHRAE: Standard 90.1 Compliant
  • FCC: Compliant
  • Photo Cell Adjustment: 20 to 3000 Lux
  • CUL/US: Listed 9034
  • Sensitivity Factory Preset: Ultrasonic 50 Pct Infrared 75 Pct
  • Sensitivity Adjustment: 0 to 100 Pct
  • Adjustment: Self-Adjusting
  • Title 24 Compliant: Yes

Electrical Specifications

  • Operating Humidity: 0 Pct to 95 Pct Relative, Non-Condensing
  • Operating Temperature: 32F to 104F 0C to 40C
  • Voltage: 24 VDC

Product Features

  • Manual Time Adjustment: 30s-30m, 6s Test Mode
  • Load Rating: Uses Power Pack
  • Made in USA: Yes
  • Code Compliance: California Title 24
  • Coverage (Sq.Ft.): 500
  • Sensor Type: Ceiling Mount
  • Color: White
  • Sensor Technology: PIR/Ultrasonic 40kHz
  • Standards and Certifications: CUL/US Cert
  • Country Of Origin: United States
  • Pattern Degrees: 180
  • Housing Material: High-Impact, Injection Moulded Plastic
  • Warranty: 5-Year Limited
  • Input Voltage: 24VDC
  • Output Voltage: 24VDC w/Short Circuit Protection
  • Product Line: OSC05
  • Photo Cell: Ambient Override ON
  • Adjustment: Self-Adjusting
  • Technology: Multi-Technology PIR/Ultrasonic
  • Current Consumption: 30mA


UPC 07847750861

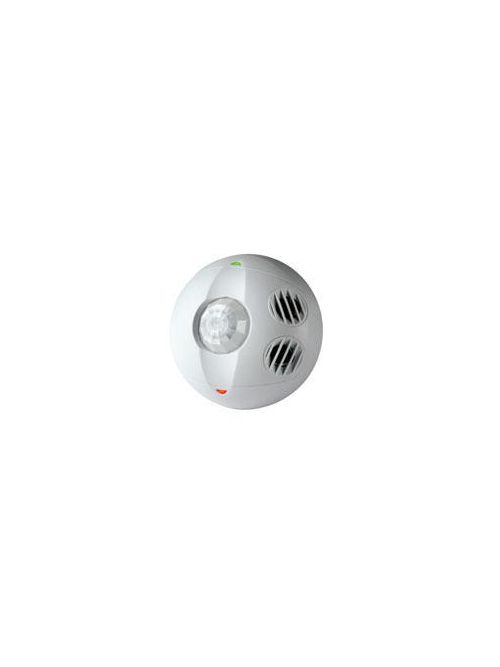

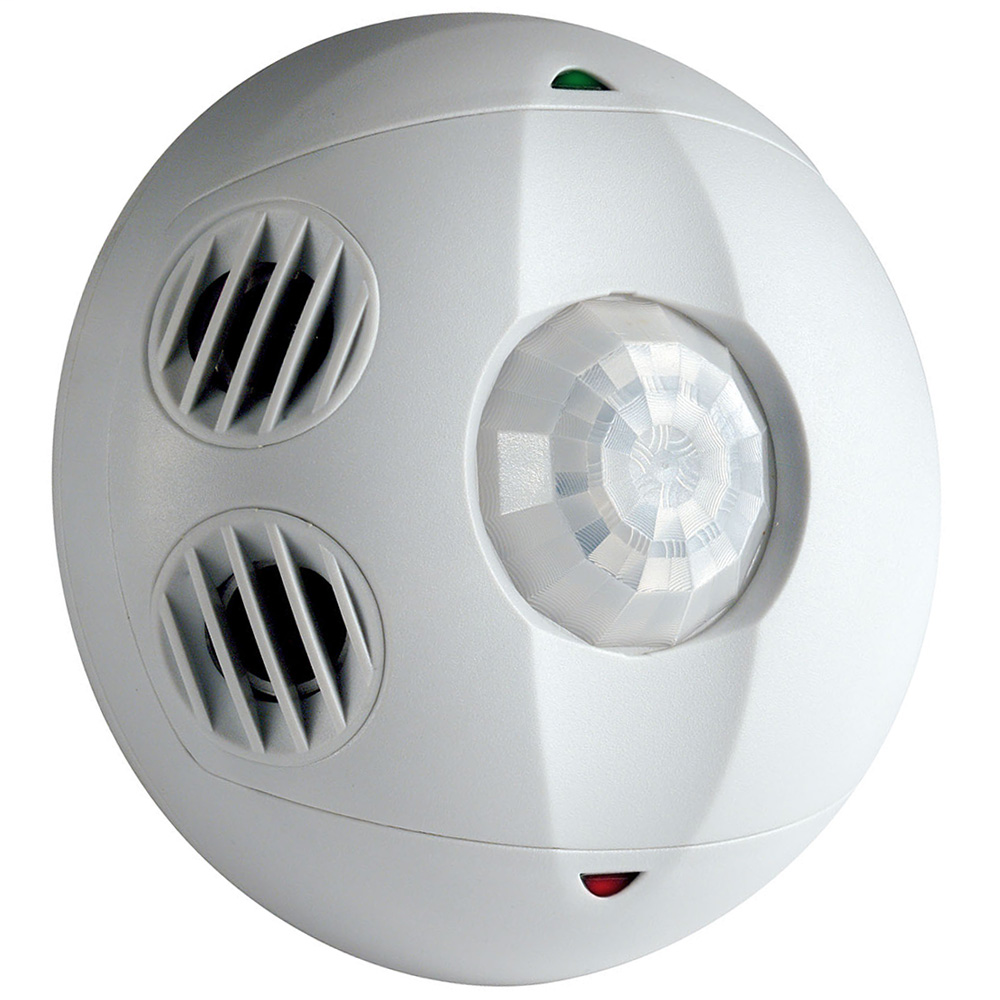

Item Long Description Leviton Low Voltage Occupancy Sensor, Ceiling Mounted, 500 Sq Ft Coverage, Multi-Tech- Pir & U/S), White
GTiN 00078477508619
Warranty Length 5 yr
Color White
Operating Temperature 104 degrees F
Voltage 24 Volt
Type Ultrasonic
Applications Commercial
Mounting Type Ceiling
Country of Origin USA
Standard ANCE (Compliant),ASHRAE (Standard 90.1 Compliant),CUL\US (Listed 9034),Code Compliance (California Title 24),FCC Compliant,NOM (057)
Input Voltage 24 V
Temperature Rating 0 To 40 C
Family Brand Name Leviton
Certifications CUL/US Cert
Made In USA Yes
Environmental Conditions Operating Humidity (0 To 95) %
Sensor Type Ceiling Mount
Coverage 500 sq-ft
