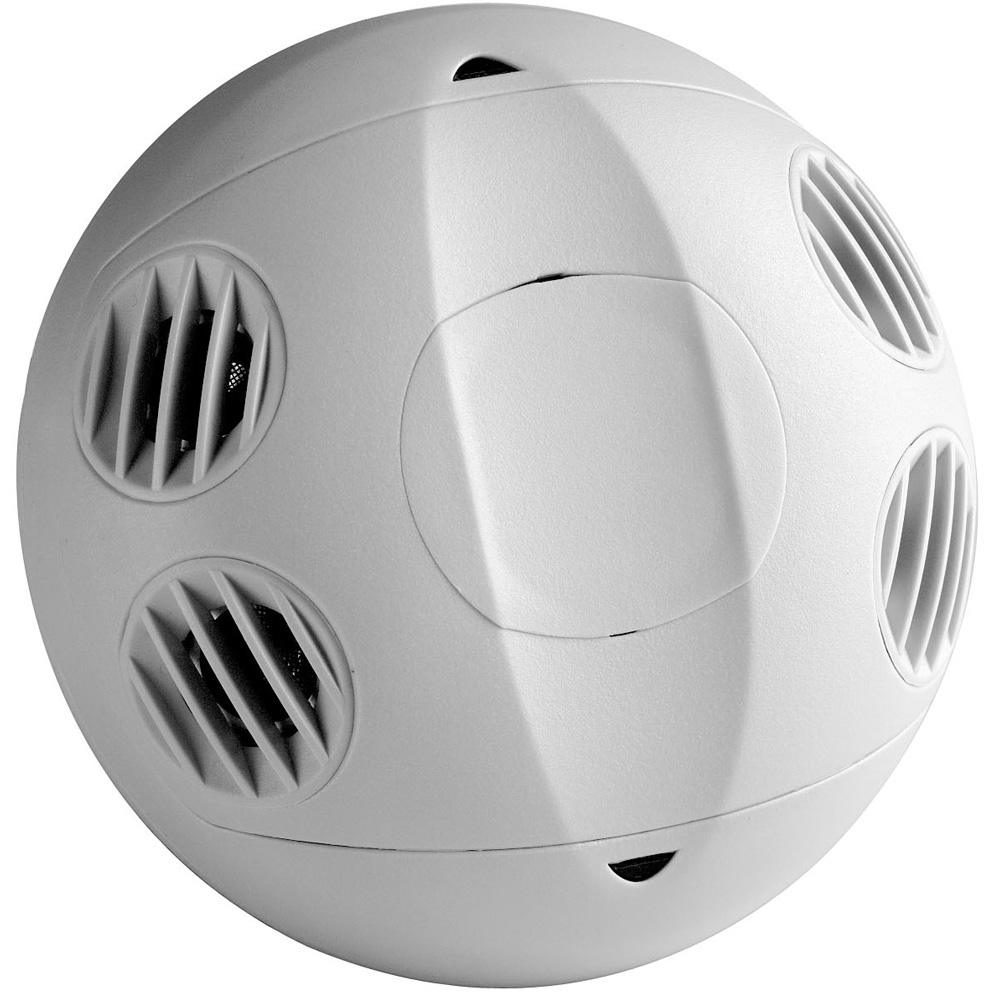

LEV OSC10-UAW OCC SEN CEILING U/S 1
$185.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # OSC10-UAW
North Coast Part # 1166460

Features

  • Small Size: Installed sensor appears almost invisible.
  • Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
  • Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
  • Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
  • Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
  • Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
  • Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
  • Excellent Warranty: 5-Year Limited warranty.
  • Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, File Room, Partitioned Restroom, Warehouse Open Area, Work Space General, Workout Facility, Gymnasium, or Hallway

Specifications

Material Specifications

  • Color: White
  • Qty of Transducer Pairs: 2
  • Sensor Weight: 5oz/142g
  • Housing Material: High-Impact, Injection Moulded Plastic
  • Wire Leads: Color Coded 6 Inch
  • Transducer Size: 16 mm Diameter
  • LED Indicator: Green Ultrasonic Motion

Mechanical Specifications

  • Pattern Degrees: 360
  • Coverage (Sq.Ft.): 1000
  • Sensor Technology: Ultrasonic 40kHz
  • Major Motion Area: 46X23 Feet
  • Photo Cell: Ambient Override ON
  • Minor Motion Area: 34X17 Feet

Standards and Certifications

  • NOM: 057
  • Code Compliance: California Title 24
  • Title 24 Compliant: Yes
  • NAFTA Compliant: Yes
  • ANCE: Compliant
  • ASHRAE: Standard 90.1 Compliant
  • Input Voltage: 24VDC
  • Load Rating: Uses Power Pack
  • FCC: Compliant
  • CUL/US: Listed 9034
  • Output Voltage: 24VDC w/Short Circuit Protection
  • Current Consumption: 40mA

Electrical Specifications

  • Operating Humidity: 0 Pct to 95 Pct Relative, Non-Condensing
  • Operating Temperature: 32F to 104F 0C to 40C
  • Voltage: 24 VDC

Product Features

  • Code Compliance: California Title 24
  • Housing Material: High-Impact, Injection Moulded Plastic
  • Photo Cell Adjustment: 20 to 3000 Lux
  • Sensitivity Factory Preset: Ultrasonic 50 Pct
  • Photo Cell: Ambient Override ON
  • Pattern Degrees: 360
  • Coverage (Sq.Ft.): 1000
  • Sensor Type: Ceiling Mount
  • Standards and Certifications: CUL/US Cert
  • Photocell Factory Preset: 3000 Lux (disable photocell)
  • Country Of Origin: United States
  • Input Voltage: 24VDC
  • Manual Time Adjustment: 30s-30m, 6s Test Mode
  • Warranty: 5-Year Limited
  • Made in USA: Yes
  • Sensitivity Adjustment: 0 to 100 Pct
  • Current Consumption: 40mA
  • LED Disable: LEDS Enable/LEDS Disable
  • Timer Factory Preset: 10 Minutes
  • Color: White
  • Sensor Technology: Ultrasonic 40kHz
  • Load Rating: Uses Power Pack
  • Product Line: OSC10
  • Adjustment: Self-Adjusting
  • Technology: Ultrasonic

Overview

UPC 07847750862
GTiN 00078477508626
Warranty Length 5 yr
Size 4.20 (Dia) x 1.55 D IN
Color White
Operating Temperature 104 degrees F
Voltage 24 Volt
Type Ultrasonic
Applications Commercial
Mounting Type Ceiling
Country of Origin USA
Standard ANCE Compliant,ASHRAE (Standard 90.1 Compliant),CUL\US (Listed 9034),Code Compliance (California Title 24),FCC Compliant,NOM (057)
Input Voltage 24 V
Temperature Rating 0 To 40 C
Family Brand Name Leviton
Certifications CUL/US Cert
Made In USA Yes
Environmental Conditions Operating Humidity (0 To 95) %
Sensor Type Ceiling Mount
Coverage 1000 sq-ft
