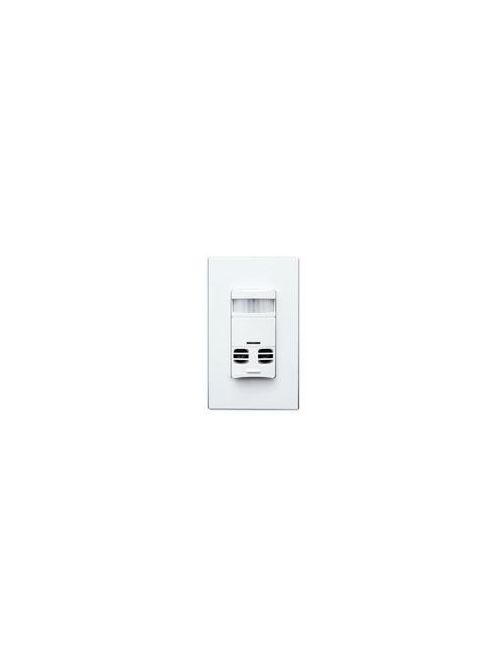

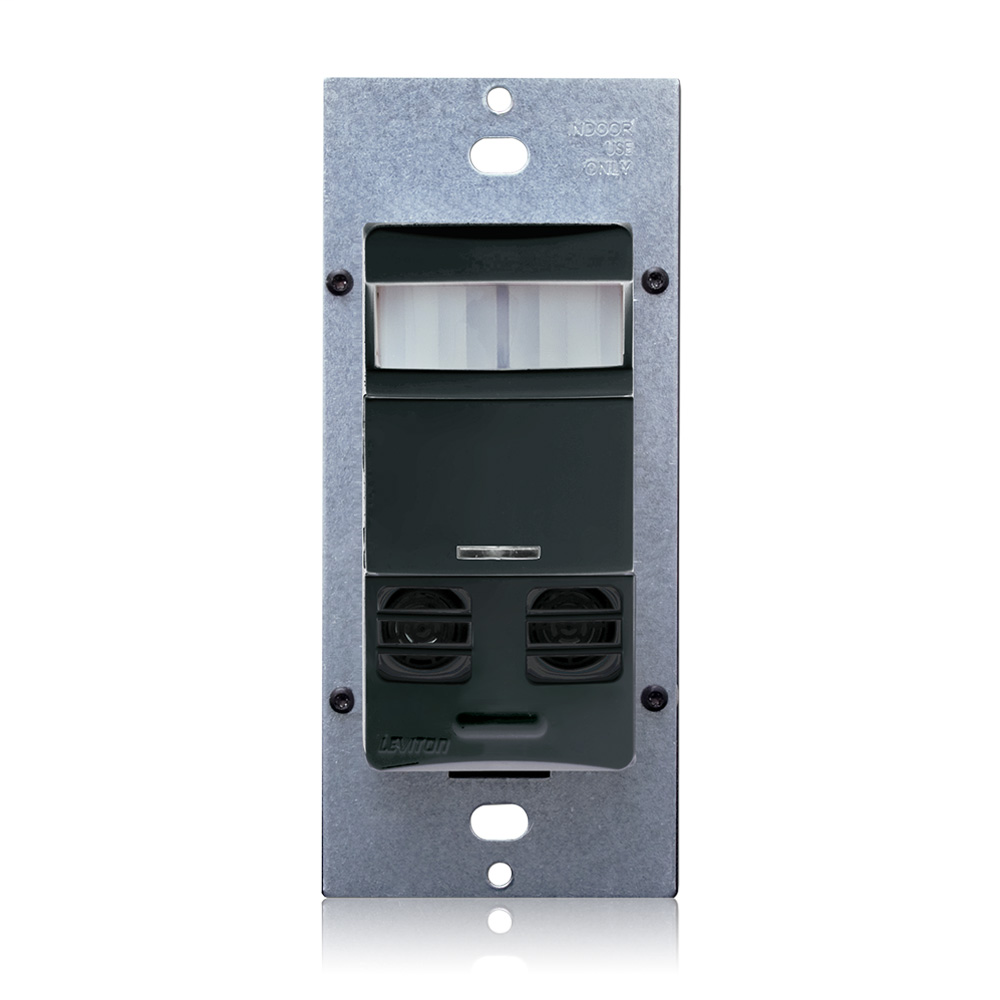

LEV OSSMT-GDE M/T OCC SNSR 1P NN, B
$99.38/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # OSSMT-GDE
North Coast Part # 673424

Features

  • Fast, simple Installation: Fits in a standard wall box and replaces a single-pole wall-switch; neutral and no neutral options available. Sensor can be ganged together with other units in a multiple-switch wall plate.
  • Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
  • Convenient Pushbutton provides manual-ON/OFF light switching at any time.
  • Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
  • Vandal resistant PIR lens.
  • Adjustable horizontal field-of-view (PIR may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens). No masking required.
  • Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
  • To comply with CED Title 24, LED indicator light flashes when sensor detects motion to verify detection is active. Green flashes for ultrasonic, red flashes for PIR.
  • Time: The delayed OFF time is preset at 30 minutes in the Auto Adapting mode. A choice of four delayed-OFF time settings are available: 30-seconds (for walking test purposes only), 10, 20, and 30 minutes for fixed time and auto adapting. The LED will flash when the adjusting knob is set to the indicated time value.
  • Ambient Light Recognition: Integrated light sensor prevents lights from turning on when the room is adequately illuminated by natural light.
  • Self-Adaptive Technology: Callbacks for adjustment are eliminated. Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode.
  • Exclusive Walk-through Feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy.
  • Vacancy Confirmation: When the time out expires and the relays turn OFF, a 30 second (OSSMT-G) or 40 second (OSSMT-M) vacancy confirmation exists to turn the relays back on.
  • False detection circuitry.
  • Small Motion Sensitivity (U/S): Ultrasonic technology provides excellent minor motion sensitivity.
  • Ability to disable U/S (OSSMT-M). For added flexbility, OSSMT-G has the ability to disable both PIR and U/S.
  • Presentation Mode feature: For slide or film presentations, allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied.
  • Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
  • True Zero-Cross Relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts.

Specifications

Mechanical Specifications

  • Switch Type: Single-Pole
  • Neutral Wire Connection: Not Required

Standards and Certifications

  • Title 24 Compliant: Yes
  • NAFTA Compliant: Yes

Electrical Specifications

  • Frequency: 50/60Hz
  • Voltage: 120/277 VAC

Product Features

  • Code Compliance: California Title 24
  • Power Pack: External Power Pack Not Required
  • Mounting: Wall Switch
  • Relative Humidity: 20% to 90% non-condensing
  • Device Type: Occupancy Sensor
  • Operating Temperature: 0C to 50C
  • Coverage (Sq.Ft.): 2400
  • Sensor Type: Wall Switch
  • Switch Type: Single-Pole
  • Standards and Certifications: UL/cUL
  • Country Of Origin: Mexico
  • Neutral Wire Connection: Not Required
  • Photocell: Internal
  • Pattern: 180°
  • Time Delay: 30s-30m
  • Consumption (mA): N/A
  • Wallplate: Order Separately
  • Warranty: 5-Year Limited
  • Storage Temperature Range: -10°C to 85°C
  • Color: Black
  • HVAC Relay: N/A
  • Load Rating: 800W@120V INC 1200VA@120V 2700VA@277V FL
  • Grade: Commercial
  • LED Color: Green and Red
  • Voltage: 120/277 VAC
  • Motor: 1/4 HP @ 120V
  • Product Line: OSSMT
  • Mounting Height (Ft.): 4 Ft.
  • Adjustment: Self-Adjusting
  • Technology: Multi-Technology PIR/Ultrasonic
  • Size: 4.06" H x 1.75" W x 1.85" D (103.2mm x 44.4mm x 47.2mm)

videos

Overview

UPC 07847748701
GTiN 00078477487013
Warranty Length 5 yr
Size 46 H x 1.75 W x 1.85 D IN
Color Black
Operating Temperature 0 C
Voltage 347 Volt
Type Single-Pole Switch,Occupancy Sensor
Applications Commercial
Mounting Type Wall
Grade Commercial
Country of Origin Mexico
Standard CSA,ETL\cETL Listed,NAFTA (CF434),UL Listed,CEC Title 24 Compliant,FCC Compliant,CUL
Frequency 50/60 Hz
Switch Type Single-Pole
Family Brand Name Leviton
Certifications UL/cUL
Power Consumption 120 V
Environmental Conditions Operating Temperature (0 To +40) C
Sensor Type Wall Switch
LED Color Red,Green
Device Type Occupancy Sensor
Coverage 2400 sq-ft
Storage Temperature -10 To 85 C
Sub Brand Decora
