LEV P1020-12S PDUBAS HORZ 120V1PH 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$141.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # P1020-12S
North Coast Part # 331907

Features

  • 18-gauge cold-rolled steel enclosures
  • Overload protection with easy-to-reset circuit breakers
  • Dual-pole breakers on 208V models for added safety
  • 30A units feature UL489 rated circuit breakers
  • LED indicators for “Power On” and “Polarity/Ground OK”
  • Grounding connection point on all models
  • Available for Zero-U and rack-mount applications

Specifications

Product Features

  • Amperage: 15 A
  • Product Type: Basic PDU
  • Series: P1000 Series
  • Country Of Origin: Mexico
  • Plug Type: 5-15P
  • Voltage: 120 VAC
  • Configuration: Rack Mount

Categories

Overview

UPC 07847730882

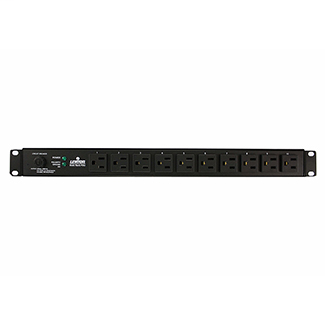

Item Long Description Horizontal Power Distribution Unit 120V 15 Amp NEMA 5-15P Plug Type 10 Receptacles with 12 ft. Power Cord, Black
GTiN 00078477308820
Length 17.5 in
Width 4.50 in
Operating Temperature 0 To 40 C
Type Base, Horizontal
Product Type Basic PDU
Applications For Data Centers, Computer Rooms, other High-Demand Environments
Mounting Type Rack
Height 1.75 in
Country of Origin Mexico
Standard CULus Listed,UL 1363 (15 & 20 Amp), UL 60950-1 (30 AMP)
Input Voltage 120 V
Family Brand Name LEVITON
Amperage 15 Amp
Cable Length 12 FT
Environmental Conditions Non Operating Temperature (-10 To +70 DEG C)
Output Voltage 120 V
Operating Frequency 50/60 Hz
Enclosure Painted Steel
Plug Type 5-15P
Sub Brand P1000 Series
Material 18 ga Cold Rolled Steel
Temperature Rating 0 - 40 C
Number of Outlets 10
Cord Length 12 ft
Blade Dimensions 17-1/2 in L x 4-1/2 in W x 1-3/4 in H
