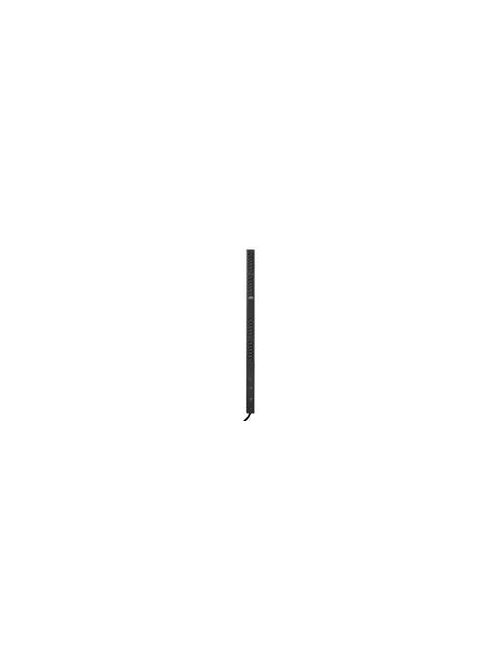

LEV P1047-10L PDU 0RU 208V 30A (24)
Product image thumbnail 0
Product image thumbnail 1
$427.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # P1047-10L
North Coast Part # 759842

Features

  • 18-gauge cold-rolled steel enclosures
  • Overload protection with easy-to-reset circuit breakers
  • Dual-pole breakers on 208V models for added safety
  • 30A units feature UL489 rated circuit breakers
  • LED indicators for “Power On” and “Polarity/Ground OK”
  • Grounding connection point on all models
  • Available for Zero-U and rack-mount applications

Specifications

Product Features

  • Amperage: 30 A
  • Product Type: Basic PDU
  • Series: P1000 Series
  • Country Of Origin: Mexico
  • Plug Type: L6-30P
  • Voltage: 208 VAC
  • Configuration: Zero-U

Categories

Overview

UPC 07847730895
GTiN 00078477308950
Length 2.19 in
Width 2 in
Operating Temperature 0 To 40 C
Type Base, Vertical
Product Type Basic PDU
Applications For Data Centers, Computer Rooms, other High-Demand Environments
Mounting Type Zero-U
Height 48 in
Country of Origin Mexico
Standard CULus Listed,UL 1363 (15 & 20 Amp), UL 60950-1 (30 AMP)
Input Voltage 208 V
Family Brand Name Leviton
Amperage 30 Amp
Cable Length 10 FT
Environmental Conditions Non Operating Temperature (-10 To +70 DEG C)
Output Voltage 208 V
Operating Frequency 50/60 Hz
Enclosure Painted Steel
Plug Type L6-30P
Sub Brand P1000 Series
Material 18 ga Cold Rolled Steel
Temperature Rating 0 - 40 C
Cord Length 10 ft
Blade Dimensions 2.19 in L x 2 in W x 48 in H
Number of Poles 2 Pole
