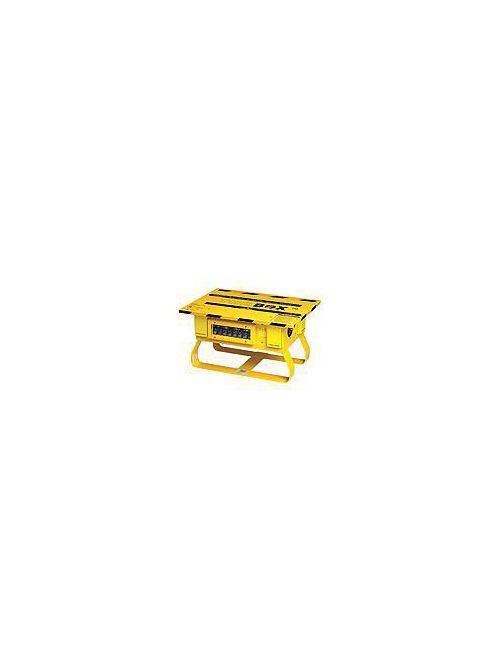

LEV PB101 PORTBL PWR DIST BOX LCKIN
Product image thumbnail 0
Product image thumbnail 1
$1,244.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # PB101
North Coast Part # 607099

Specifications

Material Specifications

  • Color: Yellow
  • Housing Material: Reinforced Metal

Standards and Certifications

  • Warranty: 1-Year Limited
  • NOM: 057
  • NEMA: WD-6
  • OSHA: Reg 20, Part 1926, Subpart K for open-neutral GFCI
  • ANSI: C-73
  • UL 943: Class A (GFCI)
  • CSA C22.2: File LR-57811
  • UL Listed: E-48380

Product Features

  • Color: Yellow
  • Country Of Origin: Mexico

Mechanical Specifications

  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Power Inlet: 50A 125/250 Volt 3P 4W, Grounding Non-NEMA
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • 30 Amp 250V Outlet: One L6-30R Locking Non-GFCI Protected
  • Feed-Through Outlet: 50A 125/250 Volt 3P 4W, Grounding Non-NEMA
  • 20 Amp Outlets: 6 L5-20R Locking GFCI Protected

Electrical Specifications

  • Power Center Rating: 50A 125/250 Volt
  • Dielectric Voltage: Withstands 1500V per UL498
  • Current Interrupting: 2 kA
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Grounding: GFCI Grounding
  • Trip Level: 5mA plus or minus 1mA

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -35C to +66C
  • Housing Rating: UL Listed for Outdoor Use

Categories

Overview

UPC 07847708571
GTiN 00078477085714
Length 22 in
Warranty Length 1 yr
Width 16 in
Color Yellow
Operating Temperature -35 C
Type Power Distribution Unit
Applications Commercial
Height 2 in
Country of Origin Mexico
Standard ANSI C-73
Family Brand Name Leviton
NEMA WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL94
Grounding GFCI Grounding
Temperature Rise 150 %
