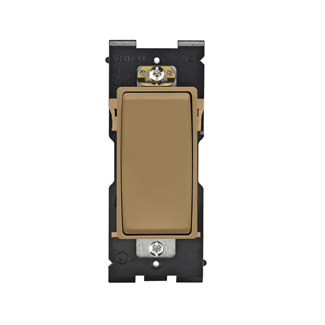

LEV RE154-WC WC RENU ELECTROMECH SW
$34.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # RE154-WC
North Coast Part # 1166798

Features

  • 15A-120/277VAC switch for 4-way applications, available in 20 popular colors to match any d├ęcor
  • Use with two 3-way switches to control light(s) from three or more locations
  • Once installed, Renu 4-way switches can be updated to a new color by ordering an RK15X color change kit
  • Switch face easily snaps OFF and ON to change color
  • To complete the look, snap on a matching or contrasting Renu screwless wallplate (sold separately)
  • Turns the electrical device into a decorative, easily updated accessory
  • Shallow size is easy to install in any wallbox
  • Self-grounded when installed in a properly grounded metal wallbox
  • Back and side wired for fast, easy installation
  • The selection also includes single-pole and 3-way switches
  • Use only with Renu wallplates

Specifications

Product Features

  • Amperage: 15 A
  • Ratings: 15A-120/277V
  • Warranty: 5 Year Limited
  • HP Rating: 1/2HP-120V 2HP-240V-277V
  • Color: Warm Caramel
  • Standards and Certifications: cULus
  • Strap Material: Steel
  • Country Of Origin: China
  • Device Type: Switch
  • Body Material: Polycarbonate
  • Color Change Kit: RK15X
  • Max. Amperage: 15 Amp
  • Grounding: Self-Grounding Clip and Green Ground Screw
  • Termination: Back & Side
  • Switch Type: 4-Way
  • Actuator Material: Thermoplastic
  • Product Family: Renu

videos

Overview

UPC 07847753264
GTiN 00078477532645
Warranty Length 5 yr
Color Warm Caramel
Voltage 120/277 Volt
Type Dimmer
Material Polycarbonate
Applications Residential
Mounting Type Wallplate
Country of Origin China
Standard CULus Listed
Connection Type Back Wired,Quickwired,Side Wired
Horsepower 1/2 hp
Switch Type 4-Way
Body Material Polycarbonate
Family Brand Name Leviton
Certifications CULus
Grounding Green Ground Screw,Self-Grounding
TC Connection Back Wired;Side Wired;Quickwired
Actuator Rocker
Amperage 15 Amp
Max Current 15 A
Contact Rating 120/277 V
Number of Poles 4 Pole
Device Type Switch
Sub Brand Renu
