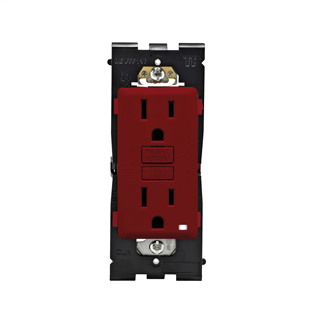

LEV REG15-RE RENU 15A TR GFCI RCPT
Product image thumbnail 0
Product image thumbnail 1
$37.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # REG15-RE
North Coast Part # 1278167

Features and Benefits

  • 15A-125V @ Outlet, 20A-125V Feed-Through
  • GFCIs are required by the National Electrical Code (NEC) in kitchens, bathrooms and wet areas of the home
  • Tamper-resistant to meet NEC child safety requirements for new or renovated residential construction
  • Built-in shutters help prevent access by most foreign objects
  • Available in 20 popular colors to match any d├ęcor
  • Once installed, Renu GFCI outlets can be updated to a new color by ordering an RKG15 color change kit
  • GFCI face easily snaps OFF and ON to change color
  • To complete the look, snap on a matching or contrasting Renu screwless wallplate (sold separately)
  • Turns the electrical device into a decorative, easily updated accessory
  • Shallow size is easy to install in any wallbox
  • Reset Lockout feature prevents Reset if GFCI is damaged and cannot respond to a ground fault
  • Self-grounded when installed in a properly grounded metal wallbox
  • Back and side wired for fast, easy installation
  • Terminals designed to withstand high torque and resist wire pullout
  • 20A tamper-resistant GFCI is also available
  • Use only with Renu wallplates

Technical Information

Product Features

  • Country of Origin: China
  • Product Family: Renu
  • Grounding: Self-Grounding Clip and Green Ground Screw
  • Feature: SmartlockPro Slim
  • Ratings: 15A-125V@ Outlet, 20A-125V Feed-Through
  • NEMA: 5-15R
  • Pole: 2
  • Wire: 3
  • Trip Level: Class A, 5mA plus or minus 1mA
  • Termination: Back & Side
  • Face Material: Engineering Grade Polymer
  • Body Material: Polycarbonate
  • Strap Material: Galvanized Steel
  • Color: Red Delicious
  • Standards and Certifications: cULus
  • Warranty: 5 Year Limited
  • Color Change Kit: RKG15
  • Device Type: GFCI Duplex Outlet

Support

Overview

UPC 07847753501
GTiN 00078477535011
Length 1.45 in
Warranty Length 5 yr
Width 1.75 in
Color Red Delicious
Operating Temperature -35 to +66 DEG C
Voltage 125 Volt
Type Duplex Outlet;Ground Fault Circuit Interrupter
Material Polycarbonate
Applications Residential, Commercial
Height 4.63 in
Grade Engineering Grade
Country of Origin China
Standard CULus
Frequency 60 Hz
Connection Type Side Wired,Back Wired
Face Material Polymer
Body Material Polycarbonate
Family Brand Name Leviton
NEMA 5-15R
Termination Type Side,Back
Grounding Green Ground Screw,Self-Grounding
Contact Material Double-Wipe Brass
TC Connection Back Wired;Side Wired
Amperage 15 Amp
Trip Point 5mA Plus Or Minus 1mA
Trip Type Class A
Number of Poles 2 Pole
Number of Wires 3
Device Type GFCI Duplex Outlet
Interrupt Rating 10 KAMP
Trip Range 5 plus or minus 1 MILAMP
Sub Brand Renu
