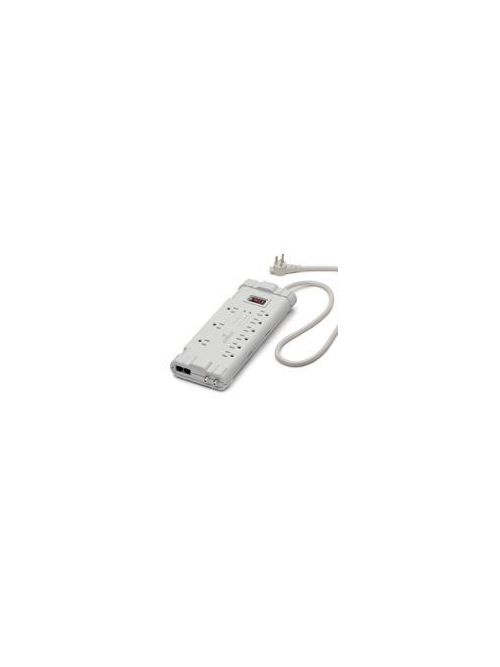

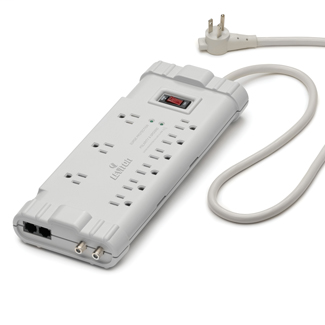

LEV S2000-PTC STRIP PWR 9OUT TEL/CO
$66.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # S2000-PTC
North Coast Part # 663792

Specifications

Material Specifications

  • Enclosure: Plastic
  • Enclosure Material: ABS Molded Plastic

Warranty

  • Warranty: 5-Year Limited

Standards and Certifications

  • NOM: 057
  • ANSI/IEEE Category A, B & C: C-62.41 & 62.45
  • UL1449 3rd Edition: cULus Listed

Electrical Specifications

  • Amperage: 15 A
  • Surge Protection: Yes
  • Grade: Commercial
  • Number of Receptacles: 9
  • Cord Length: 6 Foot
  • Voltage: 120 VAC
  • Surge Technology: MOV
  • Frequency: 50/60Hz

Performance Data

  • Joules Rating: 2020
  • MCOV: 150V
  • Voltage Protection Rating (VPR) L-N, L-G, N-G: 500V, 700V, 700V
  • Maximum Surge Current Rating: 67.5kA
  • Noise Filtering: -10dB to -20dB (@5M-100MHz)

Overview

UPC 07847727581
GTiN 00078477275818
Warranty Length 5 yr
Size 4.46 H x 11.75 W x 1.81 D IN
Voltage 120 Volt
Type Power Strip
Material ABS
Applications Commercial
Grade Commercial
Standard ANSI\IEEE (Category C-62.41, 62.45),UL1449,CULus Listed,NOM Certified (057),NEMA
Frequency 50/60 Hz
Family Brand Name Leviton
Amperage 15 Amp
Enclosure Material Plastic
Indicator Indicator Light
Number of Outlets 9
Blade Dimensions 11-3/4 in W x 1.81 in D x 4.46 in H
