Manufacturer Leviton
Mfg Catalog # S432-P9
North Coast Part # 1834544


Material Specifications

  • Housing: Halogen-free engineering polymer
  • Contacts: Nickel Plated Brass

Standards and Certifications

  • NOM Certified: Yes
  • RETIE Certified: Yes
  • IEC Rating: 60309-1 and 60309-2
  • CE: Marked

Product Features

  • Color: Blue
  • Device Type: Plug
  • Configuration: International
  • Country Of Origin: Slovakia

Mechanical Specifications

  • Cord Grip Range (in): .453 - .827
  • Terminal Accom.: 14-10 AWG

Electrical Specifications

  • Amperage: 32 A
  • Wire: 5
  • Pole: 4
  • Frequency: 50/60Hz
  • Voltage: 208/250 VAC

Environmental Specifications

  • Operating Temperature: -25°C to 40°C
  • IK Rating: IK08
  • IP Rating: IP44


UPC 07847767554

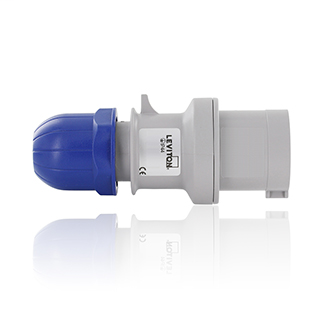

Item Long Description 32 Amp, 208-250 Volt, 3P+N+E (4P, 5W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Plug, Industrial Grade, IP44, Splashproof - BLUE
GTiN 00078477675540
Color Blue
Operating Temperature -25 C
Type Pin And Sleeve
Applications Industrial
Country of Origin Slovakia
Rating IEC 60309-1,IEC 60309-2
Standard IP44
Frequency 50/60 Hz
Family Brand Name Leviton
Wire Count 5
Housing Material Halogen-free Engineering Polymer
Contact Material Nickel-Plated Brass
Amperage 32 Amp
IP Rating IP44
Number of Poles 4 Pole
Device Type Plug
