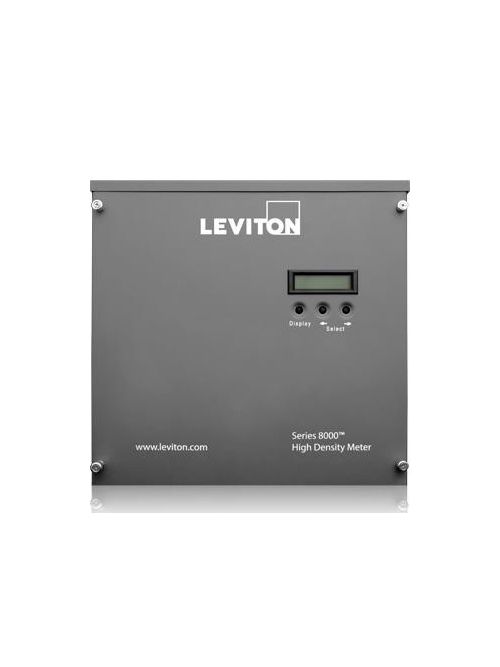

LEV S8120-122 PHASE CONFIG 12X2 WH
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$5,047.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # S8120-122
North Coast Part # 1010691

Features

  • Building automation integration and tenant metering
  • Multiple point meter-installation and hardware-savings
  • Can monitor as low as 2A
  • Provides multiple electric loads in one device
  • Monitors up to 24 current transformers - 8 (3) phase, 12 (2) phase or 24 single phase loads
  • 100 - 5,000 amp current transformers
  • ModBus TCP, ModBus RTU (RS-485) and BACnet IP standard feature
  • Measures kilowatt hours, kW demand, volts, amps
  • Interval and net metering
  • Configurable via Ethernet or simple ModBus RTU network to BMS or VerifEye software solutions for tenant billing or measurement & verification (M&V)

Specifications

Electrical Specifications

  • Amperage: 100 A & 200 A
  • Voltage: 120/208/240 VAC 1PH 3W

Product Features

  • Communication: ModBus/RTU, ModBus/TCP, TCP/IP, PPP, HTTP/HTML, FTP, NTP, XML, SNMP-Trap, Optional BACnet/IP
  • Country Of Origin: Canada
  • CTs Included: No Meter Only
  • Product Line: Series 8000
  • Meter Configuration: Branch Circuit Monitor
  • Enclosure: Indoor

Overview

UPC 07847766548
GTiN 00078477665480
Voltage 120 Volt
Type Submeter
Communication Type BACnet/IP,FTP,HTTP/HTML,ModBus/RTU,ModBus/TCP,NTP,PPP,SNMP-Trap,TCP/IP,XML
Applications Residential
Country of Origin Canada
Family Brand Name Leviton
Number of Phases 1 Phase
Enclosure Type Indoor
Amperage 100 Amp
Sub Brand VerifEye
