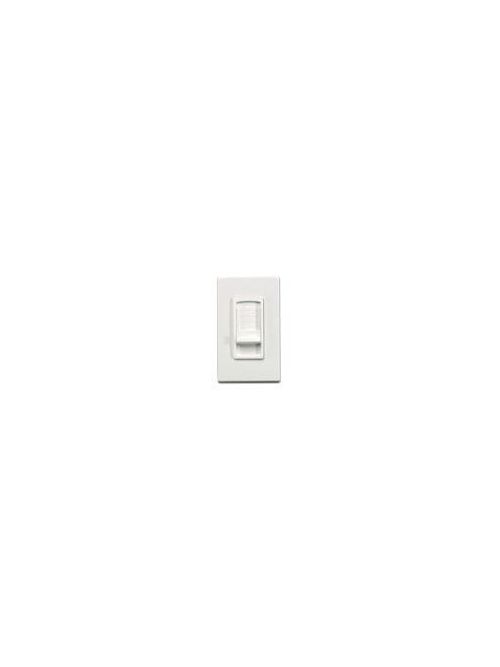

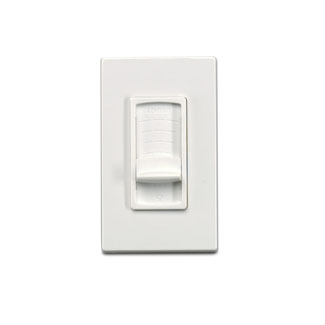

LEV SGVSM-W WH STRAUSS IMPEDANCE MA
$98.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # SGVSM-W
North Coast Part # 419625

Features

  • The Impedance Matching Volume Control provides for multi-room distribution without the necessity of using external impedance matching devices
  • Adjustable impedance settings enable configuring systems from two-to-six controls
  • Features Decora® slide control with precision 12-positon switch (including full OFF position)
  • Transformer-Free attenuation technology ensures linear frequency response, signal integrity and high power handling ability
  • Cermetile resistors replace conventional autoformers to preserve audio signal purity
  • Detachable cable connector is compatible with all standard speaker wire sizes (14-18 gauge)
  • Decora® designer styling adds an elegant touch to any décor
  • Can be used outdoors when mounted with any compatible Decora® all weather cover
  • Provides the ability to adjust the volume of a pair of stereo speakers within a single listening zone
  • Designed to be mounted in a single-gang wallswitch box
  • Connector type: 0.200” eight pin in-line straight Phoenix plug with screw terminals (included)

Specifications

Product Features

  • Category: Volume Controls
  • Color: White
  • Country Of Origin: Mexico
  • Subcategory: Volume Control
  • Product Line: Decora

videos

Overview

UPC 07847729093
GTiN 00078477290934
Length 31 in
Width 2.62 in
Color White
Type Transformer-Free, Impedance Matched
Material Polycarbonate
Applications Impedance Match Volume Control
Mounting Type Wall Mount
Height 46 in
Country of Origin Mexico
Family Brand Name Leviton
Blade Dimensions 46 in
Enclosure Material Polycarbonate
Sub Brand Decora Strauss
