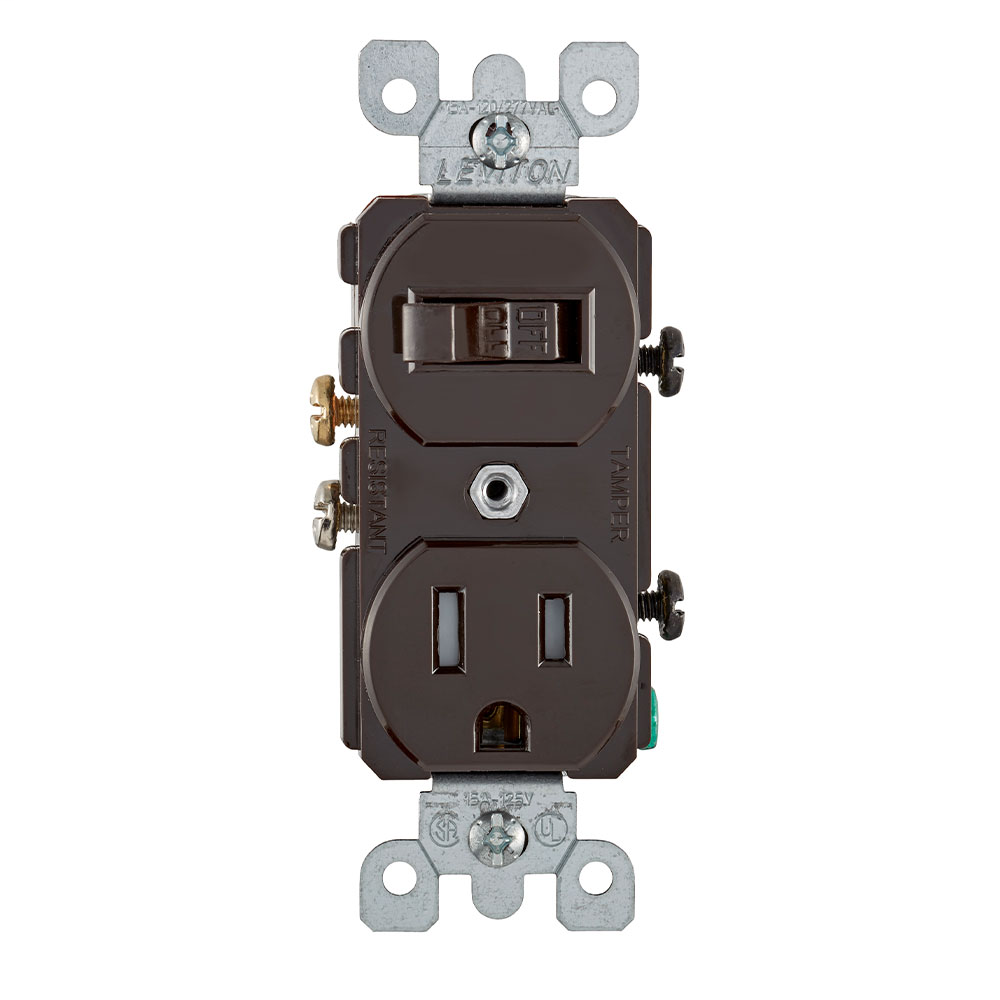

LEV T5225 15A TR SWITCH/RCT COMBO
$23.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # T5225
North Coast Part # 605330

Specifications

Material Specifications

  • Color: Brown
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105

Electrical Specifications

  • Receptacle Amperage: 15 Amp
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Receptacle Voltage: 125V AC
  • Temperature Rise: Maximum 30 degrees C rise
  • Switch Amperage: 15 Amp
  • Grounding: Grounding
  • Switch Voltage: 120V AC
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Amperage: 15 A
  • NEMA: 5-15R
  • Color: Brown
  • Country Of Origin: Mexico
  • Product Type: Switch/Outlet Combo
  • Type: Duplex Style Combination Switch

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-12 AWG
  • Torque Range: 12-14 inch pounds
  • Termination: Side

AC Horsepower Ratings

  • Max. Amperage: 12 Amp
  • HP Rating: 1/2HP-120V

Environmental Specifications

  • Operating Temperature: -40°C to 65°C

Overview

UPC 07847737858
GTiN 00078477378588
Length 1.31 in
Warranty Length 2 yr
Width 16 in
Color Brown
Operating Temperature -40 C
Voltage 120 Volt
Type Duplex, Tamper-Resistant
Material Thermoplastic, Steel Strap
Product Type Switch/Outlet Combo
Applications Commercial
Mounting Type Screw, Recessed/Flush
Height 4.2 in
Country of Origin Mexico
Style Combination Switch
Standard ANSI C-73
Torque 12-14 lb-in
Horsepower 1/2 hp
Body Material Thermoplastic
Family Brand Name Leviton
NEMA 5-15R,WD-1,WD-6
Dielectric 1500 V
Grounding Grounding
Amperage 15 Amp
Max Current 12 A
Number of Poles 1 Pole
Temperature Rise 30 C
Blade Dimensions 1.31 in L x 16 in W x 4.2 in H
