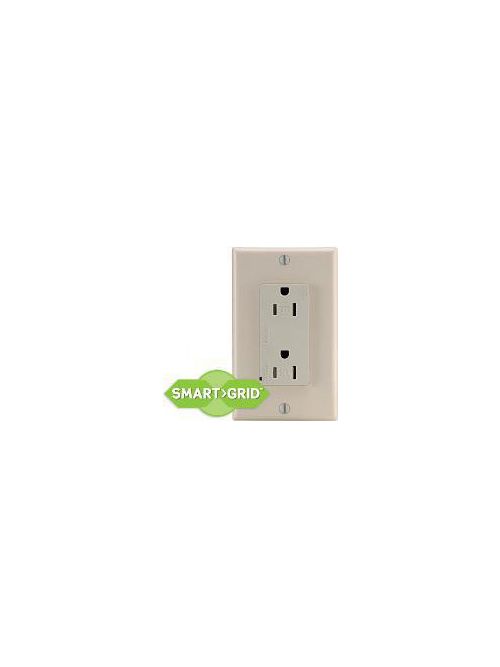

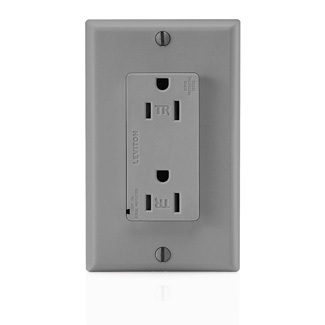

LEV T5280-GY 15A TR SURGE RECPT
$62.26/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # T5280-GY
North Coast Part # 1342262

Specifications

Material Specifications

  • Ground Clips: Brass-Plated Steel
  • Line Contacts: Brass Triple-Wipe
  • Face Material: Nylon
  • Terminal Screws: Brass-Plated Steel
  • Shutter Mechanism: Delrin® Acetal
  • Grounding Screw: Brass-Plated Steel
  • Body Material: Polycarbonate
  • Yoke: Zinc-Plated Steel
  • Clamp Nuts: Zinc-Plated Steel

Warranty

  • Warranty: 5-Year Limited

Product Features

  • Function: Surge Protective
  • NEMA: 5-15R
  • Color: Gray
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Feature: Tamper-Resistant
  • Device Type: Duplex Receptacle Outlet
  • Grade: Commercial Specification Grade

Standards and Certifications

  • ANSI: C-73
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • NEMA: WD-6
  • NOM: 057

Performance Data

  • Noise Rejection: -30dB at 500kHz-30MHz
  • Nominal Discharge Current Rating: 3kA
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Diagnostics: Indicator Light
  • Short Circuit Current Rating: 5kA
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Joules Rating: 720
  • MCOV: 150V rms

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds
  • Termination: Back or Side Wire

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Environmental Specifications

  • Operating Temperature: -40°C to 60°C

videos

Overview

UPC 07847743430
GTiN 00078477434307
Warranty Length 5 yr
Size 4.21 H x 1.77 W x 1.56 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Type 3 SPD
Material Polycarbonate
Applications Commercial
Mounting Type Box
Grade Commercial Specification
Country of Origin Mexico
Standard ANSI C-73
Connection Type Side Wired,Back Wired
Torque 14-16 lb-in
Face Material Nylon
Body Material Polycarbonate
Family Brand Name Leviton
Wire Count 3
NEMA WD-6,5-15R
Dielectric 2000 V
Grounding Self-Grounding
TC Connection Back Wired;Side Wired
Amperage 15 Amp
Short Circuit Current 5 kA
Environmental Conditions Flammability (Rated V-2 per UL94)
Number of Poles 2 Pole
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Indicator Indicator Light
Sub Brand Decora Plus
