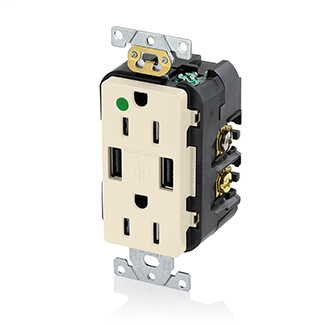

LEV T5632-HGT USB HSP GRD TR RCPT 1
Product image thumbnail 0
Product image thumbnail 1
$49.08/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # T5632-HGT
North Coast Part # 1016232

Specifications

Material Specifications

  • Ground Clips: Brass
  • Flammability: Rated V-0 per UL 94
  • Face Material: PBT
  • Terminal Screws: Steel
  • Temperature Rise: Max 30C after 100 cycles OL
  • Strap Material: Steel
  • Grounding Screw: Steel
  • Line Contacts: Brass
  • Body Material: PBT Thermoplastic polyester resin
  • Terminal Clamp: Brass

Warranty

  • Warranty: 5-Year Limited

Standards and Certifications

  • ANSI: C-73
  • Certification/Listing: cCSAus, NOM-ANCE
  • NEMA: WD-1 & WD-6
  • Applicable Standards: UL 498 and 1310, CSA C22.2 Nos. 42 and 223

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per CSA
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-15R
  • Color: Light Almond
  • Country Of Origin: China
  • Grade: Heavy-Duty Hospital Grade
  • Feature: Tamper-Resistant, with USB, Smooth Face
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-12 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Operating Temperature: -10°C to 40°C

videos

Categories

Overview

UPC 07847768555
Item Long Description Hospital Grade. Combination Tamper-resistant Duplex. Decora Receptacle And Dual-port USB Charger. Nema 5-15R 15A-125V 2 Pole. 3-Wire Grounding. Receptacle - Light Almond
GTiN 00078477685556
Warranty Length 5 yr
Color Light Almond
Operating Temperature -10 C
Type Combination Duplex Receptacle And USB Charger
Applications Hospital
Grade Heavy-Duty Hospital
Country of Origin China
Standard ANSI C-73,CSA C22.2 Nos. 42 And 223,UL 498 And 1310
Horsepower 1/2 hp
Face Material PBT
Body Material PBT Thermoplastic Polyester Resin
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-1,WD-6
Dielectric 2000 V
Certifications NOM-ANCE,cCSAus
Flamability Class Rated V-0 Per UL 94
Grounding Self-Grounding
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
