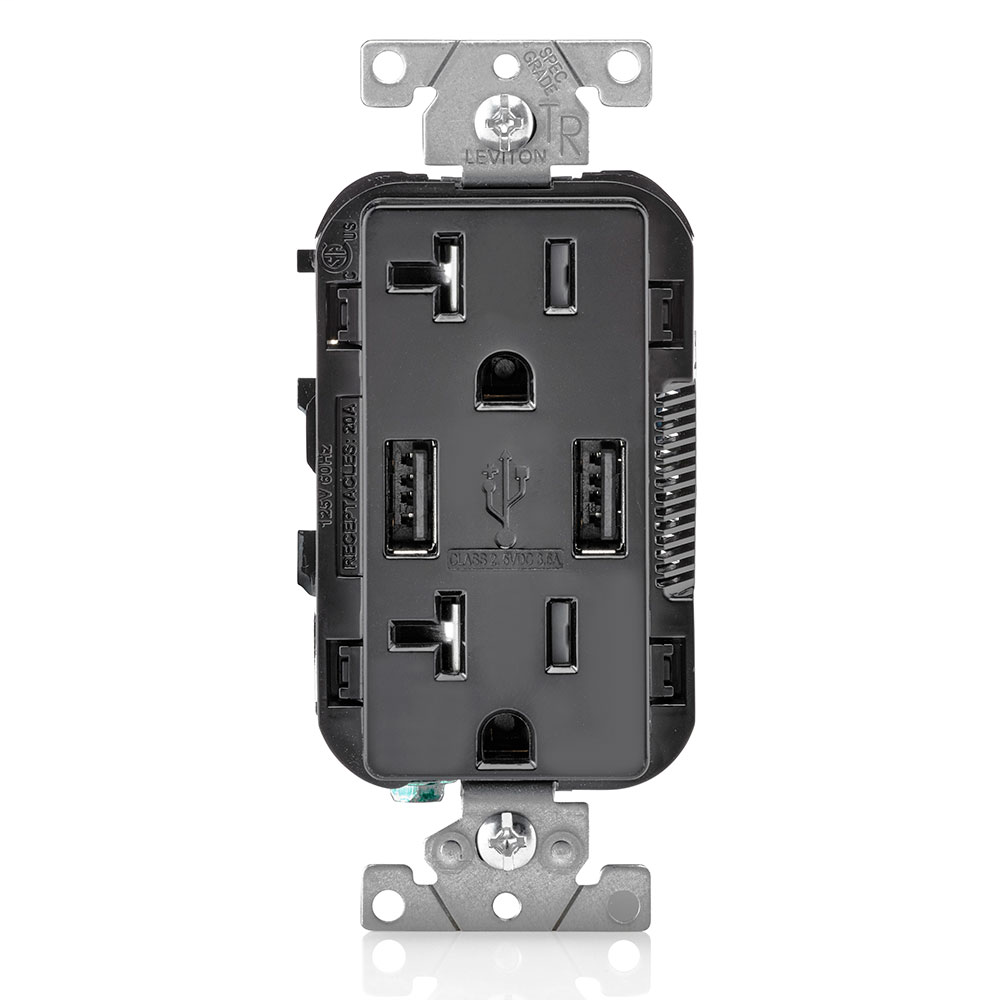

LEV T5832-E 20A TR RECPT USB CHRG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$48.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # T5832-E
North Coast Part # 1169163

Features

  • Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • USB Ports are positioned vertically providing more space for maneuvering and reducing stress on USB cables
  • Compatible with USB 3.0, 2.0, 1.1 devices
  • Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
  • Easy to install. Can replace existing outlets
  • No data transfer capability
  • SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
  • POWERFUL – Two high-powered charging ports with 3.6A of charging power
  • CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
  • EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.

Specifications

Material Specifications

  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-12 AWG
  • Color: Black
  • Cover Material: Thermoplastic
  • Strap Material: Steel
  • Torque Range: 12-14 inch pounds
  • Body Material: Thermoplastic
  • Termination: Back & Side
  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd

Standards and Certifications

  • Warranty: 5-Year Limited
  • NOM: 057
  • UL 1310: Yes
  • UL 498: Yes
  • FCC Part 15: Class B for Residential Compliance
  • Listed: cCSAus

Product Features

  • Amperage: 20 A
  • Ratings: 20A-125V
  • NEMA: 5-20R
  • Grade: Residential/Commercial Specification Grade
  • Brand: Decora
  • Country Of Origin: China
  • Voltage: 125 VAC
  • Grounding: Grounding
  • Horsepower Rating: 20A-1 HP
  • Product Type: Outlet/USB Combo
  • Type: Type A/A Duplex Receptacle

Mechanical Specifications

  • Amperage: 20 A
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-12 AWG
  • Torque Range: 12-14 inch pounds
  • Color: Black
  • Grade: Residential/Commercial Specification Grade
  • Termination: Back & Side
  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd

Electrical Specifications

  • Horsepower Rating: 20A-1 HP
  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -10°C to 40°C
  • Grounding: Grounding
  • Ratings: 20A-125V

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Color: Black
  • Cover Material: Thermoplastic
  • Strap Material: Steel
  • Operating Temperature: -10°C to 40°C
  • Body Material: Thermoplastic

videos

Overview

UPC 07847768397
GTiN 00078477683972
Warranty Length 5 yr
Color Black
Operating Temperature -10 C
Voltage 125 Volt
Type Type A/A Duplex Receptacle
Material Thermoplastic
Product Type Outlet/USB Combo
Conductor Size 14-12 AWG
Applications Residential Applications such as Kitchens, Bedrooms and Home Offices and in Commercial Applications such as Hotels, Airports, Restaurants and Cafes, Salons, Office Cubicles and College Dorm Rooms
Grade Residential/Commercial Specification
Country of Origin China
Standard CCSAus
Torque 12-14 lb-in
Horsepower 1 hp
Body Material Thermoplastic
Temperature Rating -10 to 40 C
Family Brand Name Leviton
NEMA 5-20R
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
Amperage 20 Amp
Blade Dimensions 1.73 in W x 1.68 in D x 4.04 in H
Number of Poles 2 Pole
Number of Wires 3
Outlet Type Tamper Resistant
Cover Material Thermoplastic
Sub Brand Decora
