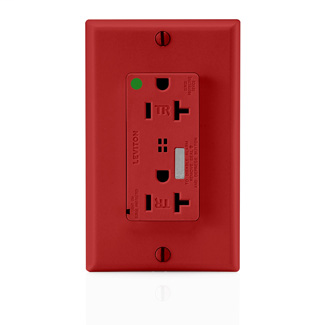

LEV T8380-R 20A TR HG SURGE RECPT

Specifications

Material Specifications

• Ground Clips: Brass-Plated Steel
• Line Contacts: Brass Triple-Wipe
• Face Material: Nylon
• Terminal Screws: Brass-Plated Steel
• Shutter Mechanism: Delrin® Acetal
• Grounding Screw: Brass-Plated Steel
• Body Material: Polycarbonate
• Yoke: Zinc-Plated Steel
• Clamp Nuts: Zinc-Plated Steel

Warranty

• Warranty: 5-Year Limited

Product Features

• Function: Surge Protective
• NEMA: 5-20R
• Color: Red
• Brand: Decora Plus
• Country Of Origin: Mexico
• Feature: Tamper-Resistant
• Device Type: Duplex Receptacle Outlet
• Grade: Heavy-Duty Hospital Grade

Standards and Certifications

• ANSI: C-73
• Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
• NEMA: WD-6
• NOM: 057

Performance Data

• Noise Rejection: -30dB at 500kHz-30MHz
• Nominal Discharge Current Rating: 3kA
• VPR: L-N: 600V, L-G: 700V, N-G: 600V
• Diagnostics: Indicator Light & Audible Alarm
• Short Circuit Current Rating: 5kA
• Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
• Joules Rating: 720
• MCOV: 150V rms

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Torque Range: 14-16 inch pounds
• Termination: Back or Side Wire

Electrical Specifications

• Amperage: 20 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 2
• Current Limiting: Full Rated Current
• Voltage: 125 VAC
• Grounding: Self-Grounding

Environmental Specifications

• Operating Temperature: -40°C to 60°C
