LEV TBR20-E 20A-125V TR COMM RCPT

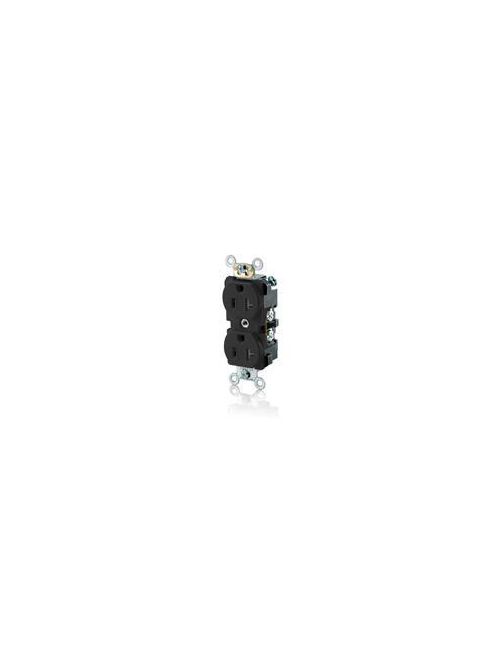

Product image thumbnail 0

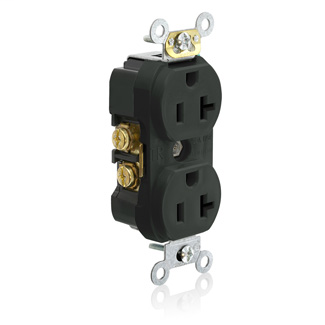

Product image thumbnail 1
$16.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # TBR20-E
North Coast Part # 553038

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Brass .031 Thick
  • Face Material: Thermoplastic
  • Color: Black
  • Shutter Mechanism: Delrin® Acetal
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Plated Steel
  • Terminal Screws: Plated Steel
  • Body Material: Thermoplastic

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • ANSI: C-73
  • UL 498: File E13399
  • NEMA: WD-1 WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-20R
  • Color: Black
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Feature: Two Outlets Marked Controlled, Tamper-Resistant, Smooth Face
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847743318
GTiN 00078477433188
Length 1.56 in
Warranty Length 10 yr
Width 19 in
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Tamper-Resistant
Material Nylon
Applications Commercial
Height 46 in
Grade Commercial
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1 hp
Face Material Thermoplastic
Body Material Thermoplastic
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Dielectric 2000 V
Grounding Self-Grounding
Amperage 20 Amp
Blade Dimensions 1.56 in L x 19 in W x 46 in H
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Duplex Receptacle Outlet
