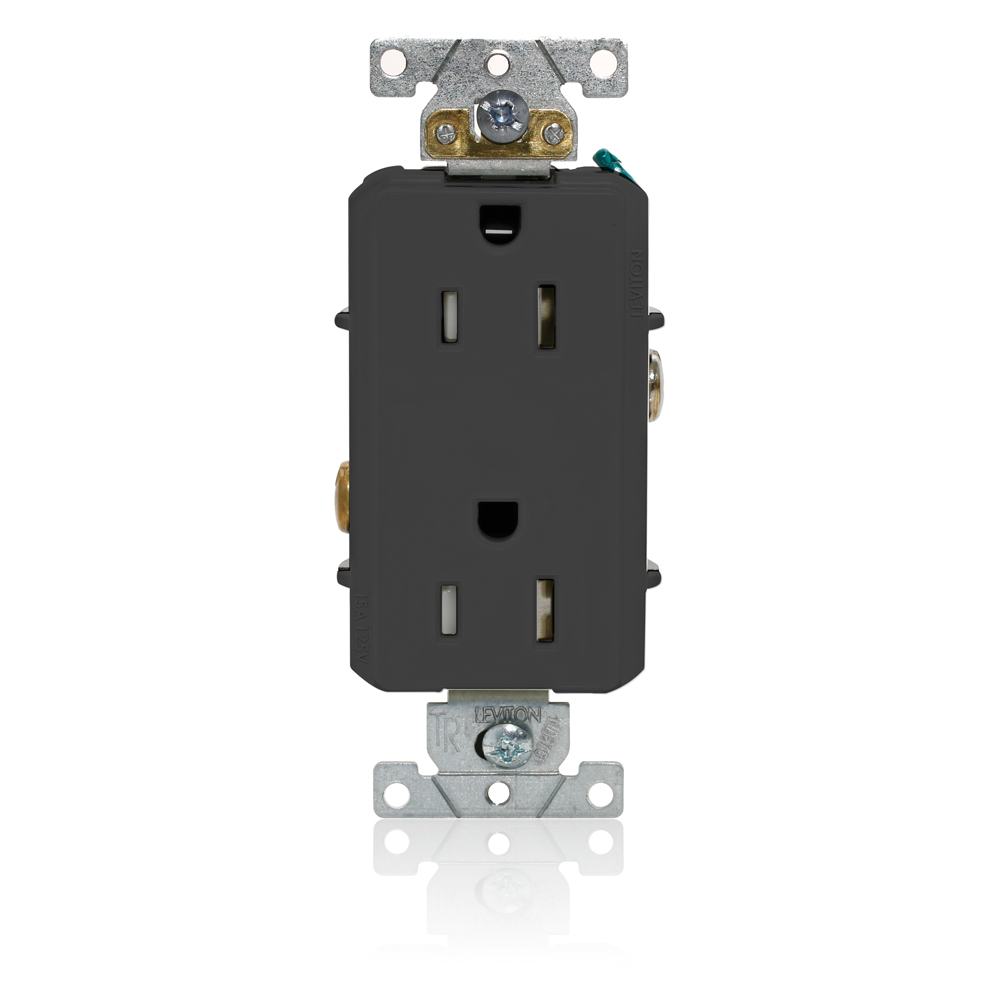

LEV TDR15-E TMPR RESIST DUP DEC REC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # TDR15-E
North Coast Part # 606428

Specifications

Warranty

  • Horsepower Rating: 1/2 HP
  • Warranty: 10-Year Limited

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Product ID: Ratings are permanently marked on device
  • Face Material: PBT Polyester Blend
  • Terminal Accom.: #14 AWG - #10 AWG
  • Terminal Screws: #8 Triple-Drive Brass
  • Shutter Mechanism: Acetal
  • Termination: Back or Side Wire
  • Ground Contacts: 0.030" Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Body Material: PBT Polyester Blend
  • Mounting Screws: Triple-Drive Plated Steel
  • Terminal Clamps: Brass
  • Wire Type: Stranded or Solid
  • Terminal ID: Brass - Hot, Silver - Neutral, Green - Ground,
  • Strap Material: Steel (Galvanized G60)

Standards & Certifications

  • ANSI: C-73
  • Certification/Listing: cULus, NOM-ANCE
  • RoHS: RoHS Compliant
  • Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2. No. 42

Electrical Specifications

  • Amperage: 15 A
  • Flammability: Rated V-0 per UL 94
  • Wire: 3
  • Dielectric Voltage: Withstands 3000 V minimum
  • Temperature Rise: Max 30 °C temperature rise at full rated current
  • Pole: 2
  • Operating Temperature: -40°C to 75°C
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Feature 2: Tamper-Resistant
  • Device Type: Duplex Receptacle Outlet
  • Color: Black
  • Brand: Decora Plus
  • Feature 4: Smooth Face
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Industrial Specification Grade
  • ANSI: C-73
  • Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
  • Color / Feature: Black
  • Certification/Listing: cULus, NOM-ANCE
  • RoHS: RoHS Compliant

Mechanical Specifications

  • Feature 2: Tamper-Resistant
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: #14 AWG - #10 AWG
  • Feature 4: Smooth Face
  • Color: Black
  • Brand: Decora Plus
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Termination: Back or Side Wire
  • Wire Type: Stranded or Solid
  • Color / Feature: Black
  • Terminal ID: Brass - Hot, Silver - Neutral, Green - Ground,

AC Horsepower Rating

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000 V minimum
  • Temperature Rise: Max 30 °C temperature rise at full rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • Horsepower Rating: 1/2 HP

Environmental Specifications

  • Ground Clips: Brass
  • Flammability: Rated V-0 per UL 94
  • Face Material: PBT Polyester Blend
  • Color: Black
  • Shutter Mechanism: Acetal
  • Ground Contacts: 0.030" Brass
  • Operating Temperature: -40°C to 75°C
  • Terminal Screws: #8 Triple-Drive Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Body Material: PBT Polyester Blend
  • Mounting Screws: Triple-Drive Plated Steel
  • Terminal Clamps: Brass
  • Strap Material: Steel (Galvanized G60)

videos

Overview

UPC 07847739211
GTiN 00078477392119
Warranty Length 10 yr
Size 46 H x 1.52 W x 1.14 D IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Tamper-Resistant
Material Nylon
Conductor Size 14 - 10 AWG
Applications Commercial
Mounting Type Wall Box
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73,CSA C22.2. No. 42,Fed Spec W-C-596,UL 498
Wire Type Stranded Building Wire
Connection Type Back and Side Wired
Horsepower 1/2 hp
Face Material Polyester
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Number of Phases 1 Phase
Dielectric 3000 V
Certifications CULus,NOM-ANCE
Flamability Class Rated V-0 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.52 in W x 1.14 in D x 46 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
Sub Brand Decora Plus
