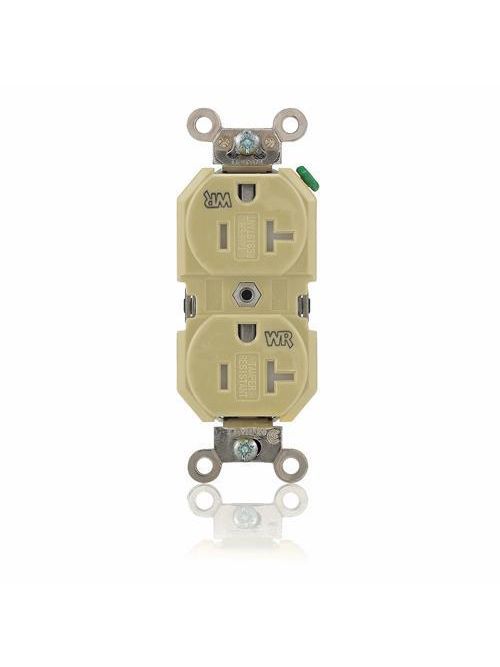

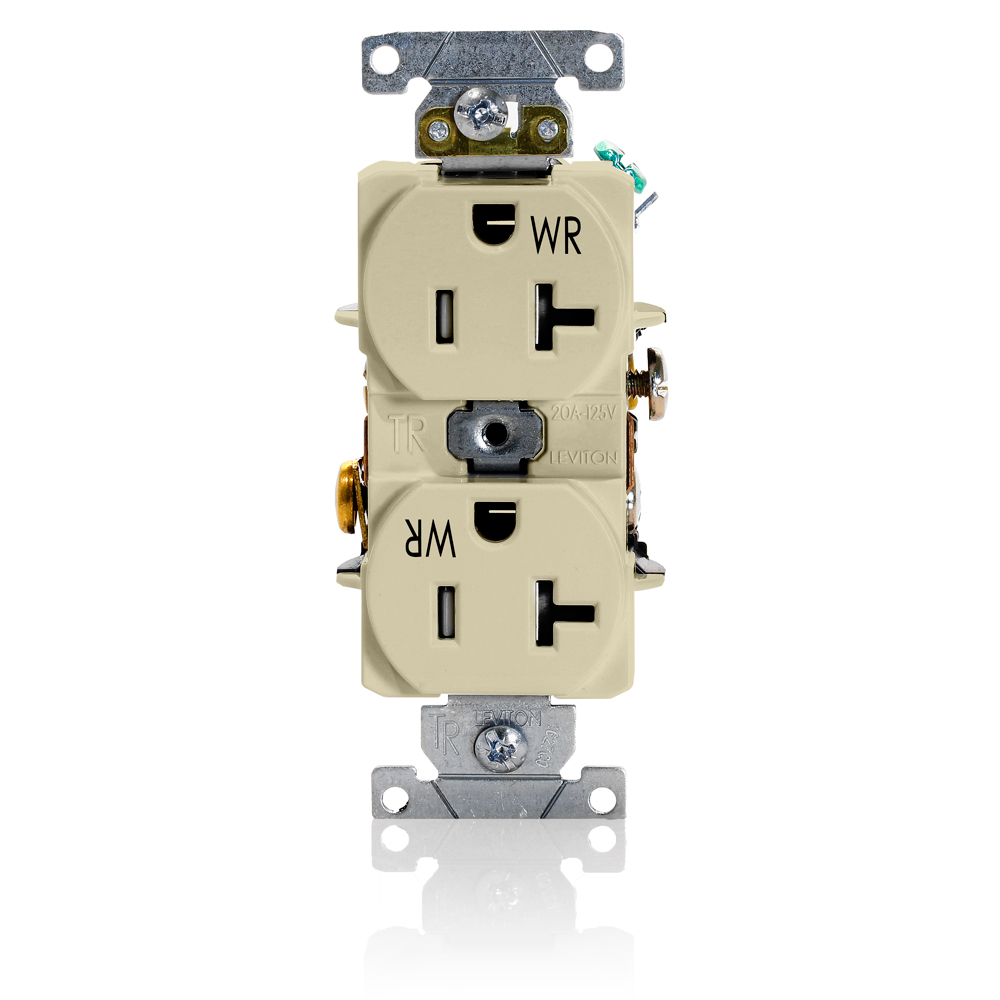

LEV TWR20-I 20A-125V T&WR COMM RCPT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.13/ea
Usually ships within 9 to 13 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # TWR20-I
North Coast Part # 997034

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Face Material: PBT Polyester Blend
  • Terminal Screws: #8 Triple-Drive Brass
  • Ground Contacts: 0.030" Brass
  • Grounding Screw: #8 hex head, triple drive Brass
  • Body Material: PBT Polyester Blend
  • Mounting Screws: Triple-Drive Plated Steel
  • Terminal Clamps: Brass
  • Strap Material: Steel

Standards & Certifications

  • ANSI: C-73
  • Certification/Listing: cULus, NOM-ANCE
  • NEMA: WD 1 & WD 6
  • RoHS: RoHS Compliant
  • Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2. No. 42

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000 V minimum
  • Temperature Rise: Max 30 °C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Feature 2: Weather-Resistant
  • NEMA: 5-20R
  • Feature 4: Indented Face
  • Color: Ivory
  • Country Of Origin: Mexico
  • Feature: Weather-Resistant
  • Device Type: Duplex Receptacle Outlet
  • Grade: Heavy-Duty Industrial Specification Grade
  • Color / Feature: Black

Mechanical Specifications

  • Wire Type: Stranded or Solid
  • Terminal ID: Brass - Hot, Green - Ground, Silver - Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: #14 AWG - #10 AWG
  • Termination: Back or Side Wire

AC Horsepower Rating

  • Horsepower Rating: 1 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 75°C

Overview

UPC 07847767983
Item Long Description Nema 5-20R 20A-125V. 2-Pole 3-Wire. Weather Resistant Receptacle. Tamper Resistant. Duplex. Back And Sided Wired. Commercial Spec Grade. Self Grounding Triple-combination-head Screws. - Ivory
GTiN 00078477679838
Color Black,Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Weather Resistant Receptacle
Applications Commerical
Grade Heavy-Duty Industrial Specification
Country of Origin Mexico
Standard ANSI C-73,CSA C22.2. No. 42,Fed Spec W-C-596,UL 498
Wire Type Stranded Building Wire
Horsepower 1 hp
Face Material Polyester
Body Material PBT Polyester Blend
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Dielectric 3000 V
Certifications CULus,NOM-ANCE
Flamability Class Rated V-0 Per UL 94
Grounding Self-Grounding
Amperage 20 Amp
Number of Poles 2 Pole
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
