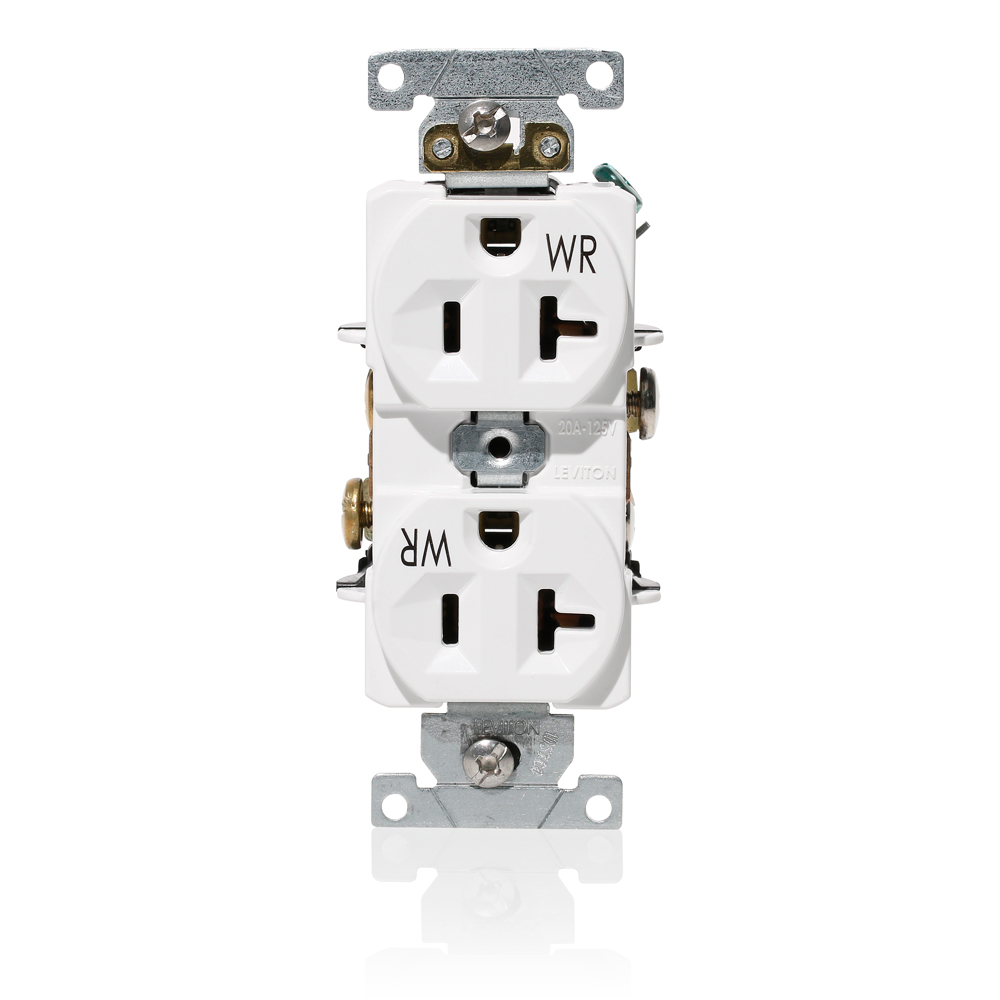

LEV WBR20-W WR 20A DUP COMML REC
Product image thumbnail 0
Product image thumbnail 1
$19.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # WBR20-W
North Coast Part # 494842

Specifications

Warranty

  • Warranty: 10-Year Limited
  • At Rated Voltage: 1 HP

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Product ID: Ratings permanently marked on device
  • Face Material: UV Resistant Thermoplastic
  • Terminal Accom.: 14-10 AWG
  • Color: White
  • Strap Material: Nickel-Plated Brass
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Nylon
  • Termination: Back or Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

  • Warranty: 2-Year Limited
  • ANSI: C-73
  • UL 498: File E13399
  • CSA C22.2 No. 42: File 152105
  • NOM: 057

Electrical Specifications

  • Amperage: 20 A
  • Flammability: Rated V-2 per UL 94
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Operating Temperature: -40°C to 60°C
  • Current Limiting: Full Rated Current
  • Pole: 2
  • Grounding: Self-Grounding
  • Voltage: 125 VAC

Product Features

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • Country Of Origin: Mexico
  • ANSI: C-73
  • UL 498: File E13399
  • NEMA: 5-20R

Mechanical Specifications

  • Product ID: Ratings permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • NEMA: 5-20R
  • Color: White
  • Termination: Back or Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

AC Horsepower Ratings

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • At Rated Voltage: 1 HP

Environmental Specifications

  • Ground Clips: Brass-Plated
  • Flammability: Rated V-2 per UL 94
  • Face Material: UV Resistant Thermoplastic
  • Color: White
  • Strap Material: Nickel-Plated Brass
  • Operating Temperature: -40°C to 60°C
  • Terminal Screws: Brass 10-32
  • Grounding Screw: Brass 8-32
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Body Material: Nylon

videos

Overview

UPC 07847739595
GTiN 00078477395950
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Nylon
Applications Commercial
Mounting Type Wall Box
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back And Side Wired
Horsepower 1 hp
Face Material UV Resistant Thermoplastic
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R
Number of Phases 1
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
