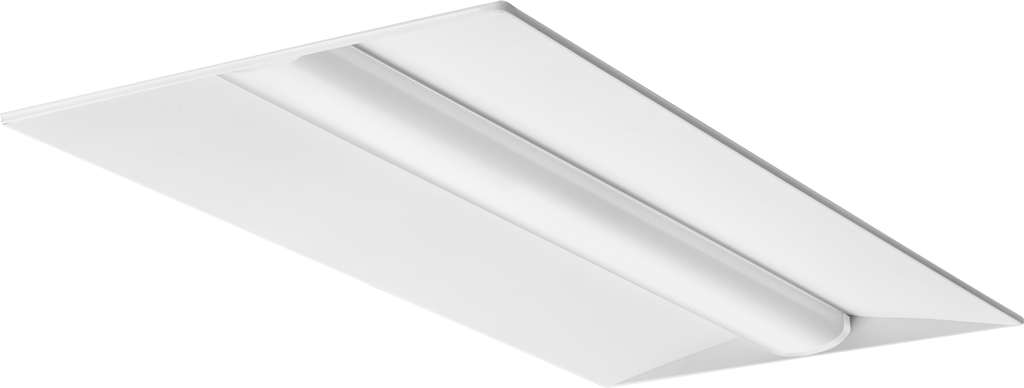

LIT 2BLT4-40L-ADP-EZ1-LP835 Troffer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$411.78/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lithonia Lighting
Mfg Catalog # 2BLT4 40L ADP EZ1 LP835
North Coast Part # 1163594

Features

  • 2 ft. x 4 ft. BLT low-profile recessed LED lay-in with curved, linear center element and 4000 lumens, 3500 kelvin CCT
  • BLT is less than 3 in. deep which makes it ideal for installation in ceilings with minimal space
  • High efficiency fixture offers 124 LPW and eldoLED driver allows for flicker-free dimming to 1 percent
  • No nLight controls embedded
  • CSA Certified, IC Rated and DLC Premium
  • Standard MVOLT (120-277 volts) and fits into standard 15/16 in. and narrow 9/16 in. T-grid ceiling systems
  • 80 percent LED lumen maintained after 60,000 hours (L80/60,000)
  • High performance acrylic diffusers conceal LEDs and deliver light with a volumetric distribution
  • Battery pack options include: 700 or 1400 lumens, 1400 lumen with self-diagnostic testing feature or EM self-diagnostic battery back (10 watts constant power, certified in CA Title 20 MAEDBS)
  • 5-year limited warranty
  • 23 3/4 in. x 47 3/4 in. x 2 3/8 in.
  • Clean design for commercial applications
  • Slim 2-3/8” profile that fits restrictive plenums
  • Versatile style places 2- or 3-lamp fluorescent fixtures for energy savings of up to 60 percent
  • LED, troffer, lay-in, 2x4, Lithonia Lighting, commercial, indoor, value, quality LED, controls, easy installation
  • Versatile style places 2- or 3-lamp fluorescent fixtures for energy savings of up to 60 percent
  • LED, troffer, lay-in, 2x4, Lithonia Lighting, commercial, indoor, value, quality LED, controls, easy installation

Specifications

  • Architectural Style: Traditional
  • Environment: Indoor
  • Application: Indoor
  • Application Type: Education,Government,Healthcare,Hospitality,Offices & Banks,Religious,Retail
  • Mounting: Recessed
  • Mounting Location: Ceiling
  • Listings: CSA
  • Is CSA Certified: Yes
  • Is Energy Star: No
  • Airtight Rating: No
  • Length of Warranty: 5 Year Limited
  • Limited Warranty Length: Limited 5 Year Limited
  • Warranty Statement: 5 Year Limited. Warranty varies by product.
  • Country Of Origin: MX
  • Harmonization USA: 9405106020
  • Harmonization Canada: 9405100099
  • Harmonization Mexico: 94051003
  • Hardware Included: No
  • Power Connection: Hardwired
  • Linkable: No
  • Contains Mercury: No
  • Light Source: LED - Static
  • Lamp Type: LED
  • Lamp Included: Yes
  • Lamp Multiplier: 1
  • Expected Life: 60,000 hours
  • Color Rendering Index: 80
  • Color Rendering Index Output: 80
  • Correlated Color Temperature (LED): 3500 K
  • Correlated Color Temperature (Non-LED): 3500 K
  • Light Color: Bright White
  • Lumen Output: 4000 LM
  • Total Fixture Wattage: 34
  • LED Fixture Wattage: 34
  • Nominal Wattage: 34
  • Voltage Rating: 120-277
  • Maximum Operating Temperature: 25
  • Is Product Dimmable: Yes
  • Batteries Included: No
  • Batteries Required: No
  • Contains Lithium Battery: No
  • Primary Material: Steel
  • Shape: Rectangular
  • Color: White
  • Finish: Matte
  • Lens Included: Yes
  • Lens Material: Acrylic
  • Lens Finish: Ribbed
  • Lens Color Family: White
  • Lens Cover Style: Curved
  • Daylight Sensing: No
  • Aperture Size: 2x4
  • Fixture Length: 50
  • Fixture Width: 25
  • Fixture Height: 3.5
  • Fixture Weight: 18
  • Fixture Package Length: 50
  • Fixture Package Width: 25
  • Fixture Package Height: 3.5
  • Fixture Package Weight: 18
  • Pallet Quantity: 28
  • Number of Cartons on the Pallet: 30
  • PDM Package Quantity: 1
  • Number of Units in Packaging Indicator: 1
  • Weather Resistant: No

Overview

UPC 19088747088
GTiN 00190887470888
Color White
Type Troffer
Material Steel
Applications Education, Offices & Banks, Retail
Family Brand Name Lithonia Lighting
Lamp Type LED - Static
Warranty Length 5 yr
Voltage 120-277 Volt
Mounting Type Recessed
Country of Origin Mexico
Lumens 4000 lm
Environment Indoor
