LITH CPANL-1X4-24/33/44LM-40K-M4 Fl
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$204.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lithonia Lighting
Mfg Catalog # CPANL 1X4 24/33/44LM 40K M4
North Coast Part # 1825835

Features

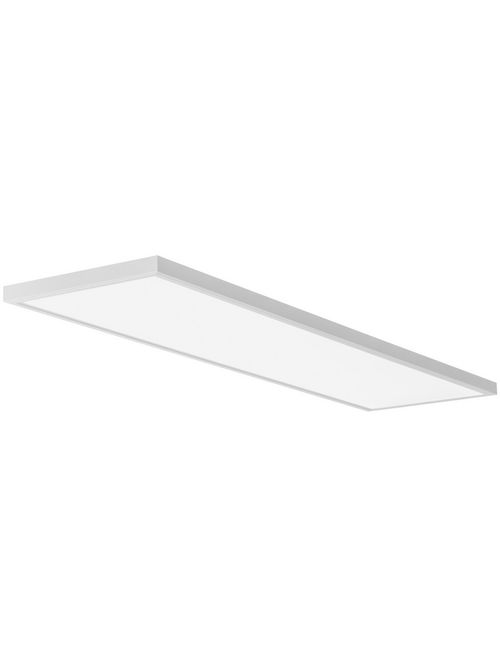

  • The Lithonia Lighting CPANL is an edge-lit LED flat panel that provides a glare-free luminous appearance. CPANL provides superior ambient lighting perfect for commercial applications such as retail spaces, offices, hospitality and education. Its low-profile design provides increased installation flexibility especially in restricted plenum spaces, and the switchable lumen feature allows you to toggle between 3 preset lumen outputs for an optimal lighting experience.
  • Easy and safe installation. Low-profile design is perfect for restricted plenum spaces. Ideal for new construction or renovation.
  • Dimmable, high-efficiency LEDs provide general illumination with a 4,000 Kelvin color temperature. Switchable lumen feature allows you to toggle between 2,400, 3,300 and 4,400 lumens conveniently on the jobsite.
  • 0-10 Volt dimming driver, dims to 10 percent.
  • CSA certified to meet US and Canadian standards for performance and safety.
  • Flexible mounting options including the standard integral T-Bar clips for installation into T-Grid ceilings. Simple accessory kits allow for suspension and surface mounting configurations.
  • Save on maintenance time and expense with the luminaire's extended service life; 70 percent LED lumen maintenance at 60,000 hours.
  • The seamless, aluminum frame is durable and prevents light leak in the corners. The satin white lens provides excellent shielding and fully luminous appearance for a contemporary design aesthetic.
  • Emergency battery backup available factory-installed as an option, or ordered separately as an accessory.
  • BUY WITH CONFIDENCE: Your satisfaction is our top priority, this product is backed by our limited 5-year warranty policy! Just in case you have any issues or problems, our friendly customer service will be happy to help you! All of our products meet the highest standards.
  • The 1x4 ft. fixture measures just 1.24 in. in depth.
  • CPANL is an edge-lit LED panel that provides superior, glare-free illumination.
  • CPANL offers flexibility on the jobsite with the ability to choose between 3 preset lumen outputs for the optimal lighting experience.
  • CPANL offers versatile configurations includings suspension, ceiling, and flush mount options.
  • CPANL, LED panel, flat panel, edge-lit, recessed panel

Specifications

  • Environment: Indoor
  • Application: Indoor
  • Application Type: Offices & Banks
  • Mounting: Recessed,Surface
  • Mounting Location: Ceiling
  • Luminaire Attachment Method: Aircraft Cable
  • Listings: CSA
  • Is CSA Certified: Yes
  • Is Energy Star: No
  • Airtight Rating: No
  • Country Of Origin: CN
  • Hardware Included: Yes
  • Power Connection: Hardwired
  • Contains Mercury: No
  • Light Source: LED - Static
  • Lamp Included: Yes
  • Color Rendering Index: 80
  • Color Rendering Index Output: 80
  • Correlated Color Temperature (LED): 4000 K
  • Correlated Color Temperature (Non-LED): 4000 K
  • Light Color: Cool White
  • Lumen Output: 2400 LM,3300 LM,4400 LM,Switchable
  • Voltage Rating: 120-277
  • Maximum Operating Temperature: 25
  • Is Product Dimmable: Yes
  • Dimmable Range: 100% to 10%
  • Contains Lithium Battery: No
  • Primary Material: Steel
  • Shape: Rectangular
  • Color: White
  • Finish: Semi-Gloss
  • Lens Included: Yes
  • Lens Material: Acrylic
  • Lens Color Family: White
  • Daylight Sensing: No
  • Aperture Size: 1x4
  • Fixture Length: 47.72
  • Fixture Width: 11.85
  • Fixture Height: 1.26
  • Fixture Weight: 9.50

Overview

UPC 19184833846
GTiN 00191848338469
Type Flat Panel
Applications Offices
Lumens 4400 lm
Family Brand Name Lithonia Lighting
Lamp Type LED - Static
Fixture Type Flat Panel
Color White
Voltage 120-277 Volt
Material Steel
Mounting Type Recessed,Surface
Country of Origin China
Environment Indoor
Length 47.72
Width 11.85
Height 1.26
Weight 9.50
Color Temperature 4000 K
Shape Rectangle
