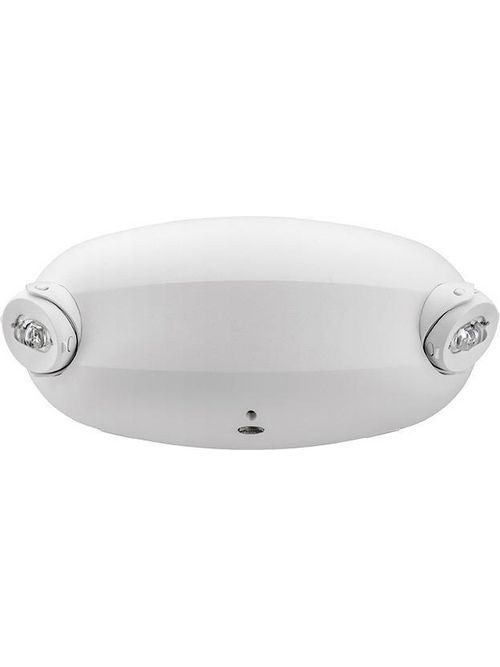

LITH ELM2L-UVOLT-LTP-M12 Emergency
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$194.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lithonia Lighting
Mfg Catalog # ELM2L UVOLT LTP M12
North Coast Part # 1687700

Features

  • The Contractor Select Quantum series from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most.
  • The ELM2L includes the latest in LED optical design raising the bar for path of egress coverage and spacing, allowing fewer products to do the same job reducing the total product spend and lowering installation time, effort and costs.
  • Easily replaces existing emergency lighting units
  • Not recommended dim
  • UL damp location listed standard and wet location listed when used with the WPVS accessory, all at 50-104°F (10-40°C), meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), NOM (Norma Oficial Mexicana), California Energy Commission Title 20 section 1605.3 (W)(4), FCC Title 47, Part 15, Subpart B and OSHA, List and labeled to comply with Canadian Standards C22.2 No. 141-10.
  • Functions between 120 and 347 volt with input wattage of 1.35 watts and wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
  • The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light
  • The housing is a standard white thermoplastic with a compact and low-profile contemporary design, it is 5VA flame rated, impact-resistant, scratch-resistant and corrosion proof and the UV-stable resin resists discoloration from natural and man-made light sources
  • Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • Buy with confidence with a 5-year limited warranty
  • Length: 9.72" x Height 4.68" x Width 3.1"
  • Contemporary commercial LED emergency light
  • Illuminates 3-foot path of egress with 32-foot coverage at 7.5 in. mounting height
  • Essential to meet Life Safety Codes
  • emergency light, emergency lighting, emergency light fixture

Specifications

  • Environment: Indoor,Outdoor
  • Application Type: Education,Government,Healthcare,Hospitality,Offices & Banks,Religious,Residential,Retail,Sports and Recreation
  • Mounting: Surface
  • Mounting Location: Ceiling,Wall
  • Listings: C-UL-US,NFPA 101,NFPA 70,NOM,UL
  • Is CSA Certified: No
  • Is Energy Star: No
  • Airtight Rating: No
  • Country Of Origin: MX
  • Hardware Included: No
  • Power Connection: Hardwired
  • Contains Mercury: No
  • Light Source: LED - Static
  • Lamp Included: Yes
  • Color Rendering Index: 70
  • Color Rendering Index Output: 70
  • Correlated Color Temperature (LED): 5000 K
  • Correlated Color Temperature (Non-LED): 5000 K
  • Light Color: Daylight
  • Lumen Output: 220 LM
  • Total Fixture Wattage: 1.34
  • LED Fixture Wattage: 1.34
  • Nominal Wattage: 1.34
  • Voltage Rating: 120-347
  • Minimum Operating Temperature: 10
  • Maximum Operating Temperature: 40
  • Battery Run Time: 90 min
  • Battery Chemistry Type: NiCd
  • Contains Lithium Battery: No
  • Primary Material: Thermoplastic
  • Color: White
  • Finish: Textured
  • Lens Included: Yes
  • Lens Material: Acrylic
  • Lens Color Family: Clear
  • Daylight Sensing: No
  • Fixture Length: 13.37
  • Fixture Width: 3.7
  • Fixture Height: 5.93
  • Fixture Weight: 2.88

Overview

UPC 19184807811
GTiN 00191848078112
Color White
Type Emergency Lighting Unit
Applications Education,Government,Healthcare,Hospitality,Offices,Religious,Residential,Retail,Sports
Lumens 220 lm
Family Brand Name Lithonia Lighting
Lamp Type LED - Static
Fixture Type Emergency Lighting Unit
Voltage 120-277 Volt
Material Thermoplastic
Mounting Type Surface
Country of Origin Mexico
Environment Indoor,Outdoor
Length 13.37
Width 3.7
Height 5.93
Weight 2.88
Color Temperature 5000 K
