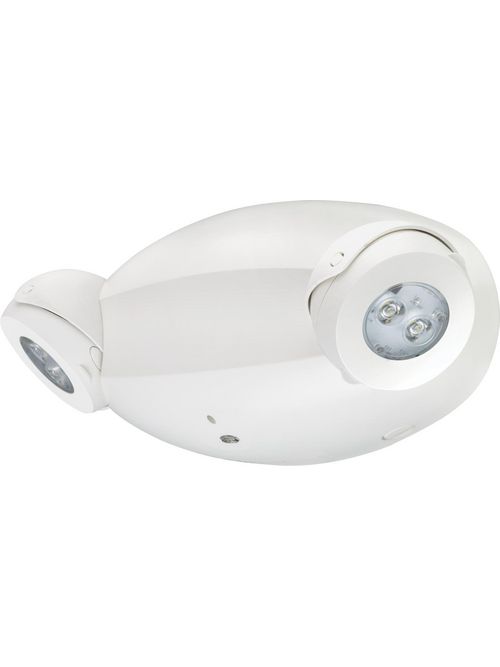

LITH ELM4L Emergency Lighting Unit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$227.20/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lithonia Lighting
Mfg Catalog # ELM4L
North Coast Part # 1680464

Features

  • The Contractor Select Quantum series from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most.
  • The ELM4L includes the latest in LED optical design raising the bar for path of egress coverage and spacing, allowing fewer products to do the same job reducing the total product spend and lowering installation time, effort and costs.
  • Easily replaces existing emergency lighting units
  • Not recommended dim
  • UL damp location listed standard and wet location listed when used with the WPVS accessory, all at 50-104°F (10-40°C), meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), NOM (Norma Oficial Mexicana), California Energy Commission Title 20 section 1605.3 (W)(4), FCC Title 47, Part 15, Subpart B and OSHA, List and labeled to comply with Canadian Standards C22.2 No. 141-10.
  • Functions between 120 and 277 volt with input wattage of 3.15 watts and wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
  • The typical life of the LED lamp is 10 years using two 3.3 Watt LED lamps for emergency light
  • The housing is a standard white thermoplastic with a compact and low-profile contemporary design, it is 5VA flame rated, impact-resistant, scratch-resistant and corrosion proof and the UV-stable resin resists discoloration from natural and man-made light sources
  • Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • Buy with confidence with a 5-year limited warranty
  • Length: 13.37" x Height 5.93" x Width 3.7"
  • LED lighted exit signs for marking the means of egress in accordance with Life Safety Code NFPA 101
  • Test switch and status indicator for low maintenance (EL emergency models only)
  • UL indoor damp location 50° to 104°F (10°C to 40°C) listed standard
  • emergency light, emergency lighting, emergency light fixture

Specifications

  • Environment: Indoor,Outdoor
  • Application Type: Education,Government,Healthcare,Hospitality,Offices & Banks,Religious,Residential,Retail,Sports and Recreation
  • Mounting: Surface
  • Mounting Location: Ceiling,Wall
  • Listings: C-UL-US,NFPA 101,NFPA 70,NOM,UL
  • Is CSA Certified: No
  • Is Energy Star: No
  • Airtight Rating: No
  • Country Of Origin: MX
  • Hardware Included: No
  • Power Connection: Hardwired
  • Contains Mercury: No
  • Light Source: LED - Static
  • Number of Lamps: 2
  • Correlated Color Temperature (LED): 5000 K
  • Correlated Color Temperature (Non-LED): 5000 K
  • Light Color: Daylight
  • Lumen Output: 640 LM
  • Total Fixture Wattage: 3.01
  • LED Fixture Wattage: 3.01
  • Nominal Wattage: 3.01
  • Voltage Rating: 120-277
  • Minimum Operating Temperature: 10
  • Maximum Operating Temperature: 40
  • Battery Voltage: 6 volts
  • Battery Run Time: 90 min
  • Battery Chemistry Type: NiCd
  • Contains Lithium Battery: No
  • Primary Material: Thermoplastic
  • Color: White
  • Finish: Textured
  • Lens Included: Yes
  • Lens Material: Acrylic
  • Lens Color Family: Clear
  • Daylight Sensing: No
  • Fixture Length: 14
  • Fixture Width: 16.5
  • Fixture Height: 4
  • Fixture Weight: 3

Overview

UPC 19172391628
GTiN 00191723916287
Color White
Type Emergency Lighting Unit
Applications Education,Government,Healthcare,Hospitality,Offices,Religious,Residential,Retail,Sports
Lumens 640 lm
Family Brand Name Lithonia Lighting
Lamp Type LED - Static
Fixture Type Emergency Lighting Unit
Material Thermoplastic
Mounting Type Surface
Country of Origin Mexico
Environment Indoor,Outdoor
Length 14
Width 16.5
Height 4
Weight 3
Color Temperature 5000 K
