Manufacturer NLIGHT
Mfg Catalog # NBRG 8 KIT
North Coast Part # 1164918

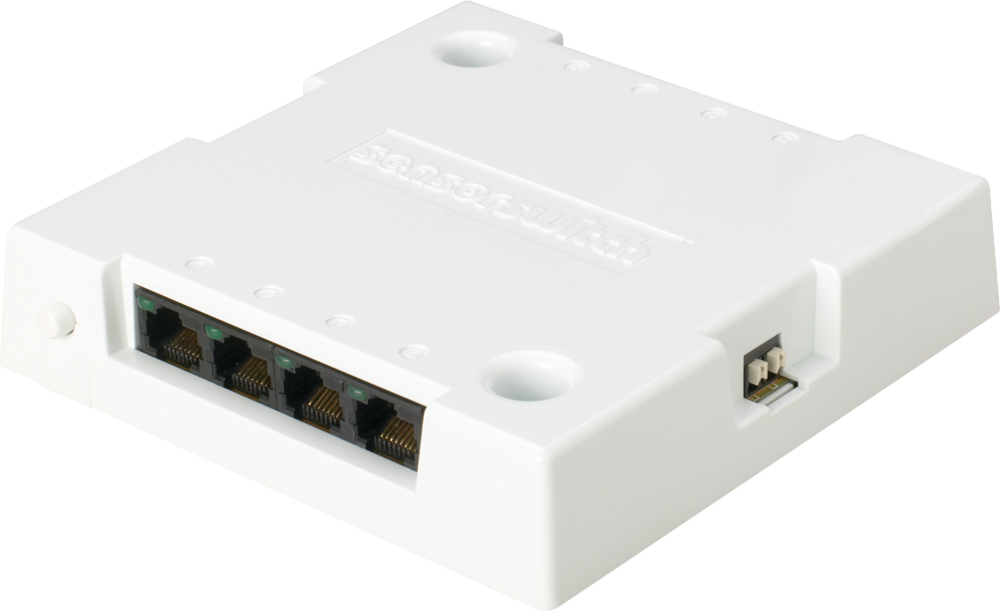

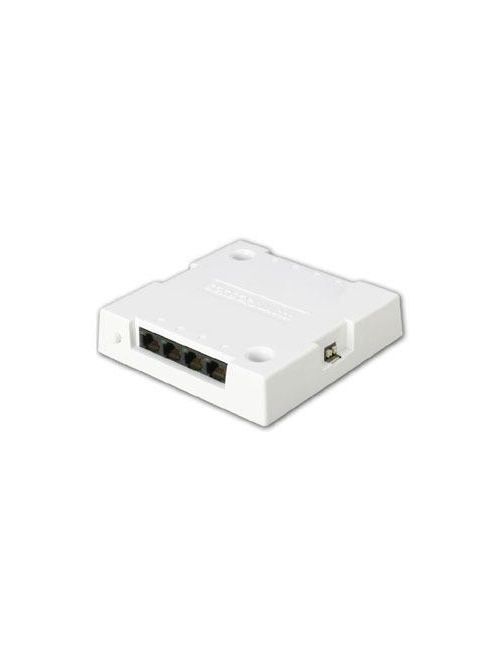

  • The nLight Bridge increases the number of lighting control zones in an nLight system with each Bridge having 8 RJ-45 ports that are daisy-chained to other nLight devices to create zones forming an integral component of the communication backbone in an nLight network
  • The nLight bridge allows you to control more lighting fixtures and control devices on the nLight lighting controls network
  • nLight lighting controls
  • Energy Management Equipment, UL916 (E167435), RoHS, Plenum UL2043
  • Low Voltage Output Ratings 15VDC, 40mA per RJ-45 Port (90mA total with connected PS-150 or PS-150-347 power supply, Mounting Directly to 4” x 4” Square Box, Surface Mount,
  • 4.90H” x 4.90W”x 1.05D” (124mm x 124mm x 27mm)
  • The nLight Bridge increases the number of lighting control zones in an nLight system
  • Remotely configurable/upgradeable
  • nLight, bridge, lighting controls network bridge, networked lighting controls


  • Environment: Indoor
  • Application Type: Education,Government,Healthcare,Hospitality,Manufacturing,Offices & Banks,Religious,Retail,Sports and Recreation,Warehouses
  • Mounting: Surface,Unit to J Box
  • Mounting Location: Ceiling
  • Listings: ROHS,UL
  • Is CSA Certified: No
  • Is Energy Star: No
  • Airtight Rating: No
  • Length of Warranty: 5 Year Limited
  • Country Of Origin: MX
  • Control: Networkable Control
  • Contains Mercury: No
  • Voltage Rating: 120,277
  • Contains Lithium Battery: No
  • Primary Material: Plastic
  • Color: White
  • Finish: Gloss
  • Daylight Sensing: No
  • Fixture Length: 7.5
  • Fixture Width: 4
  • Fixture Height: 5.5
  • Fixture Weight: 1


GTiN 00784231075357
Type System Controller
Applications Education,Government,Healthcare,Hospitality,Manufacturing,Offices,Religious,Retail,Sports,Warehouses
Family Brand Name Sensor Switch
Product UPC 78423107535
Warranty Length 5 yr
Color White
Material Plastic
Mounting Type Surface,Unit To J Box
Country of Origin Mexico
Environment Indoor
Length 7.5
Width 4
Height 5.5
Weight 1
