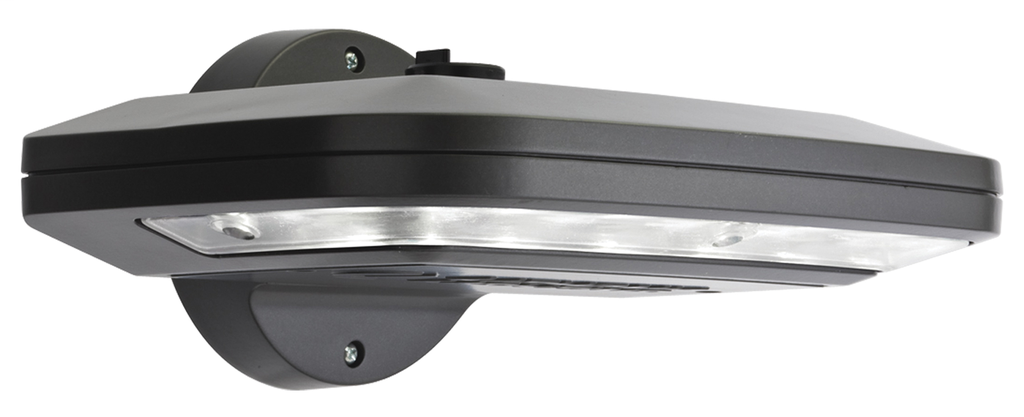

Lithonia Lighting OLW14 M2 120/277 Volt 5000 K 1490 Lumen Dark Bronze LED Wall Pack
Product image thumbnail 0
Product image thumbnail 1
$632.51/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lithonia Lighting
Mfg Catalog # OLW14 M2
North Coast Part # 680855

Features

  • Energy-saving, long-life replacements for traditional metal halide wallpacks
  • Compact and efficient — consumes 80% less energy than a 100 MH wall pack
  • Replace up to 70W HPS or 100W MH
  • photo cell for dusk to dawn operation
  • UL Listed to U.S. and Canadian safety standards for wet locations
  • 120 V; designed for wall mounting more than 4’ above the ground; mounts to a recessed junction box (by others)
  • High-performance LEDs maintain 70% of light output at 50,000 hours of service
  • Rugged cast-aluminum, corrosion-resistant rear mounting plate; impact resistant polycarbonate front cover/diffuser resists fading and cracking
  • Five-year limited warranty
  • 5-3/8" x 10-1/2" x 3-1/2"
  • Replaces 70W - 400W HID lamps, saves 85% energy
  • IP65 rated - perfect for outdoor environments even when shining upward or downward; back box accessory available for conduit wiring
  • Yoke and slip fitter accessories - can be used as a wall pack or flood light
  • Wall Pack, sleek, low-profile, floodlight mounting,

Specifications

  • Architectural Style: Traditional
  • Environment: Outdoor
  • Application Type: Automotive & Parking,Offices & Banks,Roadways, Bridges & Tunnels,Sports and Recreation
  • Mounting Location: Wall
  • Listings: cUL,UL
  • Is CSA Certified: No
  • Is Energy Star: No
  • Airtight Rating: No
  • Length of Warranty: 5 Year Limited
  • Limited Warranty Length: Limited 5 Year Limited
  • Warranty Statement: 5 Year Limited. Warranty varies by product.
  • Country Of Origin: CN
  • Harmonization USA: 9405106020
  • Harmonization Canada: 9405100099
  • Harmonization Mexico: 94051099
  • Hardware Included: Yes
  • Power Connection: Hardwired
  • Contains Mercury: No
  • Light Source: LED - Static
  • Correlated Color Temperature (LED): 5000 K
  • Correlated Color Temperature (Non-LED): 5000 K
  • Light Color: Daylight
  • Lumen Output: 14,900 LM
  • Maximum Lamp Wattage: 18
  • Voltage Rating: 120-277,MVOLT
  • Contains Lithium Battery: No
  • Primary Material: Aluminum
  • Shape: Rectangular
  • Color: Bronze
  • Lens Included: Yes
  • Lens Material: Acrylic
  • Daylight Sensing: No
  • Fixture Length: 11.5
  • Fixture Width: 8
  • Fixture Height: 4.5
  • Fixture Weight: 3
  • Fixture Package Length: 12
  • Fixture Package Width: 9.25
  • Fixture Package Height: 5.5
  • Fixture Package Weight: 5
  • Pallet Quantity: 128
  • Number of Cartons on the Pallet: 30
  • PDM Package Quantity: 1
  • Number of Units in Packaging Indicator: 2
  • Weather Resistant: Yes

Overview

UPC 74597791933
Warranty Length 5 yr
Color Bronze
Material Aluminum
Country of Origin China
Lumens 14,900 lm
Family Brand Name Lithonia Lighting
Environment Outdoor
GTiN 00745977919336
Type Wall Bracket Light
Applications Light Commercial, Residential
Lamp Type LED
Number of Lamps 0
Ballast Type Not Applicable
