Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Lithonia Lighting
North Coast Part # 1691415


  • The RSXF LED FLOODLIGHTS are specifically designed to provide one-for-one solutions for replacing metal halide and high-pressure sodium lighting providing superior illumination at prices that will allow customers to meet their financial payback thresholds
  • Adjustable integral slip-fitter allows the luminaire to mount over any existing 2-3/8” OD tenon
  • Class 1 electronic drivers ensure system power factor 90% and THD
  • CSA Certified to meet U.S. and Canadian standards, suitable for wet locations, rated for -40°C minimum ambient
  • 120-277V; adjustable integral slip-fitter allows the luminaire to mount over any existing 2-3/8” OD tenon
  • 20-year expected service life (L92 / 100,000 Hour LM)
  • Features a zinc-infused super durable powder coat finish that has excellent gloss retention and corrosion resistance
  • Five-year limited warranty
  • 28.3" x 13.4" x 7.6"
  • Adjustable integral slip-fitter allows the luminaire to mount over any existing 2-3/8" OD tenon
  • Integral wiring compartment allows for fast, easy mounting and wiring without opening the electrical compartment saving time during installation
  • Includes a field adjustable output device that allows the contractor to dim the luminaire to the appropriate lumens and watts
  • Flood; Floodlights; replacement; high pressure sodium lighting; value; field adjustable; mounting; nLight; Contractor Select; energy efficient


  • Architectural Style: Traditional
  • Environment: Outdoor
  • Application Type: Automotive & Parking,Education,Government,Healthcare,Hospitality,Offices & Banks,Parking Garage,Sports and Recreation
  • Mounting: Pole Mount,Tenon Slipfitter
  • Mounting Location: Pole
  • Listings: CSA
  • Is CSA Certified: Yes
  • Is Energy Star: No
  • Airtight Rating: No
  • Length of Warranty: 5 Year Limited
  • Country Of Origin: MX
  • Hardware Included: Yes
  • Power Connection: Hardwired
  • Contains Mercury: No
  • Light Source: LED - Static
  • Lamp Type: LED
  • Lamp Included: Yes
  • Color Rendering Index: 70
  • Color Rendering Index Output: 70
  • Correlated Color Temperature (LED): 4000 K
  • Correlated Color Temperature (Non-LED): 4000 K
  • Light Color: Cool White
  • Lumen Output: 10,000 LM,11,000 LM,12,000 LM,13,000 LM,14,000 LM,15,000 LM,16,000 LM,17,000 LM,18,000 LM,19,000 LM,20,000 LM,21,000 LM,22,000 LM,23,000 LM,24,000 LM,25,000 LM,26,000 LM,27,000 LM,28,000 LM,29,000 LM,30,000 LM,31,000 LM,9000 LM
  • Maximum Lamp Wattage: 250
  • Total Fixture Wattage: 244
  • LED Fixture Wattage: 244
  • Nominal Wattage: 244
  • Voltage Rating: 120-277
  • Maximum Operating Temperature: 40
  • Is Product Dimmable: Yes
  • Dimmable Range: 100% to 10%
  • Amperage: 2.03
  • Contains Lithium Battery: No
  • Primary Material: Aluminum
  • Shape: Rectangular
  • Color: Bronze
  • Finish: Gloss
  • Lens Included: Yes
  • Daylight Sensing: No
  • Fixture Length: 36
  • Fixture Width: 18.5
  • Fixture Height: 10
  • Fixture Weight: 45
  • Weather Resistant: Yes


UPC 19184873311

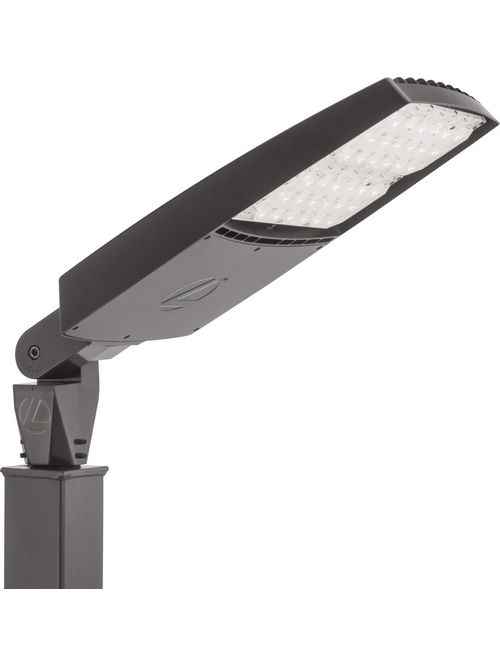

Item Long Description RSXF Flood Size 2, LED, 4000K, Wide flood distribution, 120-277V, Integral Slipfitter, Field adjustable output, Dark bronze finish, super durable, SKU - 2520A2
GTiN 00191848733110
Color Bronze
Type Floodlight
Family Brand Name Lithonia Lighting
Lamp Type LED - Static
Fixture Type Floodlight
Warranty Length 5 yr
Voltage 120-277 Volt
Material Aluminum
Mounting Type Pole Mount,Tenon Slipfitter
Country of Origin Mexico
Lumens 9000 lm
Environment Outdoor
Length 36
Width 18.5
Applications Education,Government,Healthcare,Hospitality,Parking Garage
Height 10
Weight 45
Color Temperature 4000 K
Shape Rectangle
