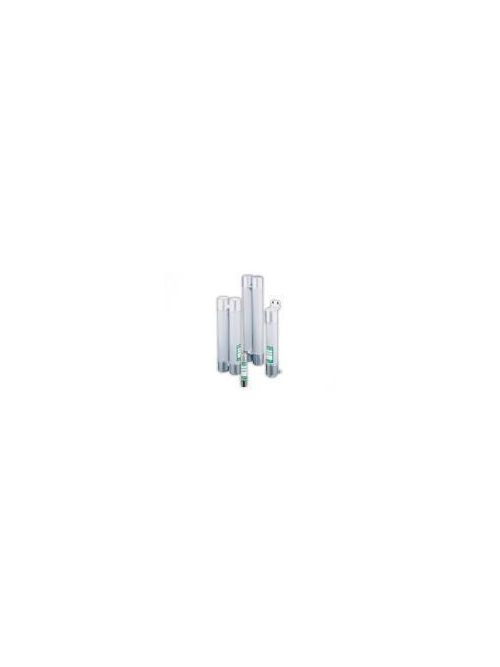

L-FSE 125E2C15.5 E-RATED MEDIUM VOL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,973.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Littlefuse
Mfg Catalog # 125E2C15.5
North Coast Part # 1833662

Specifications

  • Ampere Rating (A): 125
  • VAC (V): 15500
  • Interrupting Rating: 80000A@15500VAC

Overview

UPC 07945804129
Item Long Description E-RATED MEDIUM VOLTAGE 125C 15.5V 2B. E-Rated fuses have time current characteristics designed to provide current limiting protection for power transformers, potential transformers, power centers, feeder centers, and unit sub stations. When properly applied, they can protect against high and low value fault currents. NEMA Standards for E-rated medium voltage fuses require that fuses rated 100E or less open within 300 seconds (5 minutes) when subjected to an RMS value of 200-240percent of the fuse's continuous current rating, and fuses with an E-rating larger than 100E must open within 600 seconds (10 minutes) when subjected to an rms current of 220-240percent of the fuse's continuous current rating. These values establish one point on the time-current curve. Mounting clips are available for ferrule type and clip lock style fuses. All clips are sold in pairs.
GTiN 00079458041293
Voltage 15500 Volt
Type Medium Voltage Fuses
Applications Transformers, potential transformers, feeders, and motor circuits
Family Brand Name Littelfuse
Amperage 125 Amp
Sub Brand Medium Voltage
CA Prop65 Warning WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
