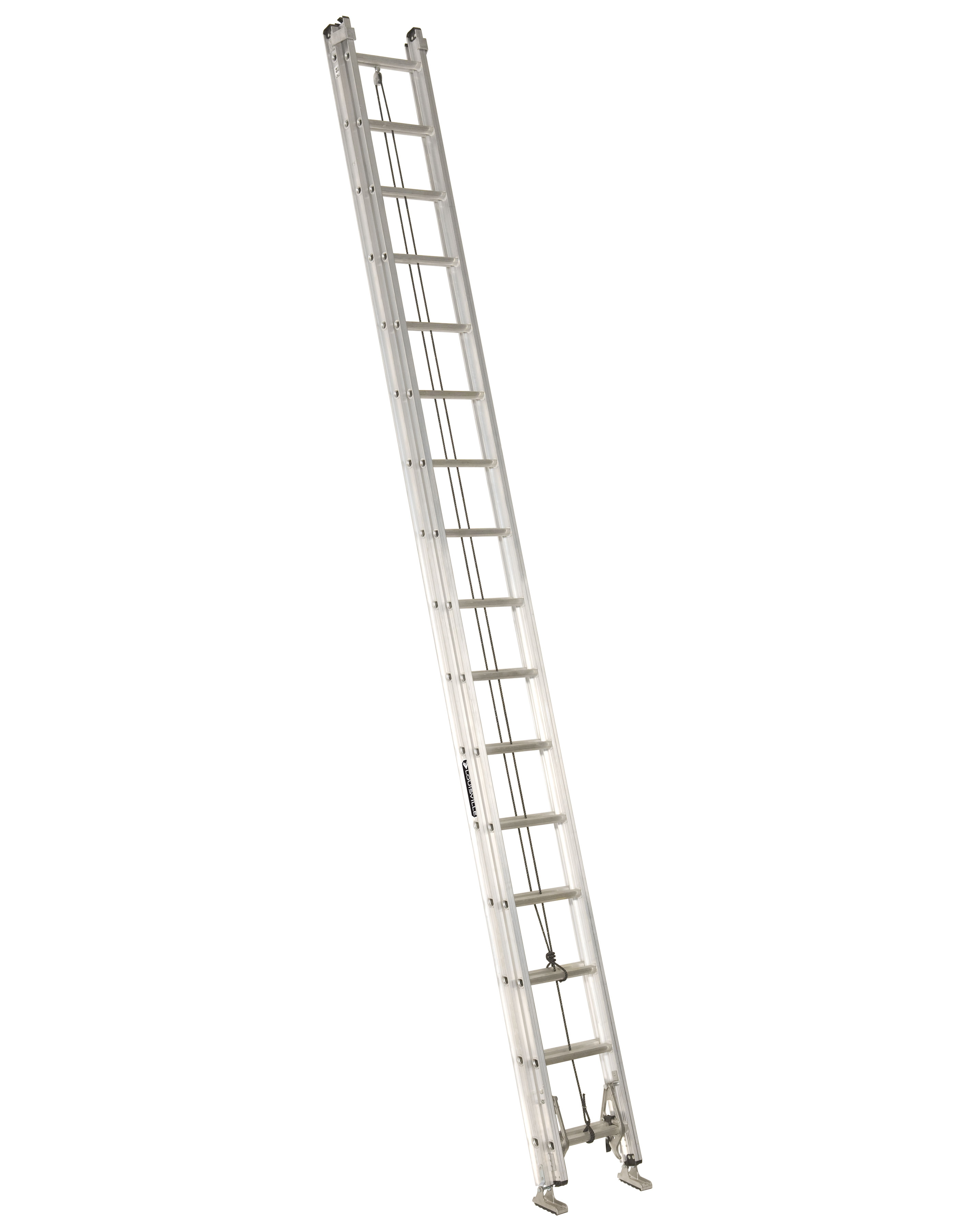

Louisville Ladder AE2232 300 lb Capacity 32 Foot Aluminum Extension Ladder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$520.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Louisville Ladder Company
Mfg Catalog # AE2232
North Coast Part # 1276171

Features

  • D-Shaped Rungs
  • Full I-beam
  • Mar-resistant Rail End Caps
  • Outside Slide Guides
  • Swivel Safety Shoes
  • Patented Quicklatch System
  • Includes Rope and Pulley

Specifications

  • Size: 32 ft
  • Material: Aluminum
  • Style: Multi-section
  • Load Capacity: 300 lbs
  • Duty Rating: Type IA

Other sizes available in this series

  • 16 ft
  • 20 ft
  • 24 ft
  • 28 ft
  • 32 ft
  • 36 ft
  • 40 ft

Dimensions

  • Style: Multi-section
  • Duty Rating: Type IA
  • Load Capacity: 300 lbs
  • Size: 32'
  • Number of Steps: 32
  • Rung Type: D rung
  • Step Depth: 1 1/2''
  • Material: Aluminium
  • Extension Height: 32'
  • Extended Length: 29'
  • Rail Depth: 3''
  • Stack Height: 5 1/4''
  • Base Width: 18''
  • Section Length: 16'
  • Max. Standing Height: 24' 8''
  • Max. Reach: 31' 3''
  • Weight: 60 lbs
  • Approx. Spread: 6 1/2''
  • Bottom Width: 17 4/5''
  • Closed Cubic Feet: 13 1/5"
  • Closed Height: 197 1/8''
  • Closed Depth: 6 1/2''
  • Closed Width: 17 4/5''

Related Products

  • AE2216
  • AE2220
  • AE2224
  • AE2228
  • AE2232
  • AE2236
  • AE2240

Overview

UPC 72886501521
Item Long Description This Louisville 32 foot aluminum industrial extension ladder has a 300 lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, mar-resistant rail end caps, rope and pulley, full I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE2232 aluminum extension ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.
Size 32 ft
Material Aluminum
Weight 60 lb
Style Multi-section
Standard ANSI A14.2,CSA,OSHA
Family Brand Name Louisville Ladder
Number of Steps 32
Rung Type D Rung
Duty Rating Type IA
Spread 6-1/2 in
Max Reach 31.25 ft
Max Standing Height 24.67 ft
Closed Width 17-4/5 in
Load Capacity 300 lb
Closed Depth 6-1/2 in
Extension Height 32 ft
Bottom Width 17-4/5 in
Step Depth 1-1/2 in
Closed Height 197-1/8 in
