L-VIL FM1110HD 10FT FBGL STP LADDERLIKELY SUBJECT TO TAX
Product image thumbnail 0
Product image thumbnail 1
$467.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Louisville Ladder Company
Mfg Catalog # FM1110HD
North Coast Part # 1100059

Features

  • SHOX with Superior Impact Absorption
  • Full Metal Boot
  • Inside Spreader Braces
  • Heavy Guauge Steel Hinges
  • Double-Rivet Step Construction with Heavy Duty Gusset Bracing
  • Reinforcement Plates

Specifications

  • Size: 10 ft
  • Material: Fiberglass
  • Style: Twin Front
  • Load Capacity: 375 lbs
  • Duty Rating: Type IAA

Other sizes available in this series

  • 4 ft
  • 6 ft
  • 8 ft
  • 10 ft
  • 12 ft

Dimensions

  • Style: Twin
  • Duty Rating: Type IAA
  • Load Capacity: 375 lbs
  • Size: 10'
  • Number of Steps: 9
  • Rung Type: Standard Step
  • Step Depth: 3''
  • Material: Fiberglass
  • Max. Standing Height: 7' 7''
  • Max. Reach: 14' 2''
  • Weight: 64 lbs
  • Approx. Spread: 83 1/4''
  • Bottom Width: 31 7/8''
  • Closed Cubic Feet: 20 2/9"
  • Closed Height: 121 3/4''
  • Closed Depth: 9''
  • Closed Width: 31 7/8''

Related Products

  • FM1104HD
  • FM1106HD
  • FM1108HD
  • FM1110HD
  • FM1112HD

Overview

UPC 72886506874

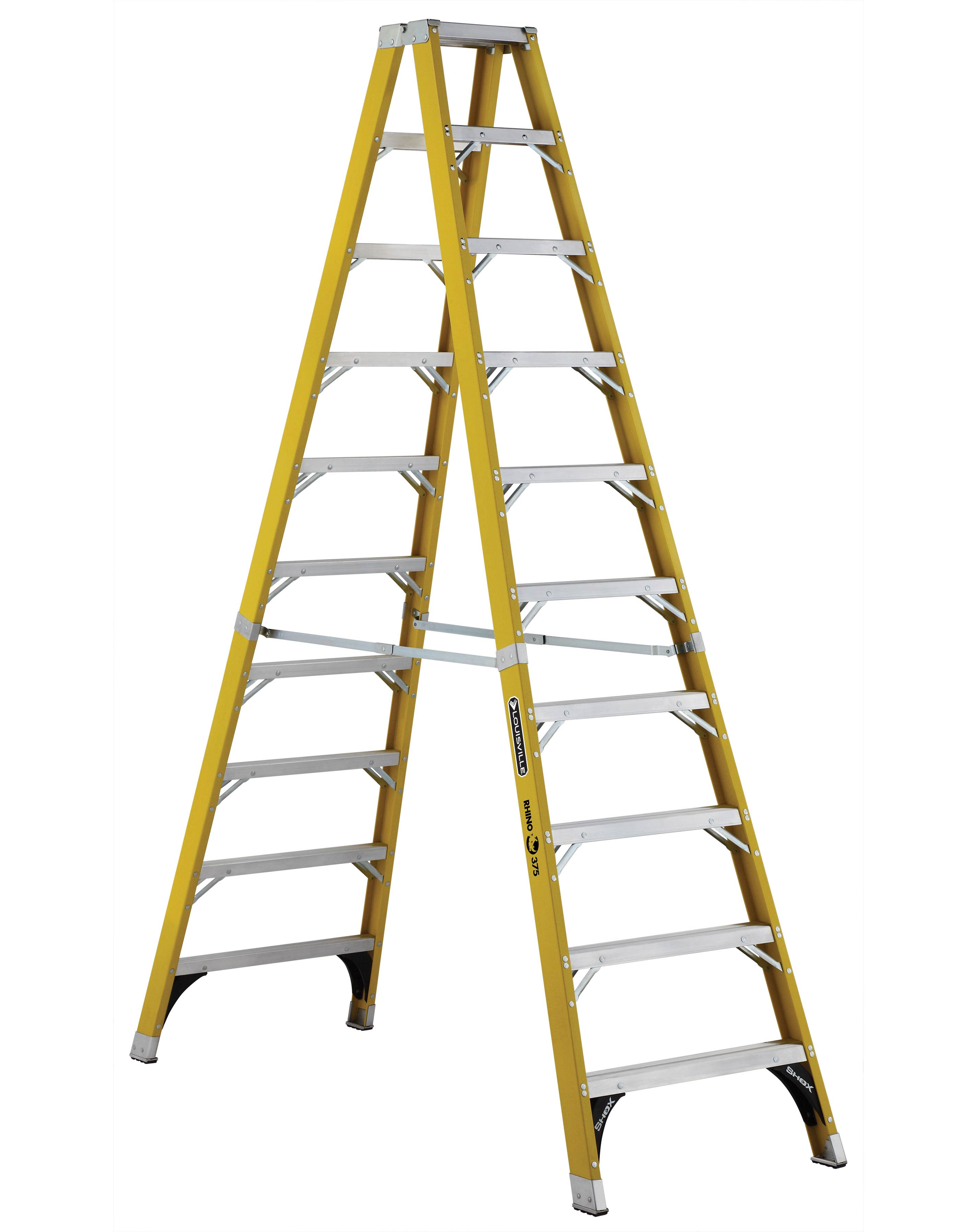

Item Long Description This Louisville 10 foot non-conductive fiberglass industrial twin front step ladder has a load capacity of 375lbs, rated ANSI Type IAA. This ladder is equipped with extra-heavy-duty full metal boots, SHOX impact absorption system, heavy-gauge steel hinges, double rivet step construction with heavy-duty gusset bracing, and inside wrap-around spreader braces. Twin front step ladders allow two users to work on the same ladder simultaneously to easily accomplish tasks that would be more difficult for a single person. The Louisville FM1110HD twin front step ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.
Size 10 ft
Material Fiberglass
Weight 64 lb
Style Twin,Twin Front
Family Brand Name Louisville Ladder
Number of Steps 9
Rung Type Standard Step
Duty Rating Type IAA
Spread 83-1/4 in
Max Reach 14.17 ft
Max Standing Height 7.58 ft
Closed Width 31-7/8 in
Load Capacity 375 lb
Closed Depth 9 in
Bottom Width 31-7/8 in
Step Depth 3 in
Closed Height 121-3/4 in
