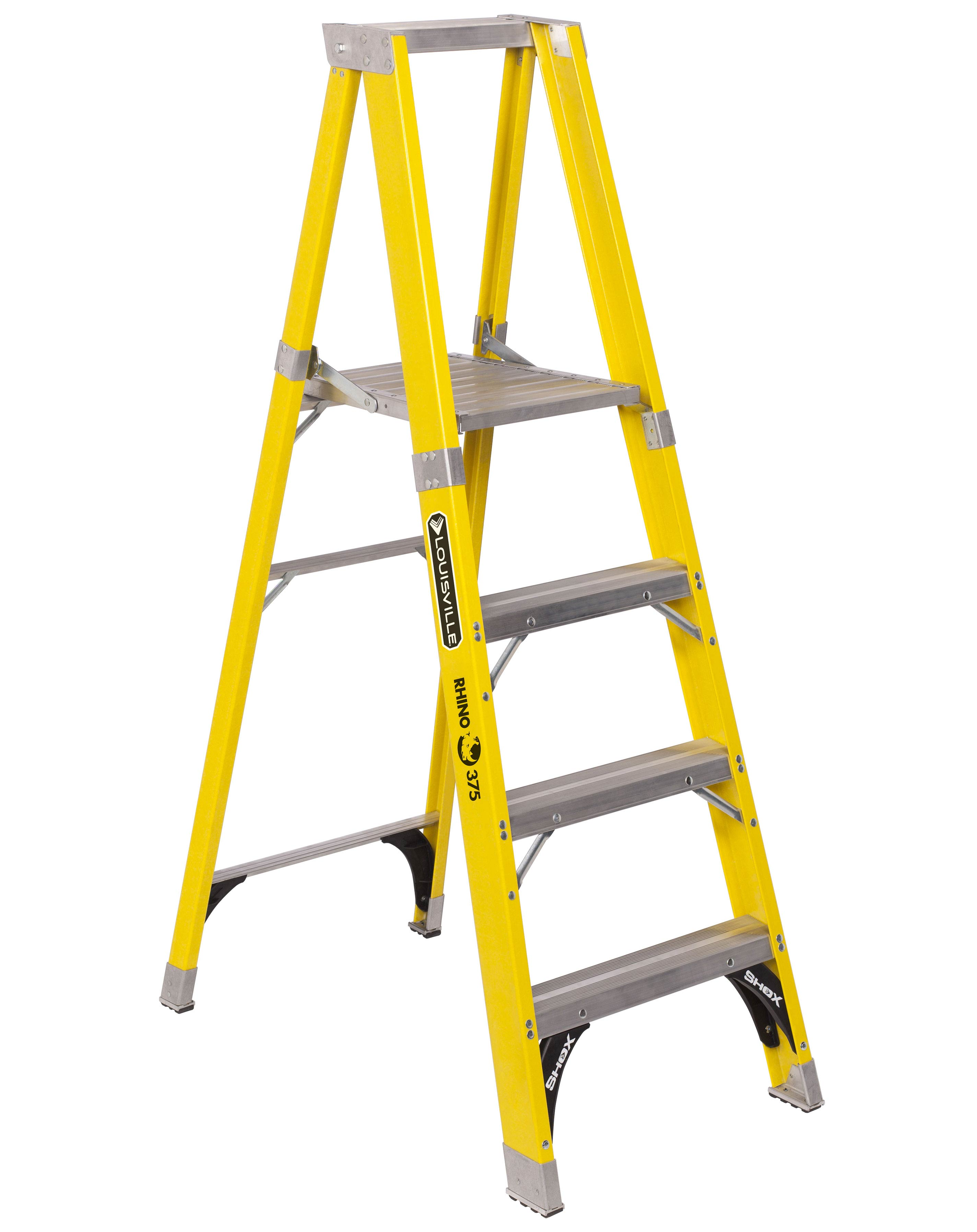

L-VIL FP1104HD 4FT FBGL STEP LADDER
Product image thumbnail 0
Product image thumbnail 1
$245.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Louisville Ladder Company
Mfg Catalog # FP1104HD
North Coast Part # 1016960

Features

  • SHOX with Superior Impact Absorption
  • Full Metal Boot
  • Top Rail Guard
  • Slim
  • Gapless Slip-resistant Platform
  • Double Rivet Step Construction
  • Heavy Duty Gusset Bracing

Specifications

  • Size: 4 ft
  • Material: Fiberglass
  • Style: Platform
  • Load Capacity: 375 lbs
  • Duty Rating: Type IAA

Other sizes available in this series

  • 4 ft
  • 6 ft
  • 8 ft
  • 10 ft
  • 12 ft

Dimensions

  • Style: Platform
  • Duty Rating: Type IAA
  • Load Capacity: 375 lbs
  • Size: 4'
  • Number of Steps: 4
  • Rung Type: Standard Step
  • Step Depth: 3''
  • Material: Fiberglass
  • Platform Length: 17''
  • Platform Width: 15''
  • Platform Back Width: 13''
  • Height to Platform: 3' 10''
  • Max. Standing Height: 3' 10''
  • Max. Reach: 10' 4''
  • Weight: 25 lbs
  • Approx. Spread: 40 1/8''
  • Bottom Width: 24 3/8''
  • Closed Cubic Feet: 5
  • Closed Height: 50 1/8''
  • Closed Depth: 7''
  • Closed Width: 24 3/8''

Related Products

  • FP1104HD
  • FP1106HD
  • FP1108HD
  • FP1110HD
  • FP1112HD

Overview

UPC 72886506877
Item Long Description A 4 foot non-conductive fiberglass industrial platform ladder capable of holding a load capacity of 375lbs. Equipped with SHOX impact system, full metal boot, top rail guard and a slip resistant platform.
Size 4 ft
Material Fiberglass
Weight 25 lb
Style Platform
Family Brand Name Louisville Ladder
Number of Steps 4
Rung Type Standard Step
Duty Rating Type IAA
Spread 40-1/8 in
Max Reach 10.33 ft
Max Standing Height 3.83 ft
Platform Length 17 in
Closed Width 24-3/8 in
Platform Width 15 in
Load Capacity 375 lb
Closed Depth 7 in
Bottom Width 24-3/8 in
Platform Height 3.83 ft
Step Depth 3 in
Closed Height 50-1/8 in
