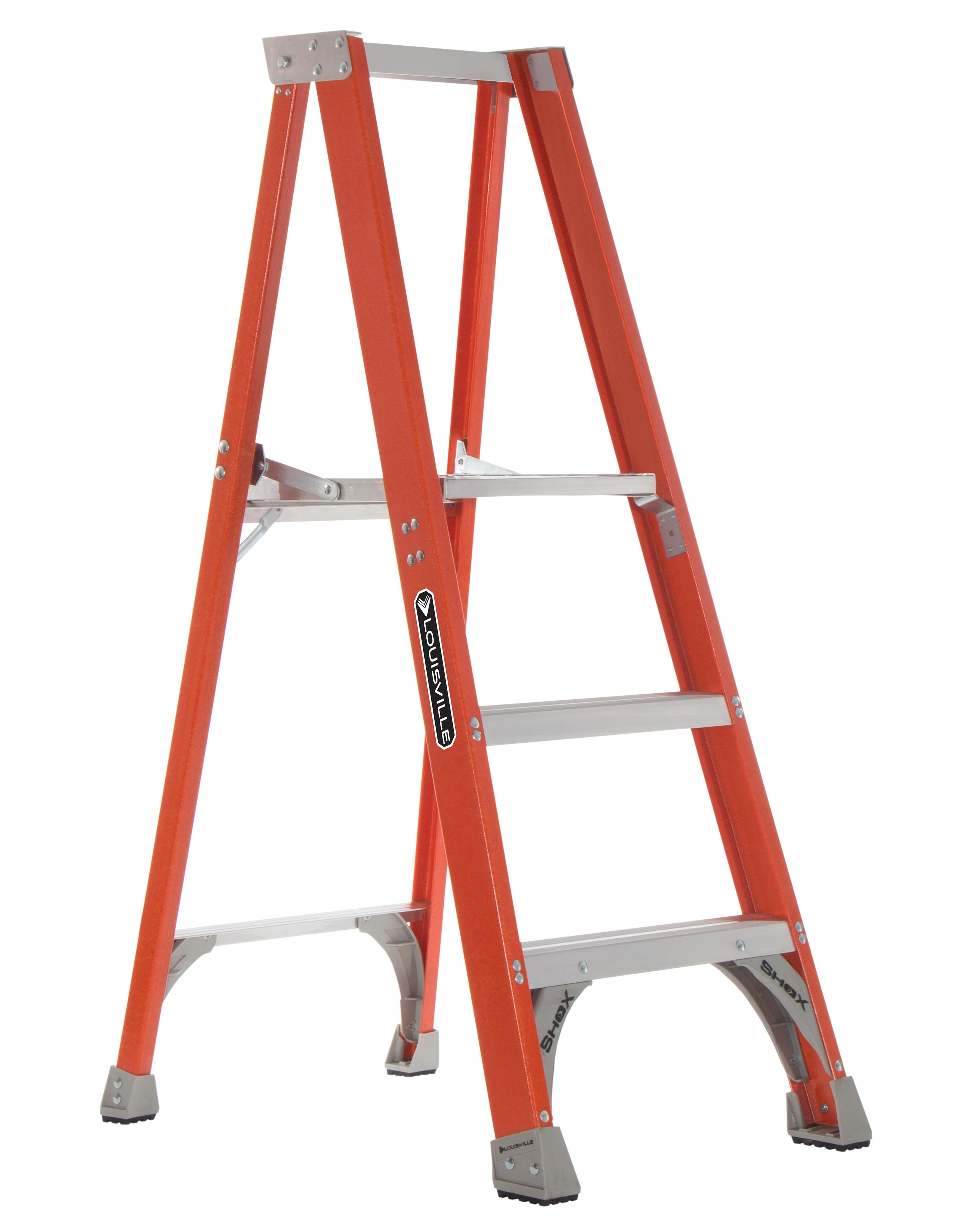

L-VIL FP1503 3FT FGL PLFRM LADDER
Product image thumbnail 0
Product image thumbnail 1
$173.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Louisville Ladder Company
Mfg Catalog # FP1503
North Coast Part # 1015305

Features

  • SHOX with Superior Impact Absorption
  • Da Boot Slip Resistant Boot
  • Slim

Specifications

  • Size: 3 ft
  • Material: Fiberglass
  • Style: Platform
  • Load Capacity: 300 lbs
  • Duty Rating: Type IA

Other sizes available in this series

  • 2 ft
  • 3 ft
  • 4 ft
  • 5 ft
  • 6 ft
  • 8 ft
  • 10 ft
  • 12 ft

Dimensions

  • Style: Platform
  • Duty Rating: Type IA
  • Load Capacity: 300 lbs
  • Size: 3'
  • Number of Steps: 3
  • Rung Type: Standard Step
  • Step Depth: 3''
  • Material: Fiberglass
  • Platform Length: 17''
  • Platform Width: 15''
  • Platform Back Width: 13''
  • Height to Platform: 2' 10''
  • Max. Standing Height: 2' 10''
  • Max. Reach: 9' 4''
  • Weight: 19 lbs
  • Approx. Spread: 34 1/4''
  • Bottom Width: 23 3/8''
  • Closed Cubic Feet: 5 1/7"
  • Closed Height: 59 5/8''
  • Closed Depth: 6 3/8''
  • Closed Width: 23 3/8''

Related Products

  • FP1502
  • FP1503
  • FP1504
  • FP1505
  • FP1506
  • FP1508
  • FP1510
  • FP1512

Categories

Overview

UPC 72886508871
Item Long Description This Louisville 3 foot industrial platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a slim, gapless slip-resistant platform with a top rail guard. This ladder is equipped with SHOX impact absorption system, DaBoot with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, and double-rivet step construction. The Louisville FP1503 platform step ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.
Size 3 ft
Type Extra Heavy Duty
Material Fiberglass
Weight 19 lb
Style Platform
Family Brand Name Louisville Ladder
Number of Steps 3
Rung Type Standard Step
Duty Rating Type IA
Spread 34-1/4 in
Max Reach 9.33 ft
Max Standing Height 2.83 ft
Platform Length 17 in
Closed Width 23-3/8 in
Platform Width 13 in
Load Capacity 300 lb
Closed Depth 6-3/8 in
Bottom Width 23-3/8 in
Platform Height 2 ft 10 in
Step Depth 3 in
Closed Height 3 ft
