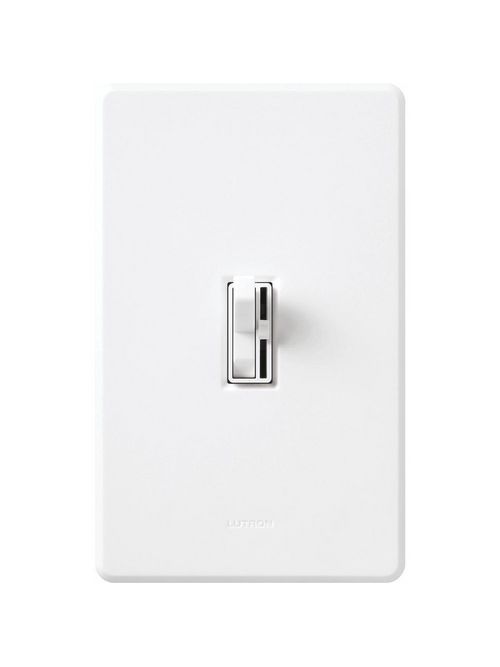

Lutron AYCL-153PH-WH Ariadni CFL/LED Dimmer
$29.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # AYCL-153PH-WH
North Coast Part # 758659

Features

  • Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Toggle turn lights on/off
  • Slide up to brighten, down to dim
  • Provides reliable dimming of dimmable LEDs/CFLs as well as halogens and incandescents.

Specifications

  • Wattage: 600 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Ariadni
  • Insulation: Plastic
  • Actuator: Toggle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Connection: Screw terminals
  • Application: Lighting Control
  • Standard: UL1472 CSA C22.2 184.1, NOM
  • Size: 2.86 in (73 mm) x 4.60 in (117 mm)
  • Environmental Conditions: Indoor use only
  • Pack Description: Clamshell
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 1.87 IN
  • Width Imperial: 3.92 IN
  • Height Imperial: 5.81 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Preset dimmer, 3-way/single-pole, clamshell packaging
  • Country of Origin: MX

Overview

UPC 02755782600
GTiN 00027557826006
Size 2.86 in (73 mm) x 4.60 in (117 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-way/single-pole,Clamshell Packaging,Preset Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard NOM,UL1472 CSA C22.2 184.1
Frequency 60 Hz
Connection Type Screw-Type Terminals
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Screw terminals
Actuator Toggle Switch
Environmental Conditions Indoor Use Only
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Ariadni
