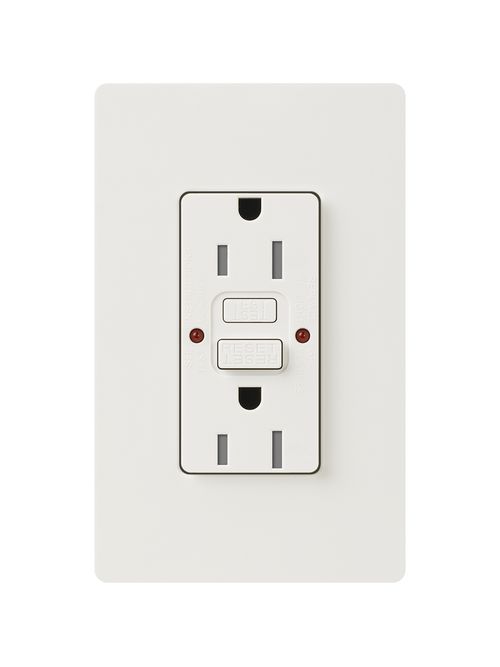

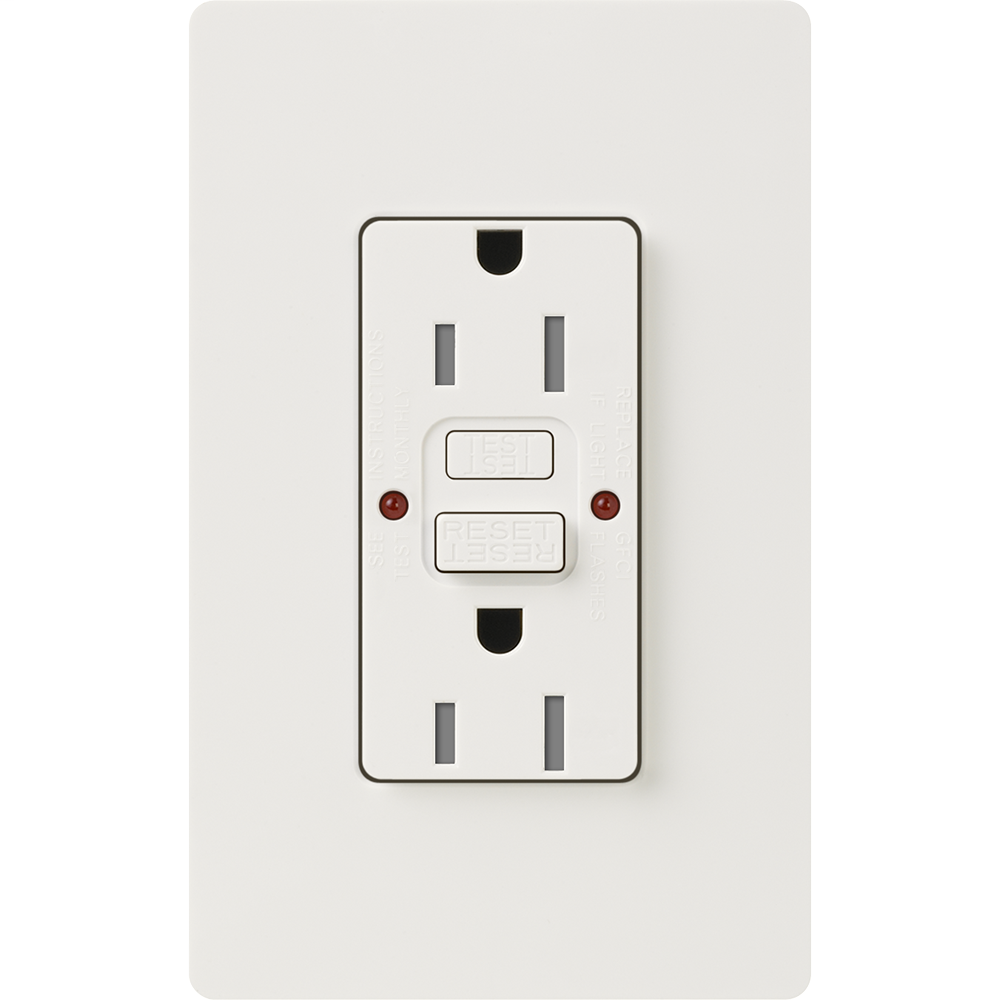

CA 15A GFCI SELF TESTING RECEPTACLE WH
Product image thumbnail 0
Product image thumbnail 1
$71.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # CAR-15-GFST-WH
North Coast Part # 1166371

Features

  • Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
  • LEDs indicate status of GFCI protection function
  • Press reset button to reset GFCI after circuit interruption
  • Wallplate sold separately.

Specifications

  • Color: White (WH)
  • Wattage: 1875 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • NEMA Rating: 5-15R
  • Number Of Poles: 2
  • Insulation: Plastic
  • Sub Brand: Designer
  • Amperage Rating: 15 A
  • Type: GFCI receptacle
  • Voltage Rating: 125 V
  • Number Of Wires: 3,4,5
  • Material: Plastic/Metal
  • Wire Size: 10 to 14 AWG
  • Connection: Screw terminal
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.3 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Standard: UL, CSA, NOM, NEC, CEC, OSHA
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Temperature Rating: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing
  • Country of Origin: CN

Overview

UPC 78427615957
GTiN 00784276159579
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color White
Voltage 125 Volt
Type GFCI Receptacle
Material Metal/Plastic
Mounting Type Wall Box
Country of Origin China
Wire Size 14-10 AWG
Standard CEC,CSA,NEC,NOM,OSHA,UL
Connection Type Screw-Type Terminals
Wattage 1875 Watt
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Insulation Material Plastic
NEMA 5-15R
TC Connection Screw terminal
Amperage 15 Amp
Environmental Conditions 0 - 90% Relative Humidity
Number of Poles 2 Pole
Number of Wires 3 - 5
Sub Brand Designer
Conductor Size 14-10 AWG
Blade Dimensions 4.69 in x 2.94 in
