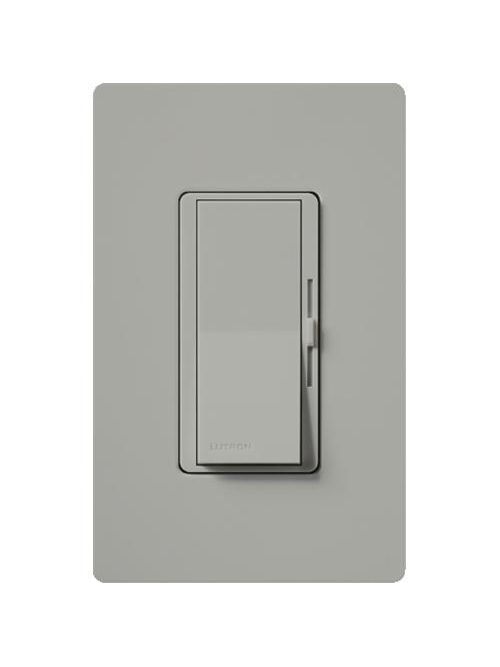

Lutron Electronics DVCL-153P-GR 150 W 120 Volt Gray Dimmable 1-Pole/3-Way Compact Fluorescent/LED Wall Dimmer
$37.09/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVCL-153P-GR
North Coast Part # 681106

Features

  • Controls 150 W dimmable LED/CFL (screw-base), 600 W incandescent, or halogen loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Specifications

  • Wattage: 600 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Type: Dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Environmental Conditions: Indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: MX

Overview

UPC 02755700302
GTiN 00027557003025
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Gray
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way, 1-Pole
Material Metal,Plastic
Terminal Type Wire Lead
Applications Lighting Control
Mounting Type Wall Box
Country of Origin Mexico
Standard CSA,UL,NOM
Frequency 60 Hz
Connection Type Wire Leads
Wattage 600 Watt
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Insulation Material Plastic
Lamp Type CFL/LED
Power Rating 600 W
TC Connection Wire Leads
Actuator Paddle Switch
Max Wattage 600 W
Blade Dimensions 75 mm W x 119 mm H
Environmental Conditions Indoor Use Only
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Dimmable CFLs,Halogens,Dimmable LEDs,Incandescents
Sub Brand Diva
