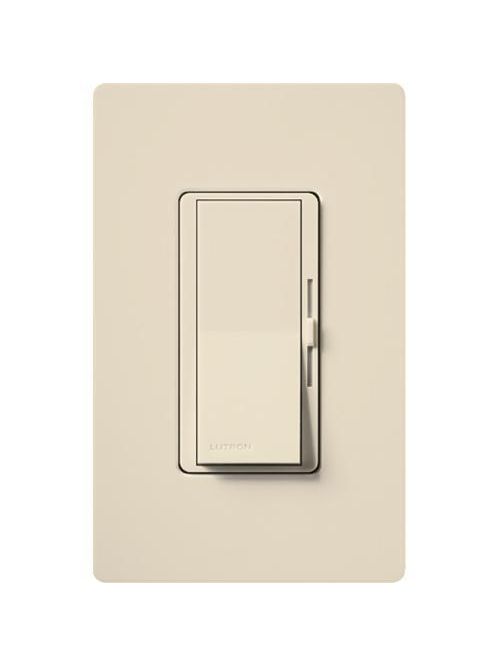

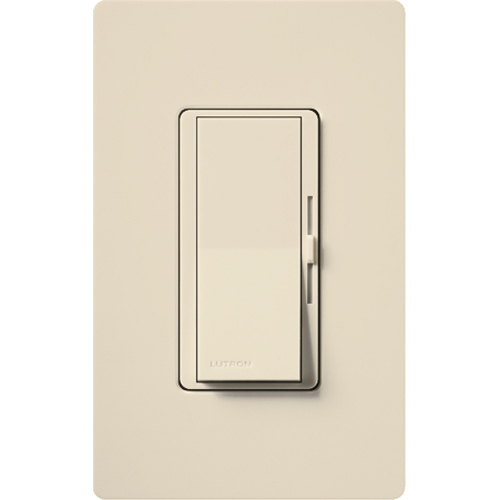

Lutron DVCL-153P-LA 150 W 120 VAC Light Almond Dimmable Compact Fluorescent/LED 1-Pole/3-Way Wall Dimmer
Product image thumbnail 0
Product image thumbnail 1
$38.29/ea
In Stock | 153 available at 19 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVCL-153P-LA
North Coast Part # 664104

Features

  • Controls 150 W dimmable LED/CFL (screw-base), 600 W incandescent, or halogen loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Specifications

  • Wattage: 600 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Type: Dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Environmental Conditions: Indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: MX

Overview

UPC 02755700304
GTiN 00027557003049
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Light Almond
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way, 1-Pole
Material Metal,Plastic
Terminal Type Wire Lead
Applications Lighting Control
Mounting Type Wall Box, Flush, Snapper
Country of Origin Mexico
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Leads
Wattage 600 Watt
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Insulation Material Plastic
Lamp Type CFL/LED
Power Rating 600 W
TC Connection Wire Leads
Actuator Paddle Switch
Max Wattage 150 W
Blade Dimensions 75 mm W x 40.6 mm D x 119 mm H
Environmental Conditions Indoor Use Only
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Halogens,Dimmable LEDs,Incandescents,Dimmable CFLs
Sub Brand Diva
